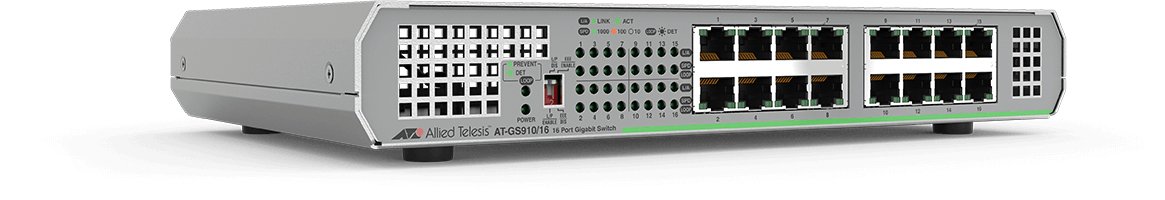

Name: Allied Telesis GS910/16 Unmanaged Gigabit Ethernet (10/100/1000) Grey AT-GS910/16-10
Brand: Allied Telesis
SKU: AT-GS910/16-10
Price: 293.53 CAD
Availability: InStock

888-370-2261 info@itlogixs.ca 157 Edith Way NW, Calgary, AB, T3R 2B8

Home /Networking & Communications /Network Switches /Allied Telesis GS910/16 Unmanaged Gigabit Ethernet (10/100/1000) Grey

Product Details

Gigabit Ethernet Unmanaged Switch

The Allied Telesis GS910 Series offers unmanaged Gigabit switching solutions for the desktop, and small networks. With minimal to no set-up, GS910 Series switches provide simple and seamless connectivity to existing network infrastructure.

Product Specifications

Manufacturer	Allied Telesis
Manufacturer Part Number	AT-GS910/16-10
GTIN / Barcode	0767035207483
Brand Name	Allied Telesis
Product Name	Allied Telesis GS910/16 Unmanaged Gigabit Ethernet (10/100/1000) Grey

Management features
Mfr. Part Number	AT-GS910/16-10
GTIN / Barcode	0767035207483
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Cable length detection	Yes
Data transmission
Switching capacity	32 Gbit/s
Throughput	23.8 Mpps
MAC address table	8000 entries
Jumbo frames support	Yes
Jumbo frames	10000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet buffer memory	0.524 MB
Security
Security algorithms	EAP
Loop protection	Yes
BPDU tunneling	Yes
Design
Rack mounting	No
Product colour	Grey
LED indicators	Yes
Safety	UL60950-1, 2nd Edition, CSA C22.2 No.60950-1-07, 2nd Edition, IEC60950-1(UL-EU, UL-CB)
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.3 A
Power consumption (max)	12 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Weight & dimensions
Width	263 mm
Depth	179 mm
Height	38 mm
Weight	1.5 kg
Certificates
Certification	EAC, EN55024, ICES Class A, VCCI Class A, FCC Class A, RCM, CE, EN55022, CISPR 55022
Brand	Allied Telesis
Availability	In Stock
Price Currency	CAD
Category	Network Switches
