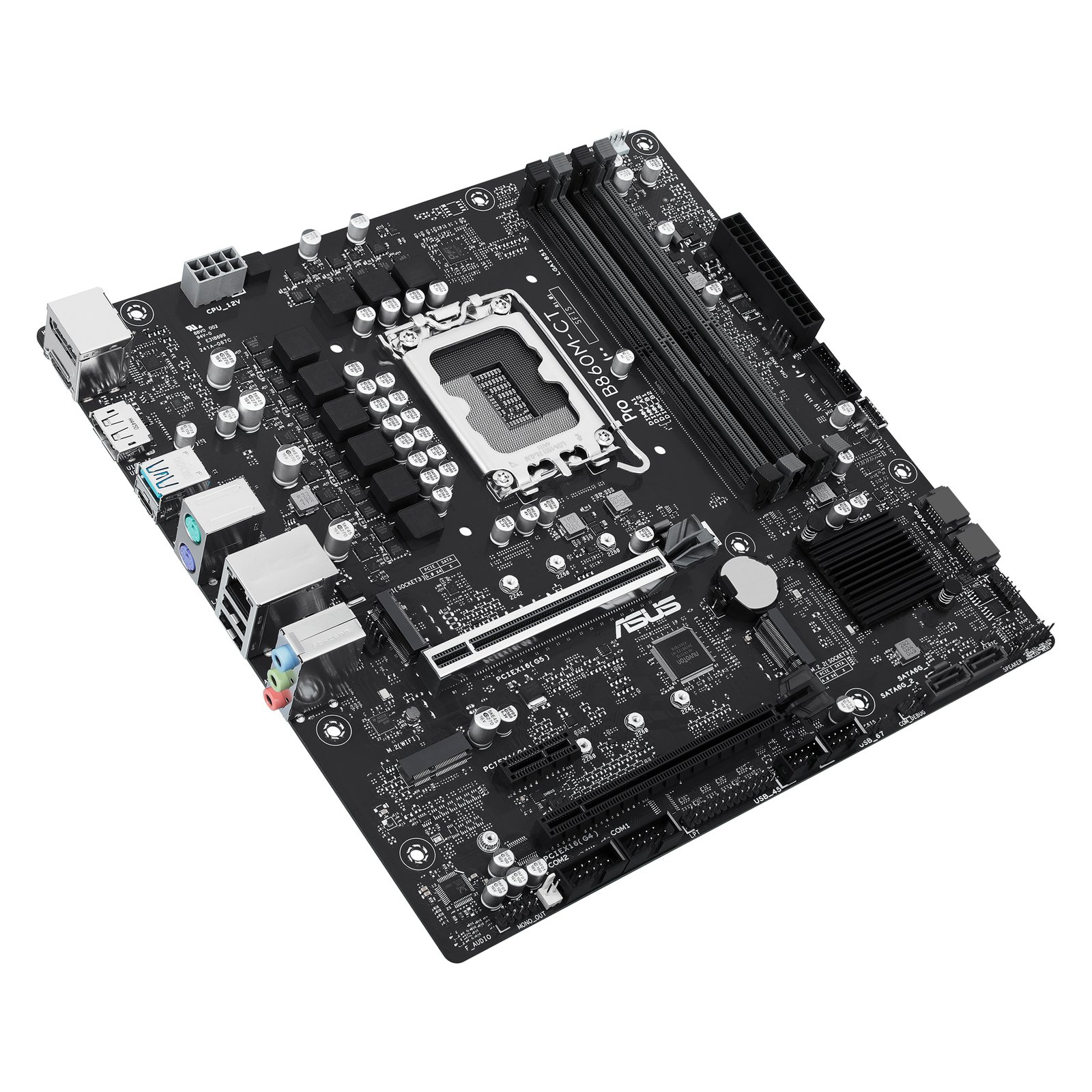

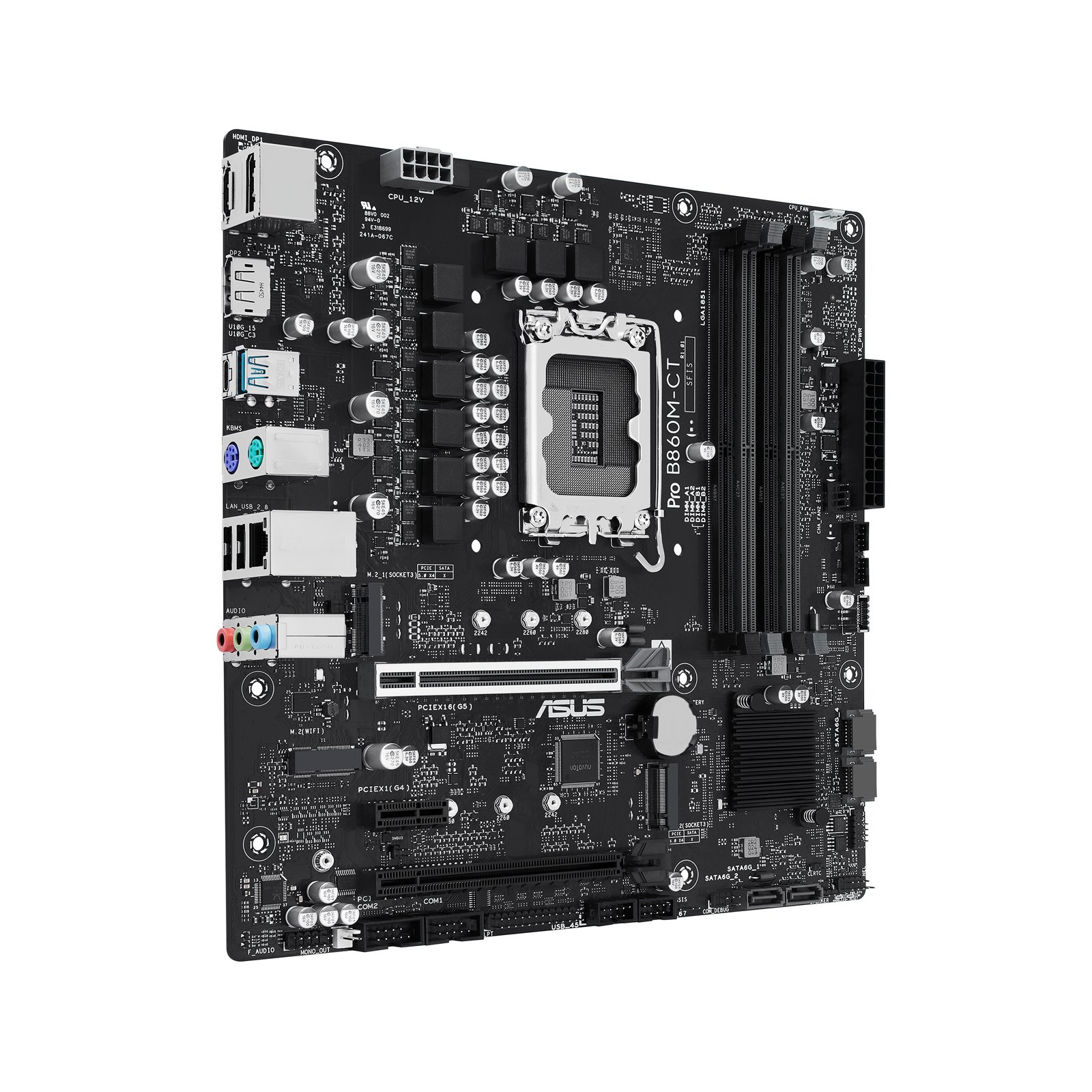

Name: ASUS PRO B860M-CT-CSM Intel B860 LGA 1851 (Socket V1) micro ATX
Brand: ASUS
SKU: PRO B860M-CT-CSM
Price: 250.91 CAD
Availability: InStock

888-370-2261 info@itlogixs.ca 157 Edith Way NW, Calgary, AB, T3R 2B8

Home /Computers & IT Hardware /Memory & Components /ASUS PRO B860M-CT-CSM Intel B860 LGA 1851 (Socket V1) micro ATX

Product Details

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

Product Specifications

Manufacturer	ASUS
Manufacturer Part Number	PRO B860M-CT-CSM
GTIN / Barcode	4711636107181
Brand Name	ASUS
Product Name	ASUS PRO B860M-CT-CSM Intel B860 LGA 1851 (Socket V1) micro ATX

Processor
Mfr. Part Number	PRO B860M-CT-CSM
GTIN / Barcode	4711636107181
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Memory
Supported memory types	DDR5-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Maximum internal memory	256 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	6
RAID support	Yes
RAID levels	0, 1, 5, 10
Graphics
Parallel processing technology support	Not supported
Internal I/O
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Audio connector	Yes
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Number of CPU fan connectors	1
Number of chassis fan connectors	2
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of COM connectors	2
12V power connector	Yes
Rear panel I/O ports
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	2
HDMI ports quantity	1
DisplayPorts quantity	2
Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Wi-Fi	No
Features
Motherboard chipset	Intel B860
Audio output channels	7.1 channels
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	2
1st M.2 largest key size	2280
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Packaging data
Package width	270 mm
Package depth	263 mm
Package height	51.5 mm
Package weight	889 g
Weight & dimensions
Width	244 mm
Depth	244 mm
Packaging content
Cables included	SATA
Screws included	Yes
Brand	ASUS
Availability	In Stock
Price Currency	CAD
Category	Memory & Components
