ATEN
ATEN 1U Short Depth USB VGA Single Rail LCD CL3100NX
CA$1,187.99
Save 5%
CA$1,131.36
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details

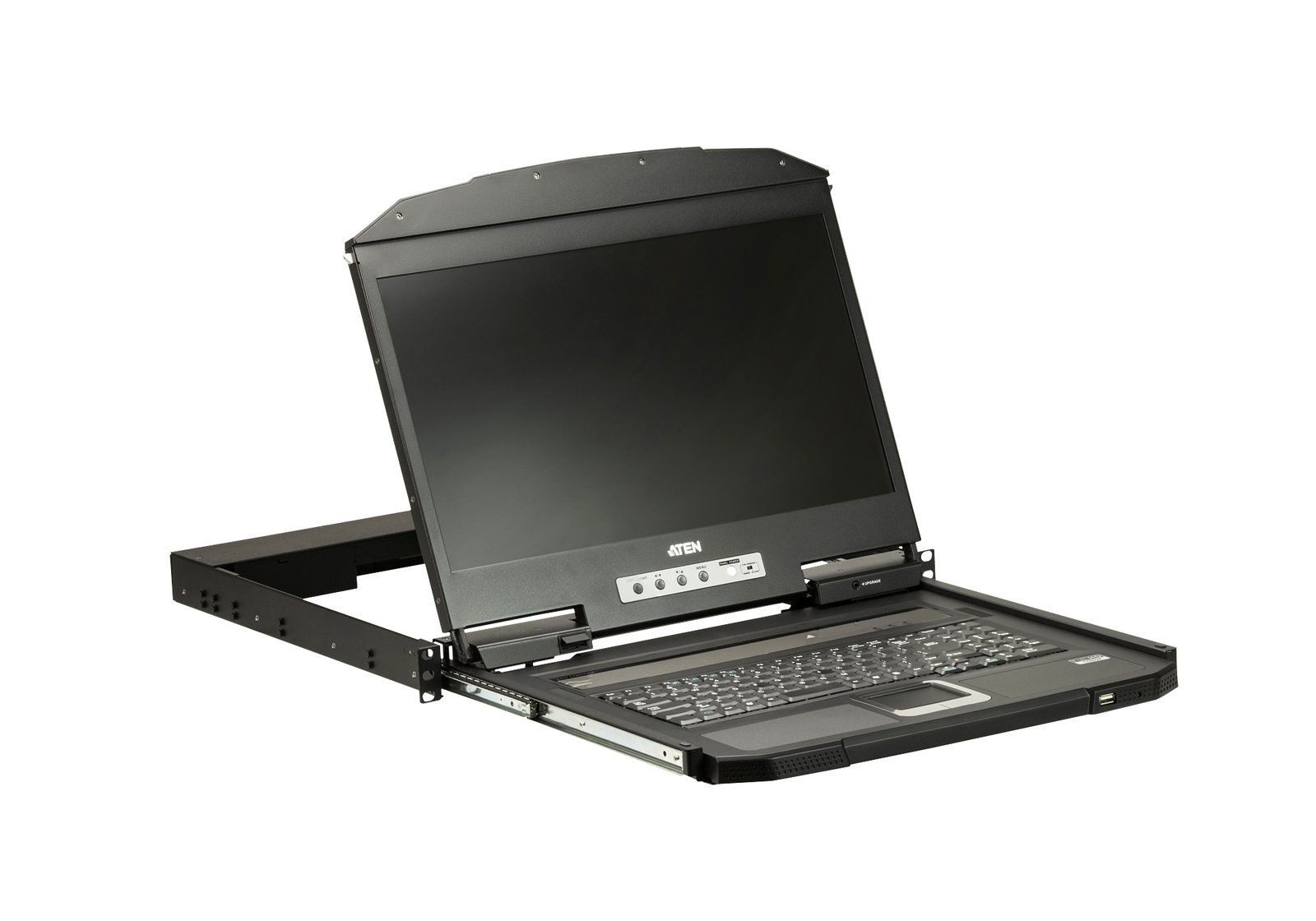

The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
1x CL3100 LCD KVM Console with Standard Rack Mount Kit
1x LIN5-23X5-X1BG USB VGA KVM Cable (VGA, USB, Audio; 1.8 m/6 ft)
1x LIN5-04A2-J15G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
1x CL3100 LCD KVM Console with Standard Rack Mount Kit
1x LIN5-23X5-X1BG USB VGA KVM Cable (VGA, USB, Audio; 1.8 m/6 ft)
1x LIN5-04A2-J15G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
Product Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | CL3100NX |
| GTIN / Barcode | 4719264646812 |
| Brand Name | ATEN |
| Product Name | ATEN 1U Short Depth USB VGA Single Rail LCD |
| Mfr. Part Number | CL3100NX |
|---|---|
| GTIN / Barcode | 4719264646812 |
| Display | |
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| Display | TFT-LCD |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.3 x 0.3 mm |
| Aspect ratio | 16:9 |
| Display type | LCD |
| Response time | 5 ms |
| Display number of colours | 16.78 million colours |
| Technical details | |
| Material | Metal, Plastic |
| Product colour | Black |
| Hot-Plug support | Yes |
| Operating relative humidity (H-H) | 0 - 80% |
| Built-in KVM switch | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Rack mounting | Yes |
| Key lock | Yes |
| Number of computers controlled | 1 |
| On/off switch | Yes |
| LED indicators | Yes |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| Ports & interfaces | |
| I/O ports | 3.5 mm Audio Jack, SPHD |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| USB 2.0 Type-A ports quantity | 3 |
| Keyboard | |
| Keyboard number of keys | 105 |
| Built-in touchpad | Yes |
| Keyboard language | US English |
| Keyboard layout | QWERTY |
| Hot keys | Yes |
| Certificates | |
| Certification | UL 60950-1, CAN/CSA |
| Power | |
| Power supply type | AC |
| Power consumption (typical) | 14.1 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 477 mm |
| Height | 42.8 mm |
| Depth | 480.6 mm |
| Weight | 10.2 kg |
| Packaging data | |
| Package weight | 12.1 kg |
| Package width | 612 mm |
| Package depth | 658 mm |
| Package height | 135 mm |
| Packaging content | |
| Cables included | AC, KVM |
| Manual | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Logistics data | |
| Master (outer) case net weight | 10.2 kg |
| Master (outer) case width | 612 mm |
| Master (outer) case length | 658 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 12.1 kg |
| Products per master (outer) case | 1 pc(s) |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Monitors & Displays |
