Product Details

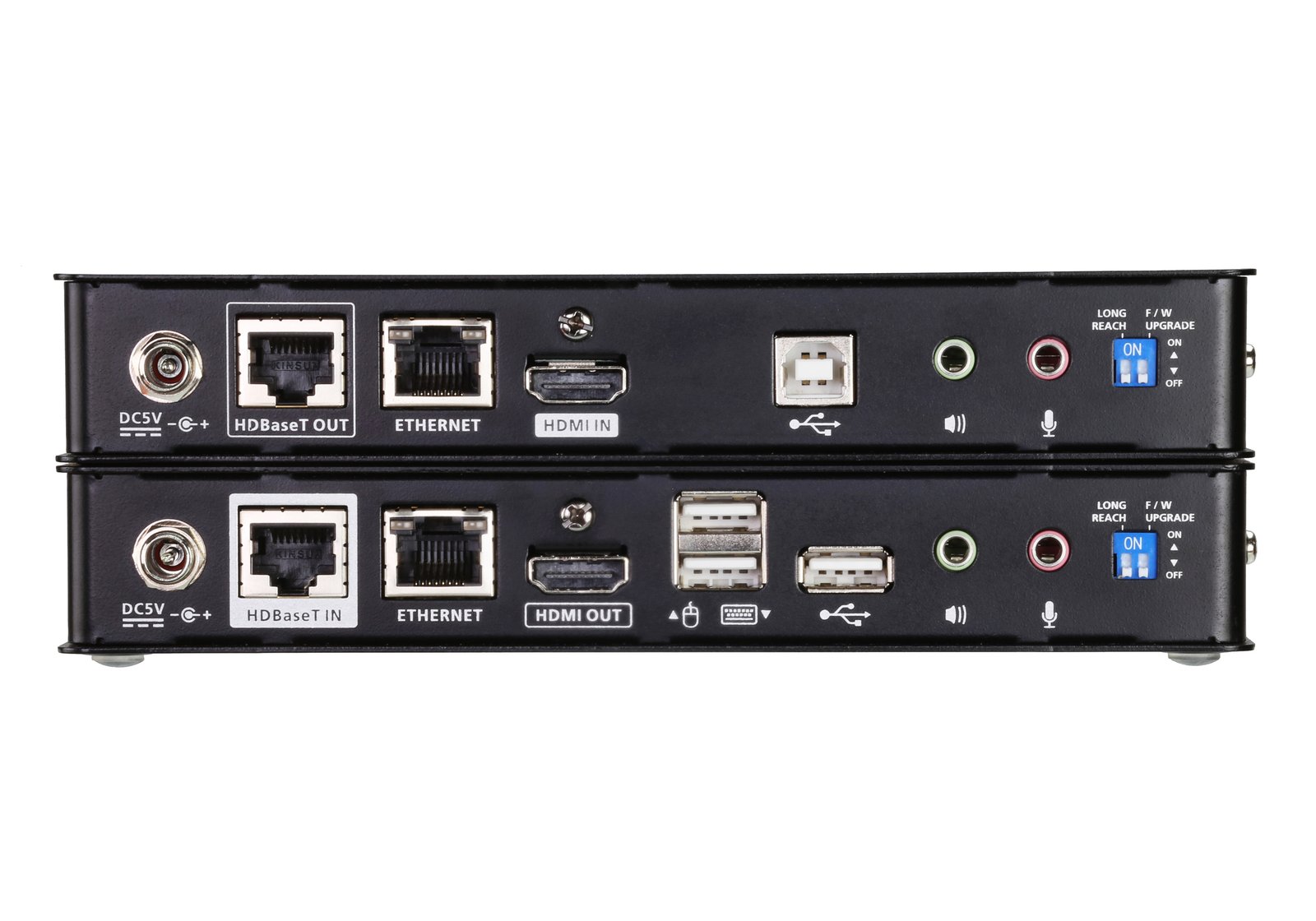

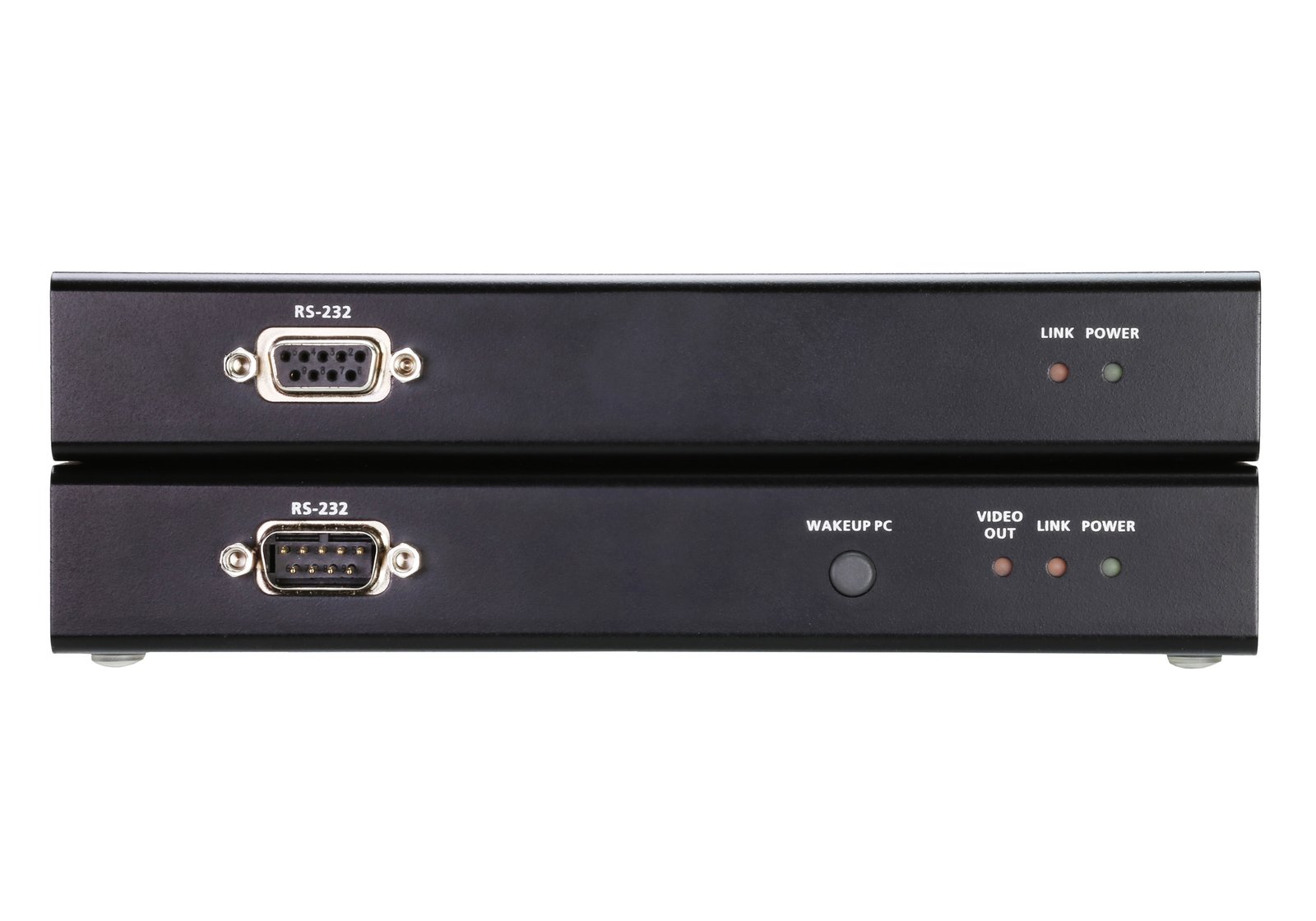

The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet*, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
* Note: The CE820-AT supports Ethernet function and the CE820-ATA does not.
* Note: The CE820-AT supports Ethernet function and the CE820-ATA does not.
Product Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | CE820 |
| GTIN / Barcode | 0672792013652 |
| Brand Name | ATEN |
| Product Name | ATEN CE820 KVM extender Transmitter & receiver |
| Mfr. Part Number | CE820 |
|---|---|
| GTIN / Barcode | 0672792013652 |
| Features | |
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Rack mounting | Yes |
| Maximum digital resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Material | Metal |
| LED indicators | Link, Power, Video |
| Transmitter | |
| Transmitter video port type | HDMI |
| Transmitter local video port | Yes |
| Transmitter local video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 4 |
| Power | |
| AC adapter output voltage | 5 V |
| Power consumption (transmitter) (max) | 2.87 W |
| Power consumption (receiver) (max) | 5.37 W |
| Weight & dimensions | |
| Transmitter width | 18.2 cm |
| Transmitter depth | 12.2 cm |
| Transmitter height | 2.87 cm |
| Transmitter weight | 630 g |
| Receiver width | 18.2 cm |
| Receiver depth | 12.2 cm |
| Receiver height | 2.87 cm |
| Receiver weight | 650 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Cables & Connectivity |
