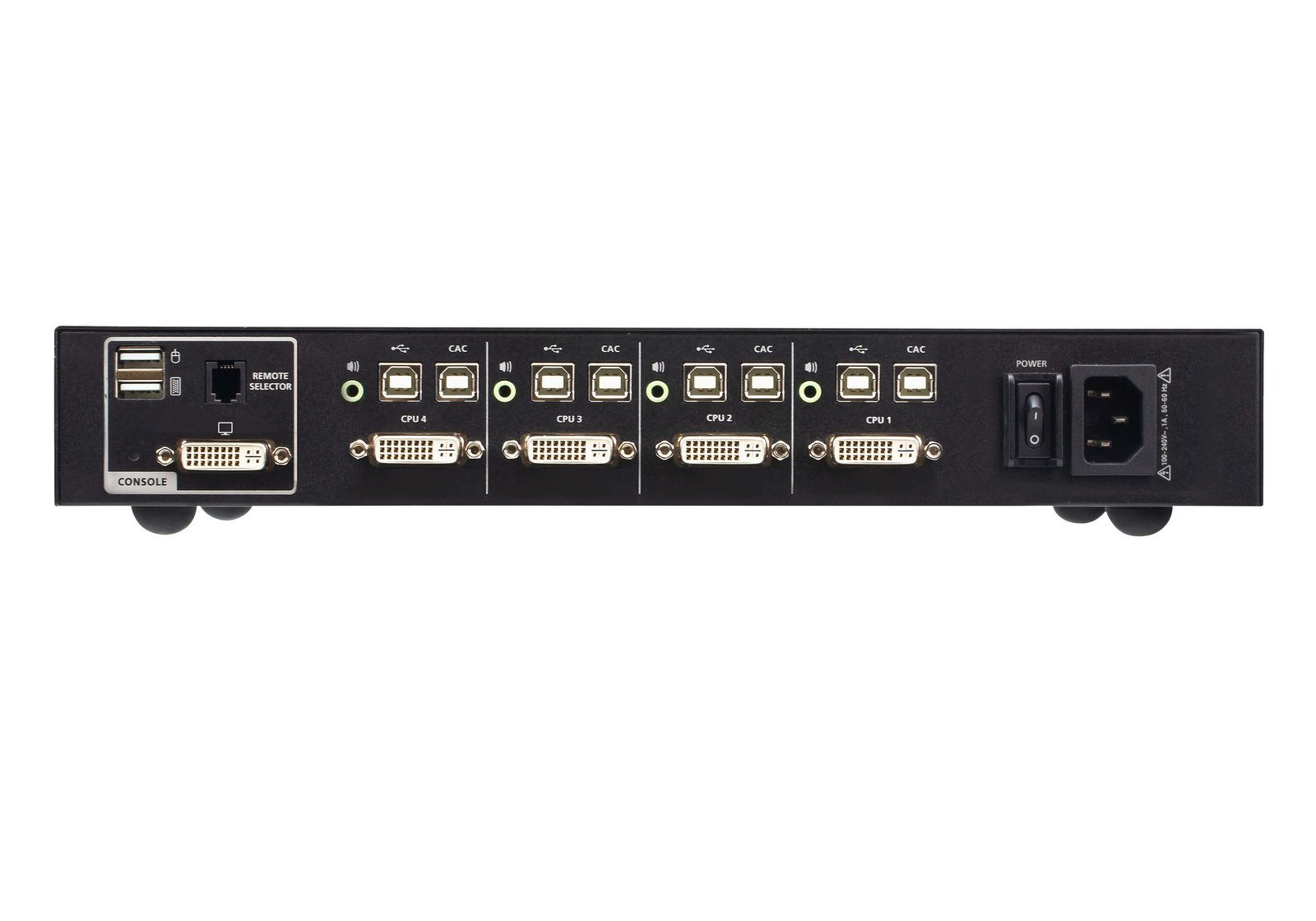

ATEN CS1184D4C KVM switch Rack mounting Black
Product details

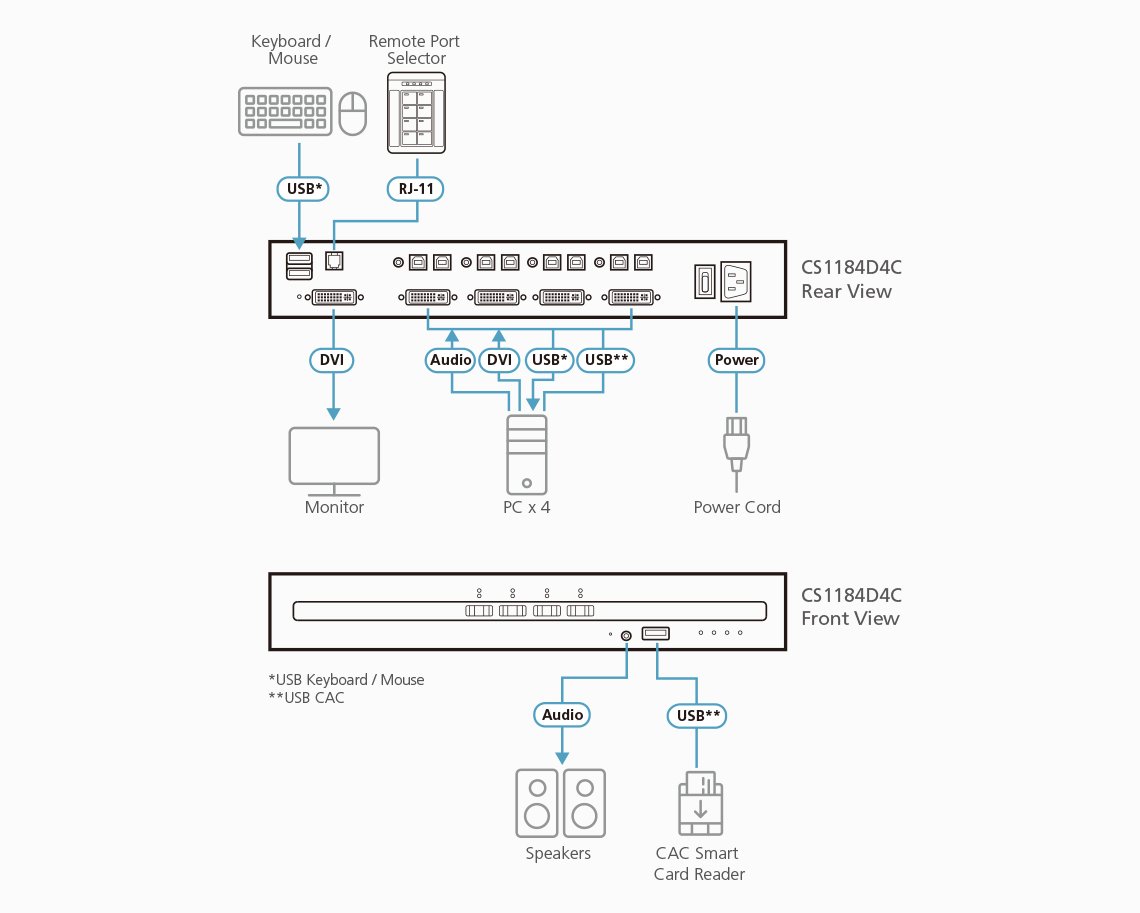

ATEN PSD PP v4.0 Secure KVM Switch CS1184D4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1184D4C only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1. With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1184D4C ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.
Note: 1. The Remote Port Selector is not supplied in the package and requires a separate purchase.
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | CS1184D4C |
| Brand Name | ATEN |
| Product Name | ATEN CS1184D4C KVM switch Rack mounting Black |
| Mfr. Part Number | CS1184D4C |
|---|---|
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 4 |
| USB 2.0 Type-B ports quantity | 8 |
| Console ports | DVI-I, USB A |
| Console USB ports quantity | 2 |
| Console DVI-I ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 5 |
| RJ-11 ports quantity | 1 |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Wired remote switch | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 8.9 W |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 335 mm |
| Depth | 163.9 mm |
| Height | 44 mm |
| Weight | 1.8 kg |
| Packaging content | |
| Cables included | AC |
| Quick installation guide | Yes |
| Manual | Yes |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Network Switches |
