ATEN
ATEN CS1762A KVM switch Black
CA$297.99
Save 5%
CA$283.73
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details

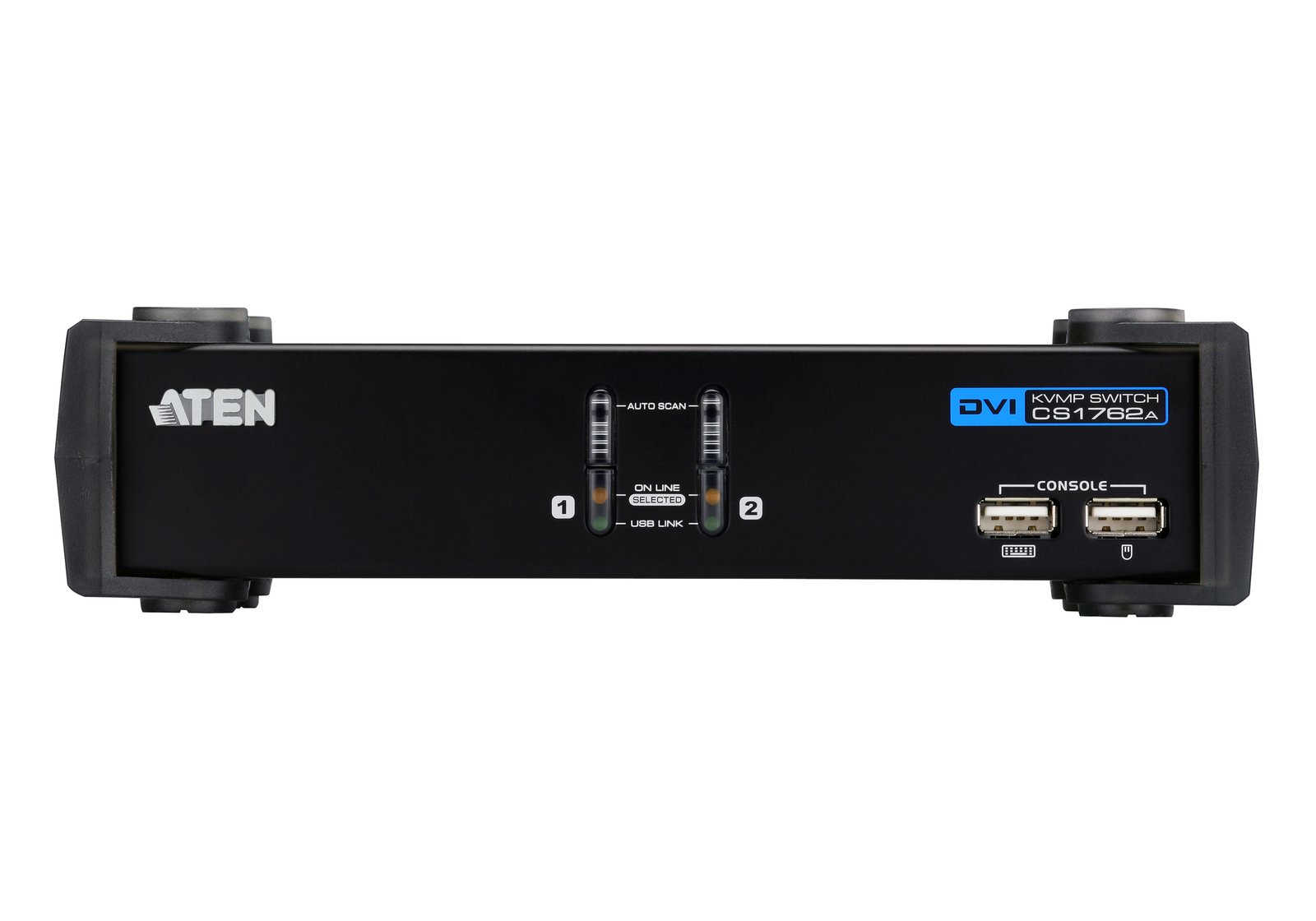

The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1762A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
In addition, the CS1762A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
Product Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | CS1762A |
| GTIN / Barcode | 0672792002199 |
| Brand Name | ATEN |
| Product Name | ATEN CS1762A KVM switch Black |
| Mfr. Part Number | CS1762A |
|---|---|
| GTIN / Barcode | 0672792002199 |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 1 |

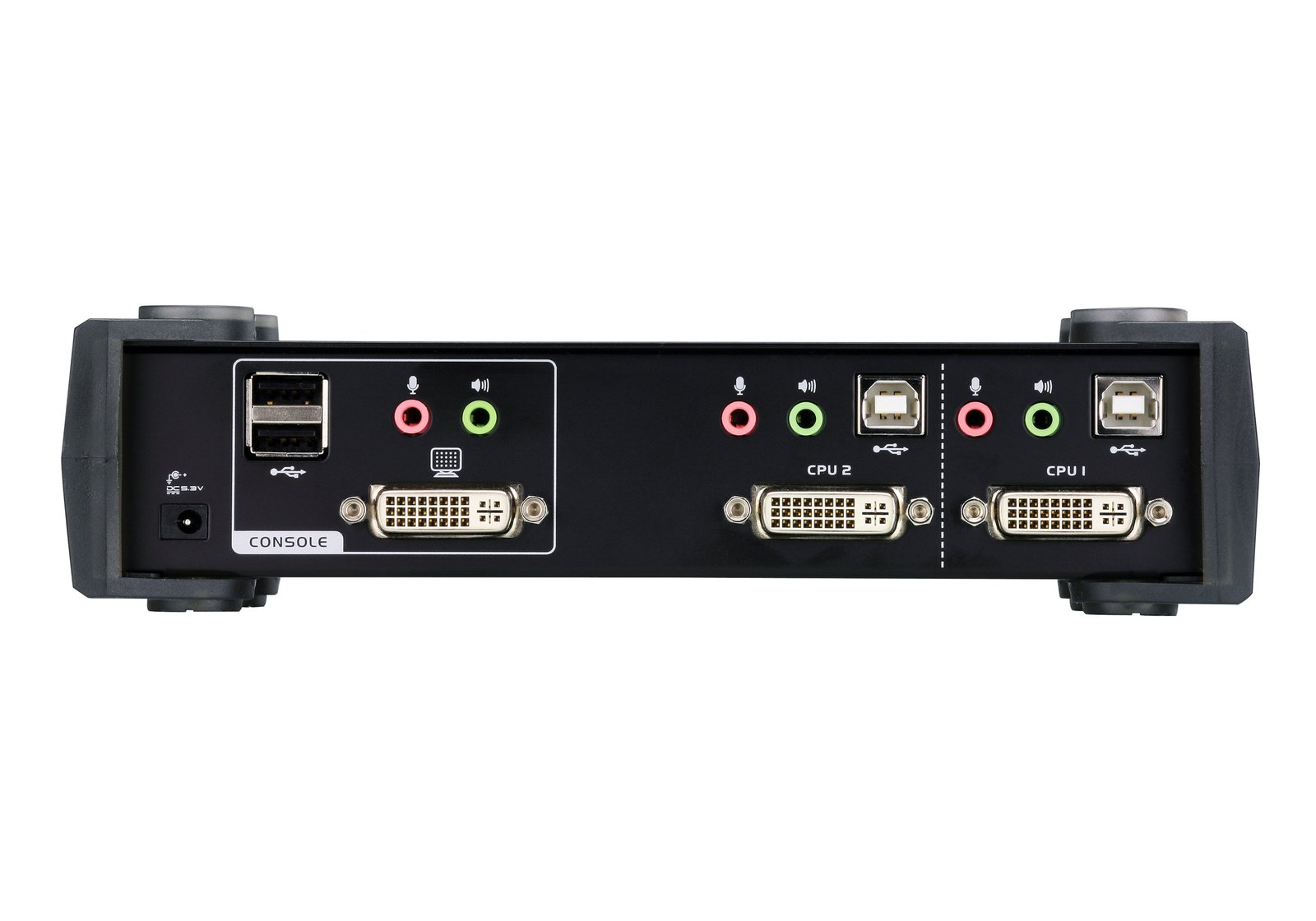

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| USB hub | Yes |
| USB connector type | USB Type-A, USB Type-B |
| USB version | 2.0 |
| Audio connections | Yes |
| Headphone outputs | 2 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 1,99 s |
| HDCP | Yes |
| Power on detection | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 9 W |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 88 mm |
| Height | 55.5 mm |
| Weight | 730 g |
| Packaging content | |
| Cables included | KVM |
| Quick installation guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Network Switches |
