ATEN
ATEN CS1794 KVM switch Rack mounting Black, Stainless steel
CA$387.99
Save 5%
CA$369.07
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details

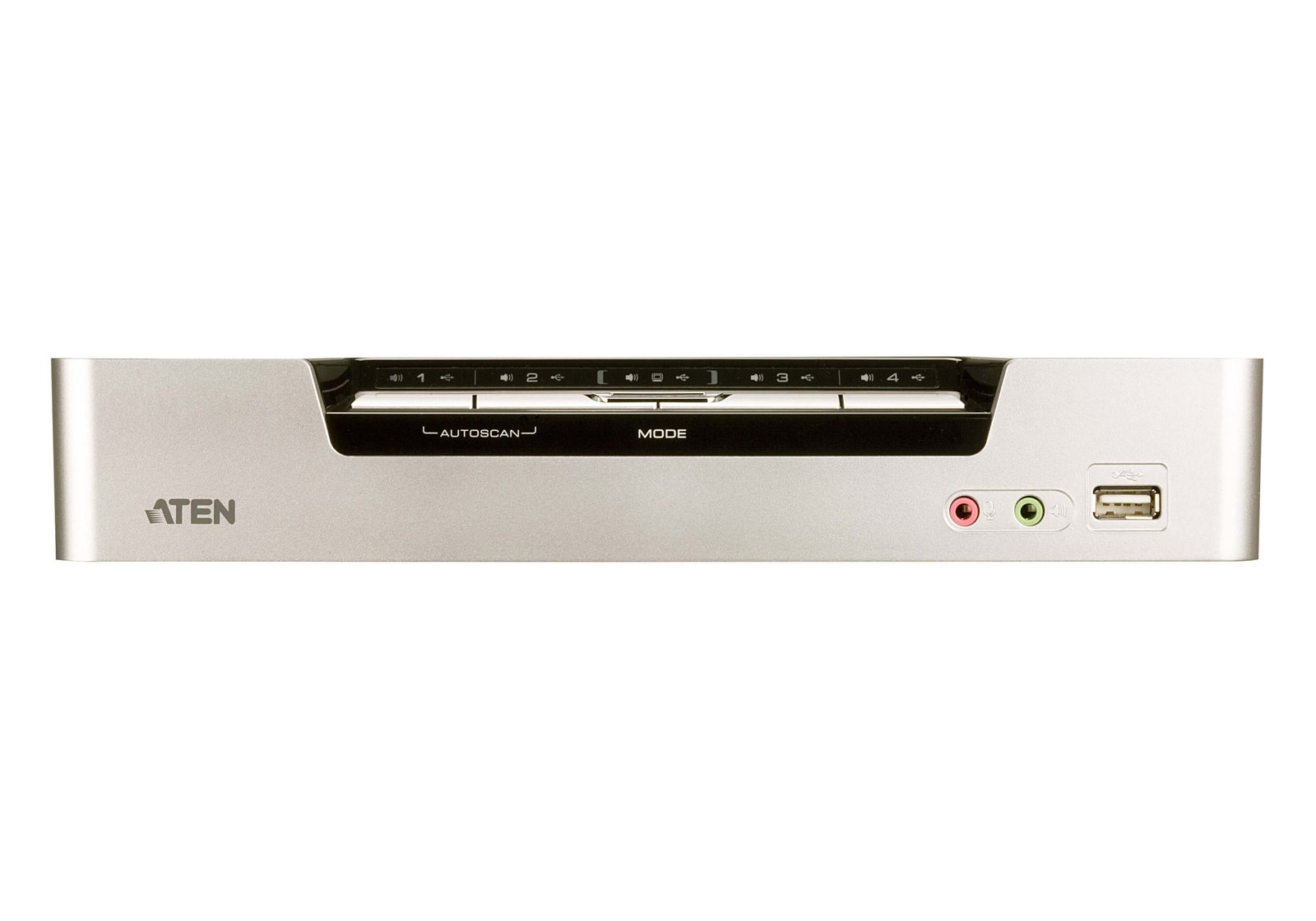

With the unique design and innovative features, the CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment.
Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
Ideal for multimedia applications in the office, the CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
Product Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | CS1794 |
| GTIN / Barcode | 0672792100260 |
| Brand Name | ATEN |
| Product Name | ATEN CS1794 KVM switch Rack mounting Black, Stainless steel |
| Mfr. Part Number | CS1794 |
|---|---|
| GTIN / Barcode | 0672792100260 |
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 5 |

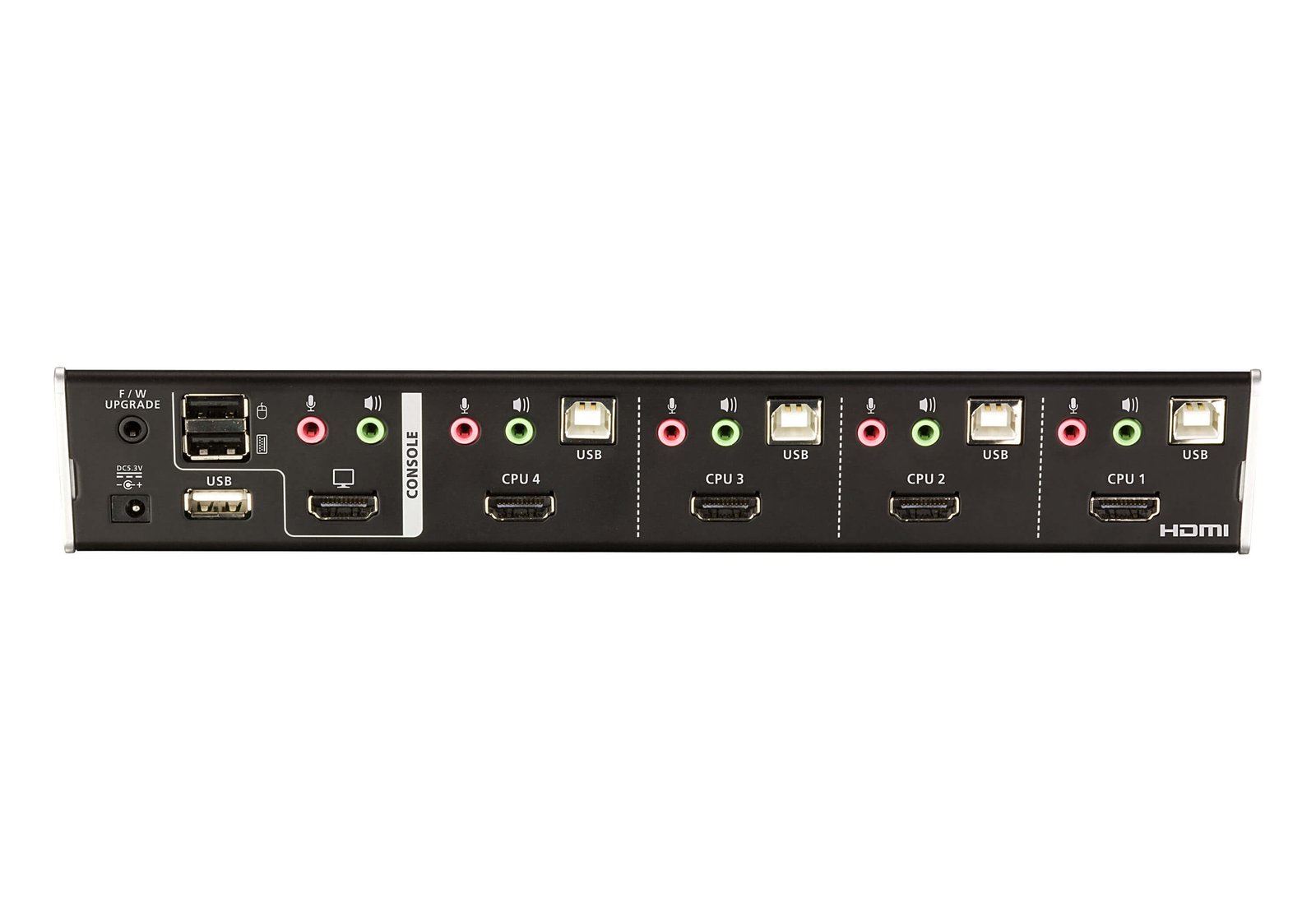

| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
| DC-in jack | Yes |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 1,99 s |
| HDCP | Yes |
| Power on detection | Yes |
| Firmware upgradeable | Yes |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black, Stainless steel |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 4.8 W |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 262.3 mm |
| Depth | 76.8 mm |
| Height | 44 mm |
| Weight | 530 g |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Network Switches |
