ATEN CS1912 KVM switch Black, Grey
Product details

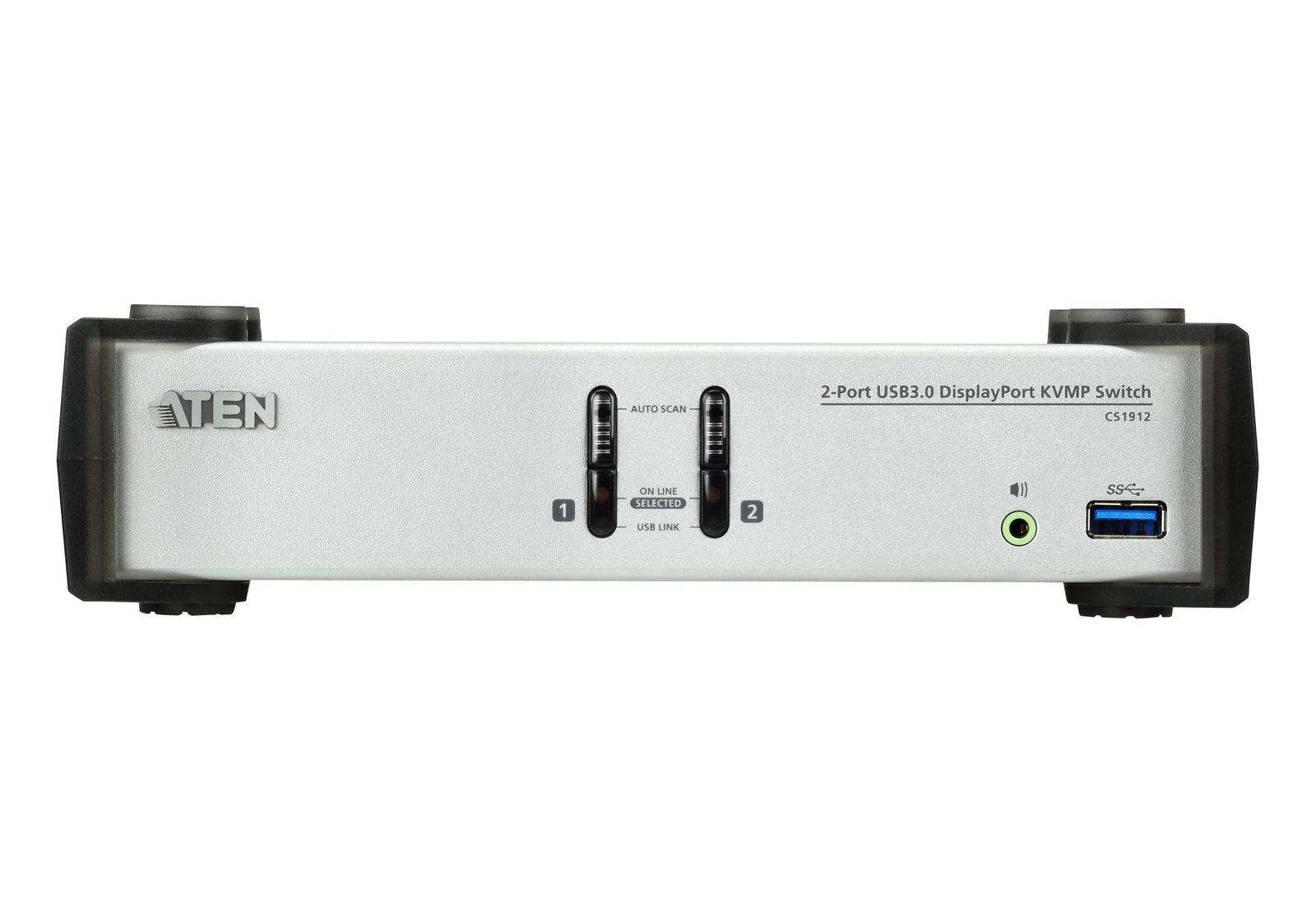

As a KVM switch, the CS1912 gives users access to two DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1912 provides three convenient switching methods – front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers.
ATEN’s unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a printer server, modem or splitter.
With its rich feature set, the CS1912 is designed to surpass all requirements for video post production, CAD design and applications that have a high demand for precise video clarity and large data transfer rates. The CS1912 allows you to share the audio from each computer and in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience.
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | CS1912 |
| Barcode | 0672792007088 |
| Brand Name | ATEN |
| Product Name | ATEN CS1912 KVM switch Black, Grey |
| Mfr. Part Number | CS1912 |
|---|---|
| Barcode | 0672792007088 |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | DisplayPort, USB A |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB connector type | USB Type-A, USB Type-B |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Audio connections | Yes |
| Headphone outputs | 4 |
| DC-in jack | Yes |
| Performance | |
| Maximum resolution | 3840 x 2160 pixels |
| Automatic switching | Yes |
| Scan interval | 1,99 s |
| HDCP | Yes |
| Hot-Plug support | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black, Grey |
| Housing material | Metal, Plastic |
| LED indicators | Status, USB |
| Push button | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Output voltage | 5 V |
| Power consumption (typical) | 3.3 W |
| External power adapter | Yes |
| System requirements | |
| Mac operating systems supported | Yes |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 88 mm |
| Depth | 210 mm |
| Height | 55.5 mm |
| Weight | 730 g |
| Packaging content | |

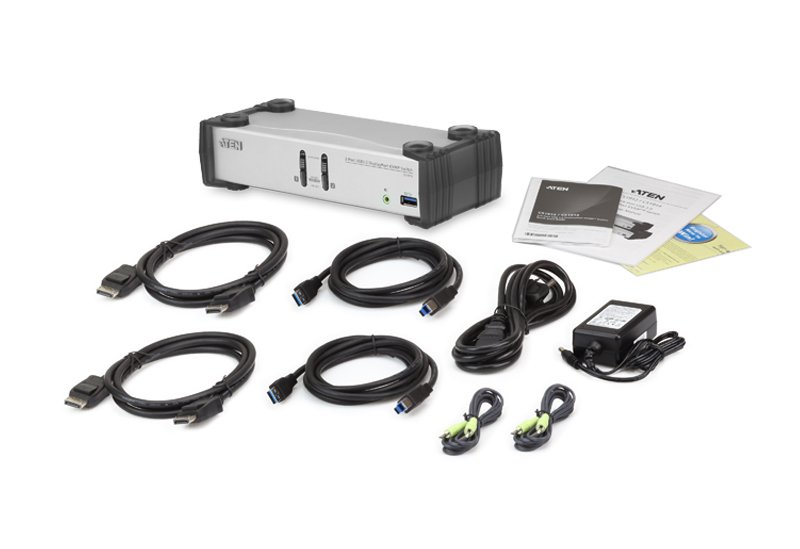

| Cables included | Audio (3.5mm), DisplayPort, USB |
| Manual | Yes |
| AC adapter included | Yes |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Network Switches |
