ATEN
ATEN Rack mount kit for The Presentation Matrix Switch (VP); 2x Mounting Brackets
Mfr. Part# 2X043G
CA$32.99
CA$31.46
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | CS52DP |
| Brand Name | ATEN |
| Product Name | ATEN CS52DP KVM switch Black |
| Mfr. Part Number | CS52DP |
|---|---|
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |

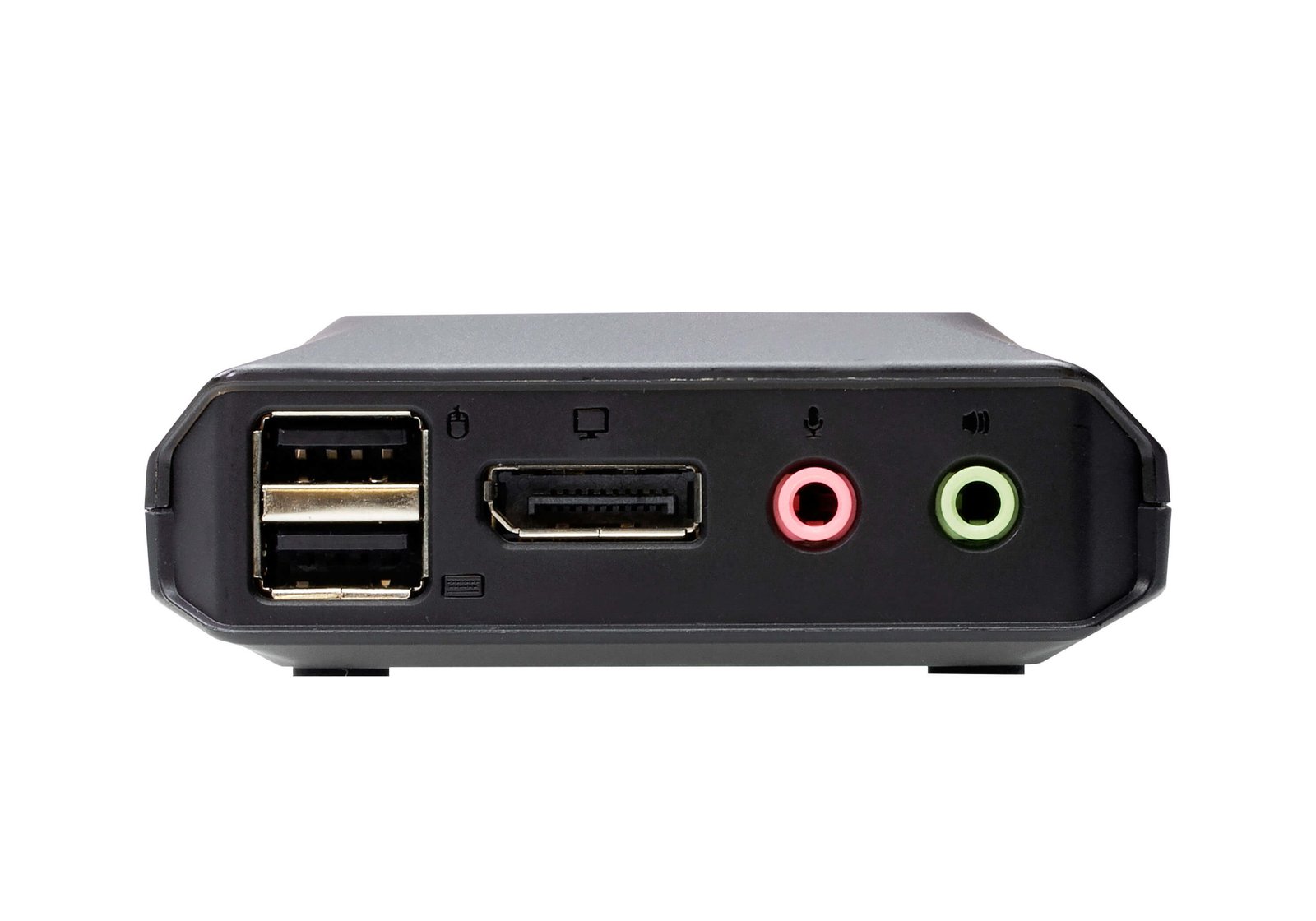

| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort |
| Console USB ports quantity | 2 |

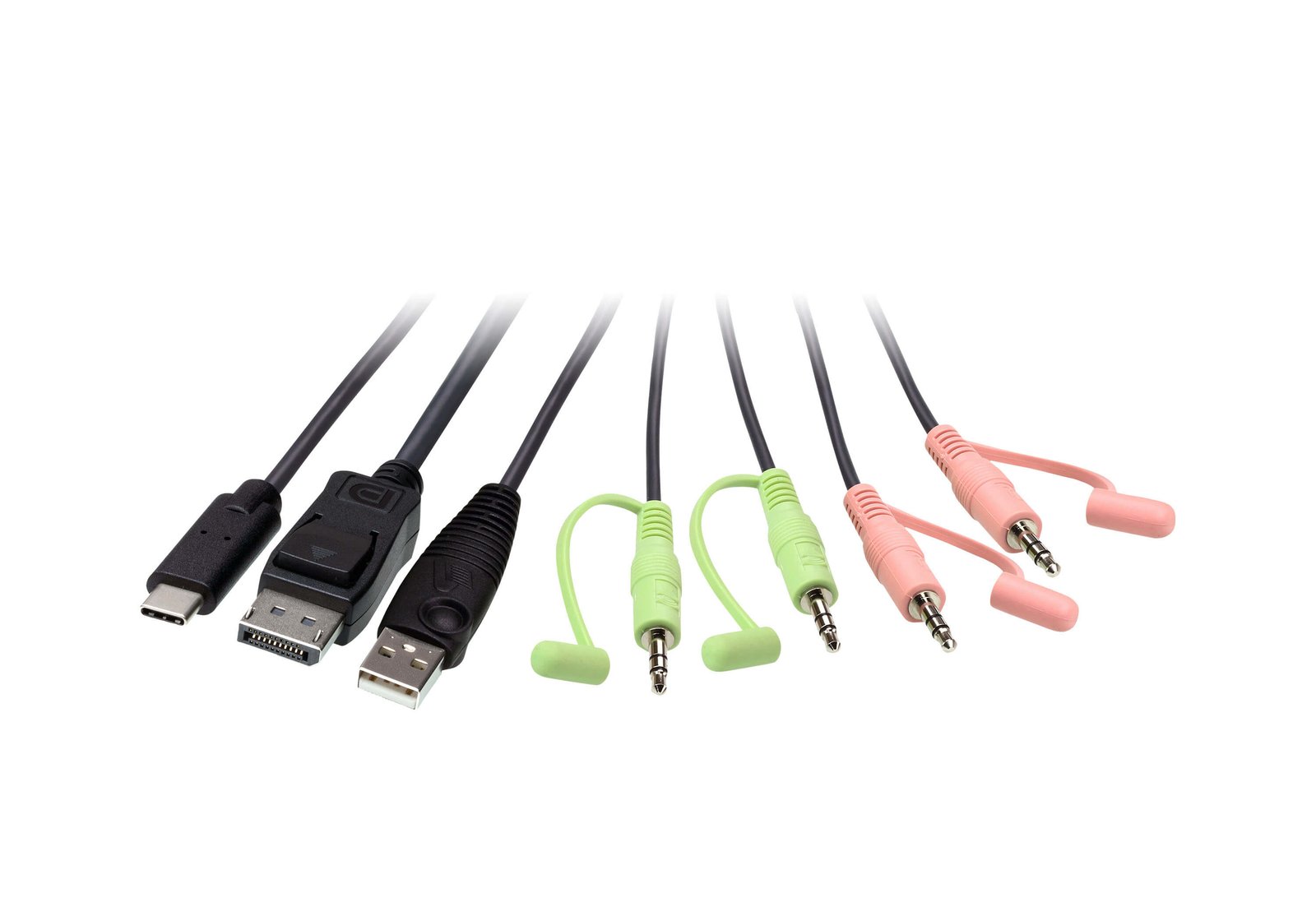

| USB connector type | USB Type-A, USB Type-C |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| Hot-Plug support | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| Cable length | 1.2 m |
| Remote switch cable length | 1.8 m |
| LED indicators | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | USB |
| Power consumption (typical) | 0.74 W |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Android, iOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 84.2 mm |
| Depth | 83.4 mm |
| Height | 30.4 mm |
| Weight | 300 g |
| Packaging data | |
| Package width | 55 mm |
| Package depth | 155 mm |
| Package height | 223 mm |
| Package weight | 407 g |
| Packaging content | |
| Quick installation guide | Yes |
| Logistics data | |
| Country of origin | Taiwan |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Network Switches |
