ATEN

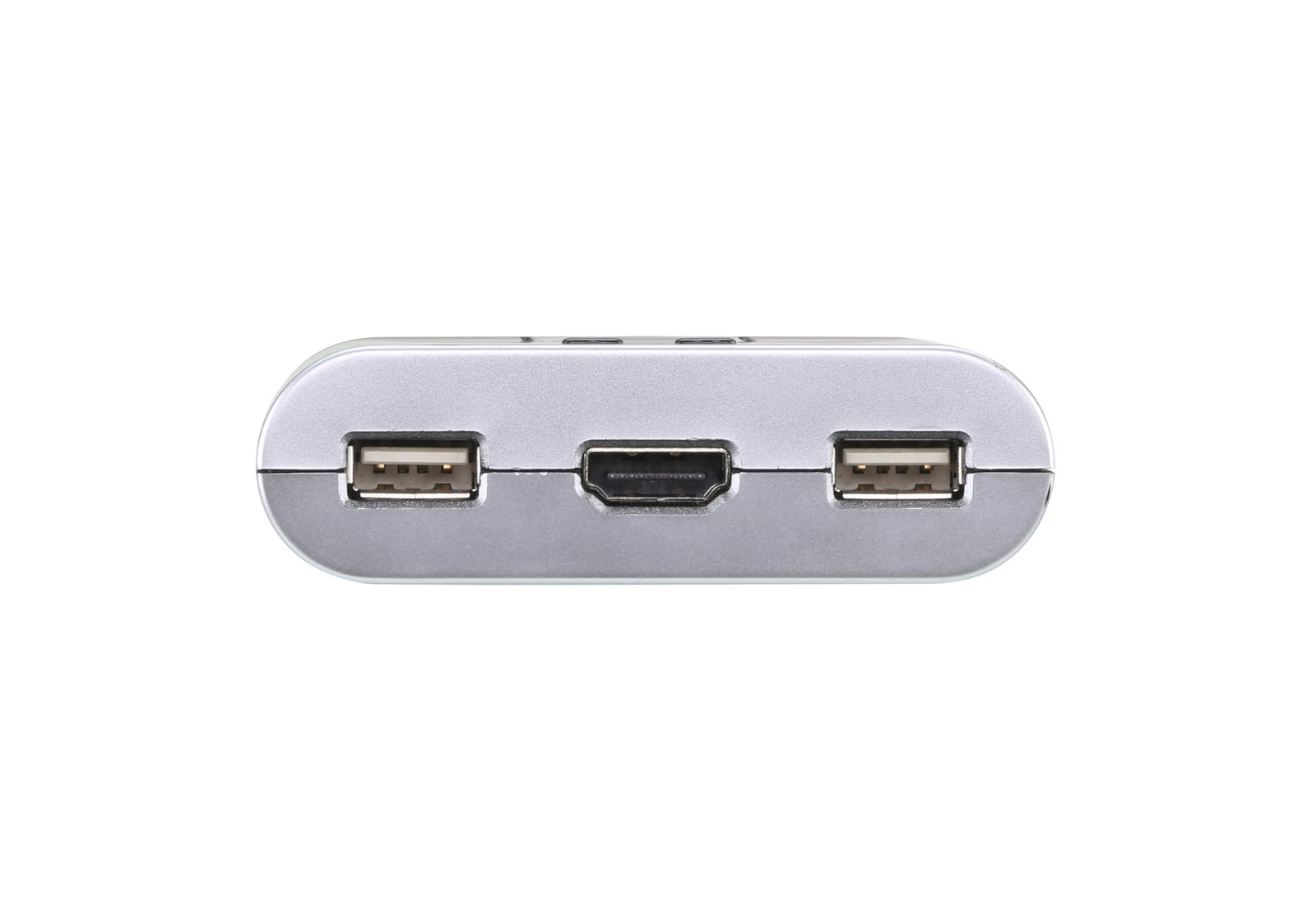

ATEN CS692 KVM switch Black
CA$132.99
Save 5%
CA$126.45
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details
The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.
Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.
Product Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | CS692 |
| Brand Name | ATEN |
| Product Name | ATEN CS692 KVM switch Black |
| Mfr. Part Number | CS692 |
|---|---|
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| Console HDMI ports quantity | 1 |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Plastic |
| Cable length | 1.2 m |
| Remote switch cable length | 1.8 m |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 0.72 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 82.4 mm |
| Depth | 66.5 mm |
| Height | 25.2 mm |
| Weight | 480 g |
| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Network Switches |
