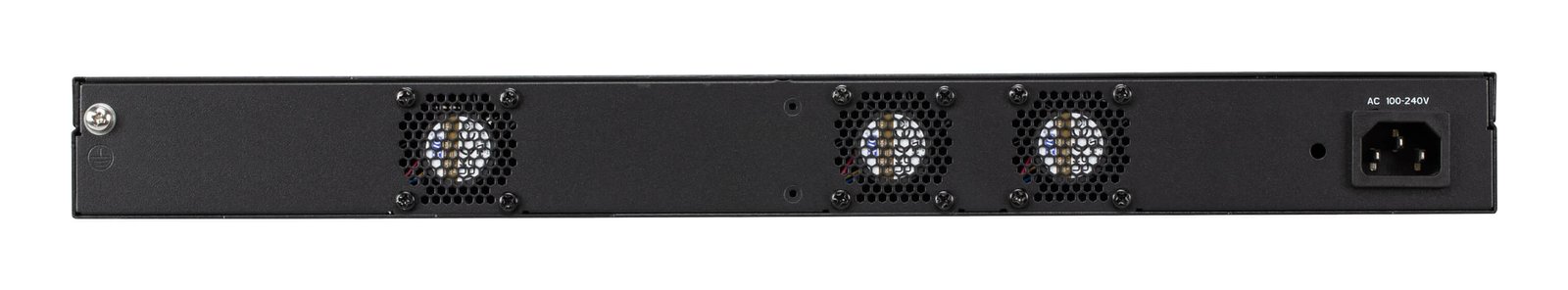

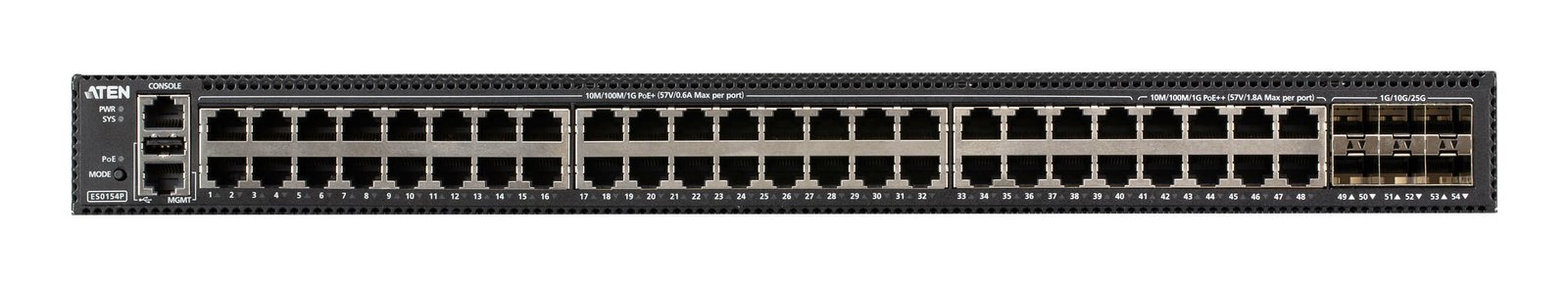

ATEN ES0154P network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over (PoE) Black
Product details
The ES0154P supports 6 (1G/10G/25G) SFP28, 48 (10M/100M/1G) RJ-45 with PoE+ (Support 802.3at/af) ports, and PoE++ (Support 802.3bt) ports (41-48 ports only). The ES0154P is equipped with Power over Ethernet (PoE) functionality, featuring a substantial 740 Watts power budget distributed across its 48 RJ-45 ports. This eliminates the necessity for external power adapters and leads to a substantial reduction in power configuration expenses.
Deploying the ES0154P is quick and hassle-free. Its plug-and-play design eliminates the need for software installation or device configuration. Just connect the transmitters and receivers to the ES0154P using Cat 5e/6 cables. With a full range of functions to help with optimizing network efficiency, manageability and reliability for their network environment, the ES0154P serves as an ideal network switch solution. It is particularly valuable in applications where connected devices play a critical role in network operation, including OT infrastructure for both SMBs and enterprises.
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | ES0154P |
| Barcode | 0672792015847 |
| Brand Name | ATEN |
| Product Name | ATEN ES0154P network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black |
| Mfr. Part Number | ES0154P |
|---|---|
| Barcode | 0672792015847 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 6 |
| Fiber optic connector | SFP28 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support | Yes |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 396 Gbit/s |
| Forwarding rate | 295 Mpps |
| MAC address table | 32000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Security | |
| IGMP snooping | Yes |
| Protocols | |
| Supported network protocols | IGMP v1/v2/v3, IGMP v1/v2 |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| Performance | |
| Internal memory | 1000 MB |
| Flash memory | 256 MB |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 835 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 740 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 420 mm |
| Depth | 442 mm |
| Height | 43.6 mm |
| Weight | 5.42 kg |
| Packaging data | |
| Package width | 550 mm |
| Package depth | 650 mm |
| Package height | 150 mm |
| Package weight | 7.91 kg |
| Logistics data | |
| Country of origin | Taiwan |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Network Switches |
