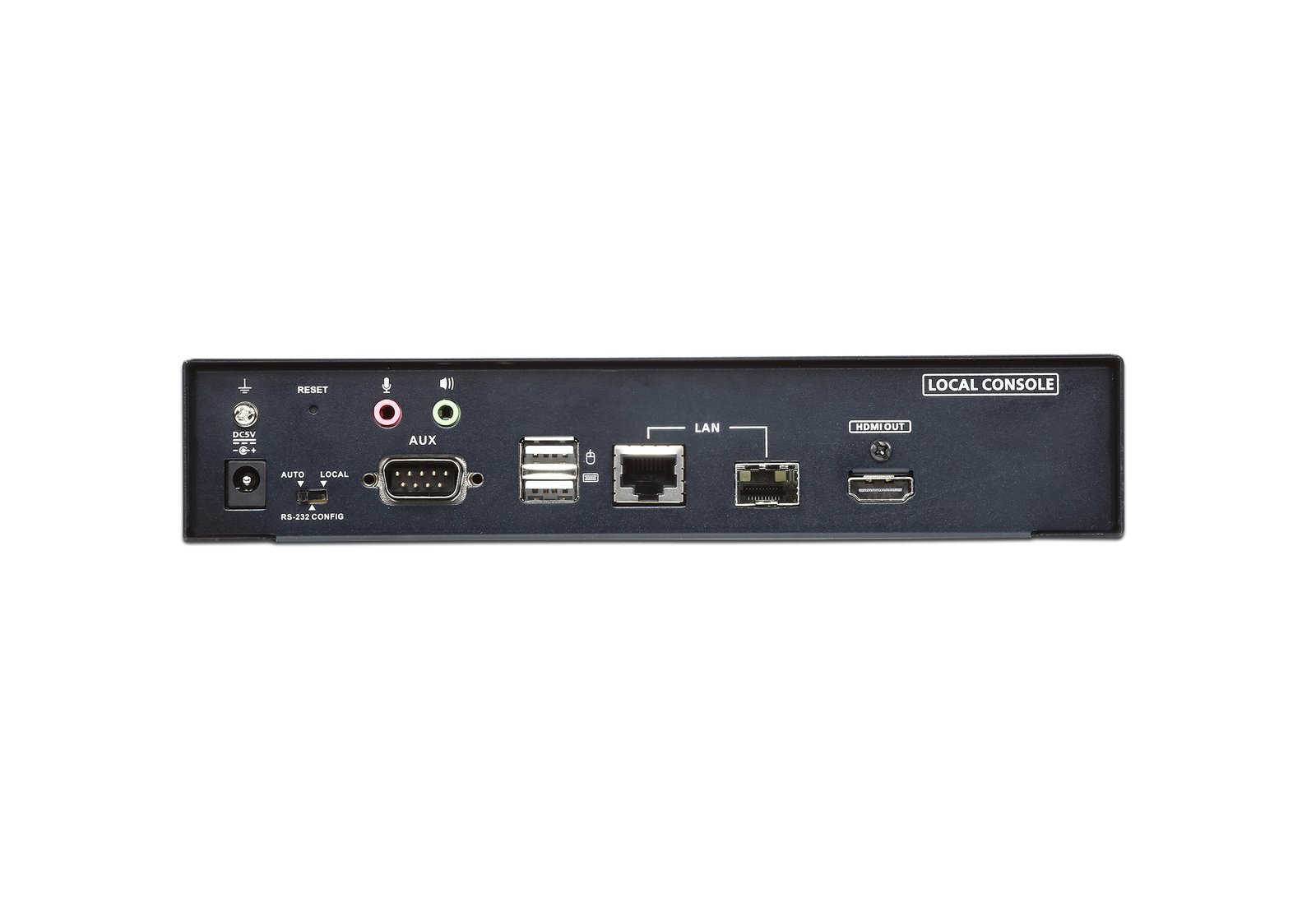

ATEN KE8952T KVM extender Transmitter
Product details
Utilizing expertise in over IP KVM solutions, KE8952 are IP-based HDMI KVM extenders that allow access to a computer system from a remote USB console to anywhere over an intranet. The KE8952 KVM over IP Extenders support one HDMI monitor at each end, providing a greatly improved video display image with 4K x 2K video resolution (up to 3840 x 2160). KE8952 also support 1Gbps SFP fiber module expansions, enabling connections via fiber optic network to extend distances in transmission. Furthermore, the KE8952 features Power over Ethernet (PoE) function, the power can be supplied through a PoE Network Switch; therefore, eliminating the need for a power adapter and effectively reducing the power configuration cost.
The 4K HDMI KVM over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e/6 cable that allows point-to-point, point-to-multipoint, multipoint-topoint, and multipoint-to-multipoint administration. KE8952 can be connected either directly to each other or via a high-speed network, over a copper-based or fiber-based LAN.
Implementing the KVM over IP Matrix Manager (CCKM) with KE8952, IT administrators receive advanced features functioning as auto detection of all KE Series Extenders* on the same subnet for the sake of fast installation or configuration, username/password authentication and authorization, and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection, supporting AES encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of connection security; moreover, with an OSD, RS-232 support, and Auto MDIX, the KE series is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.
More flexible and efficient operations can be achieved in the KVM over IP Matrix System, which integrates KE Series Extenders with the KVM over IP Matrix Manager (CCKM), such as multi-display setups, video grouping, video profile scheduling and enhancements that give greater access to quick and easy control tools to configure KE devices over a network. Whether you're configuring, monitoring, administrating, controlling or extending computer access, the KVM over IP Matrix System is made adaptable, to fit an endless variety of working environments and workstation settings, as well as to provide solutions in broadcasting, control center, multimedia, manufacturing and many other industries where matrix extending is required.
* Note: Refer to www.aten.com for more about the KE Series extenders
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | KE8952T |
| Barcode | 0672792007453 |
| Brand Name | ATEN |
| Product Name | ATEN KE8952T KVM extender Transmitter |
| Mfr. Part Number | KE8952T |
|---|---|
| Barcode | 0672792007453 |
| Features | |
| Type | Transmitter |
| Connectivity technology | Wired |
| Cable types supported | Cat5e, Cat6, Fiber |
| Rack mounting | Yes |
| Maximum digital resolution | 3840 x 2160 pixels |
| On Screen Display (OSD) | Yes |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
| Transmitter | |
| Transmitter video port type | HDMI |
| Transmitter local video port | Yes |
| Transmitter local video port type | HDMI |
| Number of displays supported | 1 |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 3 |
| Power | |
| AC adapter output voltage | 5 V |
| Power consumption (transmitter) (max) | 7.22 W |
| Weight & dimensions | |
| Transmitter width | 21.5 cm |
| Transmitter depth | 16.3 cm |
| Transmitter height | 4.18 cm |
| Transmitter weight | 1.13 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Other features | |
| Firmware upgradeable | Yes |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Cables & Connectivity |
