ATEN
ATEN UC3310 video capturing device USB 3.2 Gen 1 (3.1
CA$442.99
Save 5%
CA$421.43
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details
The CAMLIVE MX (UC3310) UVC Camera Seamless Matrix enables the conversion of up to two 4K @ 30 USB camera sources into one HDMI, allowing seamless switch among the sources. Besides, it features the encoding solution supporting 1080p@30 UVC output simultaneously for live broadcasting on popular streaming software such as Microsoft Teams, Zooms, OBS, XSplit, YouTube, Facebook, GoToWebinar, and Twitch, guaranteeing an engaging video conferencing experience with high quality images and sound.

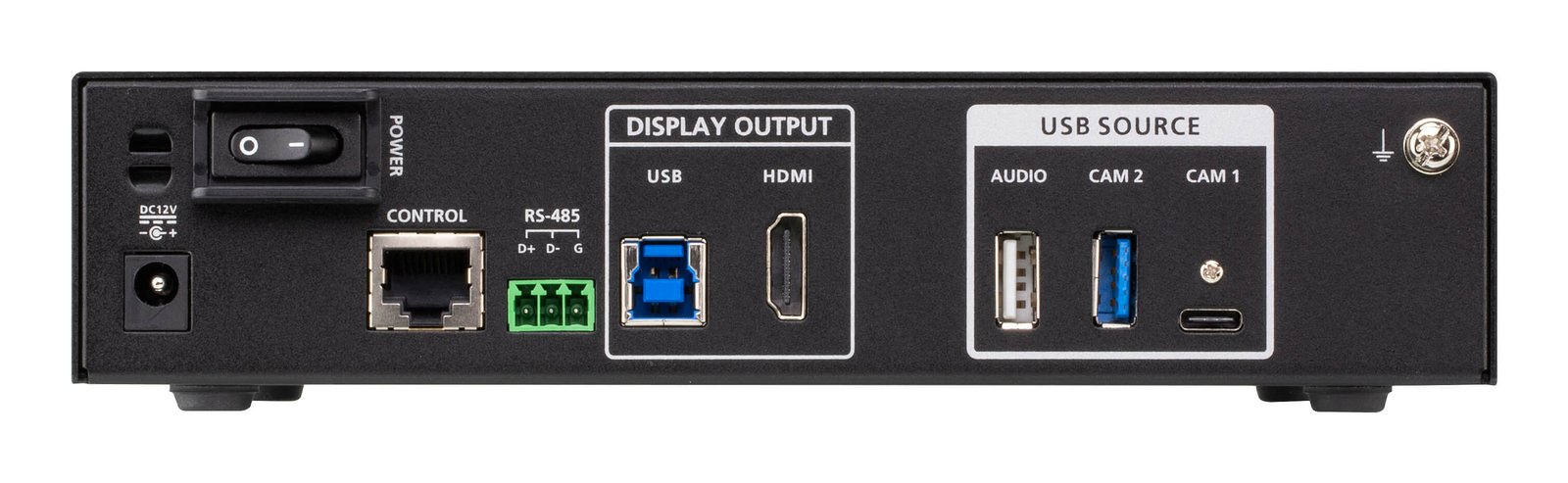

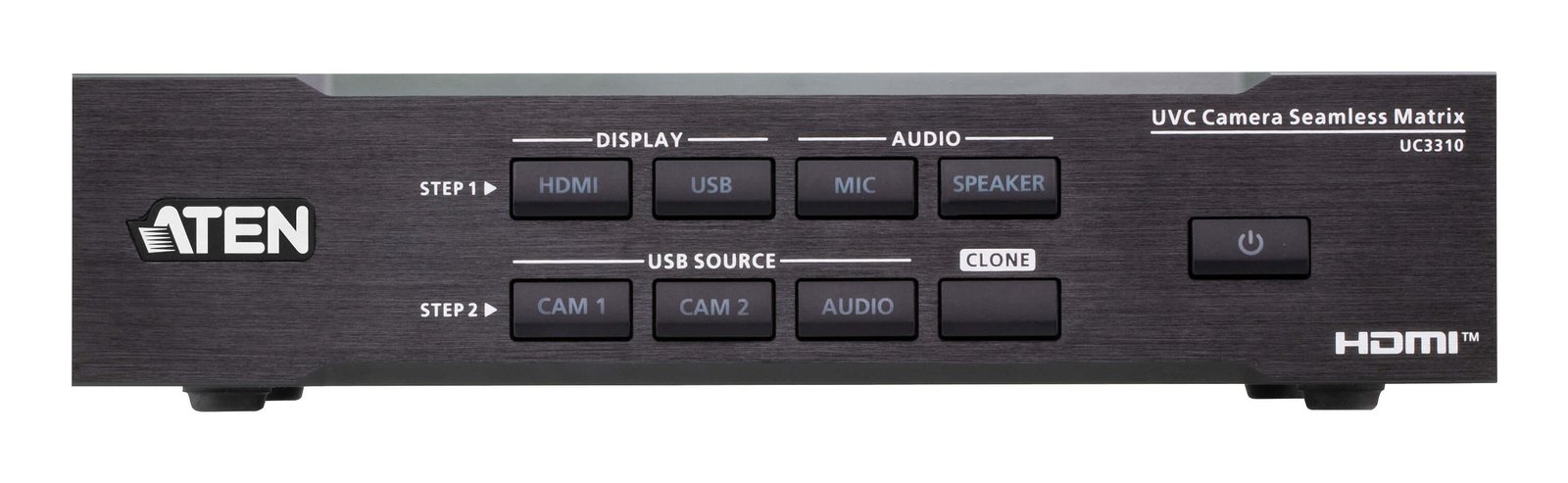

Pushbuttons are built on the front panel for quick and intuitive signal selection. The RS-232 connection enables integration with ATEN VK series and other third-party control systems. The CAMLIVE MX also comes with RS-485 interface to support VISCA protocol for PTZ camera controller connection. An optional rack mount kit is available to give installation flexibility in media cabinets or DIT stations. The CAMLIVE MX delivers plug-and-play convenience with no software drivers needed. In addition, it runs on all major operating systems including windows 10 and macOS 10.1 for all users to customize video streams for various online meeting applications.
Pushbuttons are built on the front panel for quick and intuitive signal selection. The RS-232 connection enables integration with ATEN VK series and other third-party control systems. The CAMLIVE MX also comes with RS-485 interface to support VISCA protocol for PTZ camera controller connection. An optional rack mount kit is available to give installation flexibility in media cabinets or DIT stations. The CAMLIVE MX delivers plug-and-play convenience with no software drivers needed. In addition, it runs on all major operating systems including windows 10 and macOS 10.1 for all users to customize video streams for various online meeting applications.
Product Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | UC3310 |
| GTIN / Barcode | 0672792016196 |
| Brand Name | ATEN |
| Product Name | ATEN UC3310 video capturing device USB 3.2 Gen 1 (3.1 Gen 1) |
| Mfr. Part Number | UC3310 |
|---|---|
| GTIN / Barcode | 0672792016196 |
| Performance | |
| Product colour | Black |
| Internal | No |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Housing material | Metal |
| Country of origin | Taiwan |
| Video | |
| Supported video modes | 720p, 1080p, 2160p |
| Audio | |
| Audio sampling rate | 48 kHz |
| Audio sampling rate | 16 bit |
| Ports & interfaces | |
| USB port | Yes |
| USB connector type | USB Type-A, USB Type-C |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 3 |
| Number of HDMI outputs | 1 |
| Power | |
| Power supply type | DC |
| Output voltage | 12 V |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Mac compatibility | Yes |
| System requirements | |
| Minimum processor | Intel i3 Dual Core 2.8Ghz |
| Minimum RAM | 4000 MB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 164.6 mm |
| Height | 44 mm |
| Weight | 980 g |
| Other features | |
| Video in | 1 x USB3.2 Gen1 Type A, 1 x USB3.2 Gen1 Type C |
| RS-232 ports | 1 |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Computers & IT Hardware |
