Name: ATEN USB 2.0 DVI Single Link over 1 CAT Cable (100m) KVM Extender with Full USB2.0 support (up to
Brand: ATEN
SKU: CE620
Price: 1025.73 CAD
Availability: InStock

888-370-2261 info@itlogixs.ca 157 Edith Way NW, Calgary, AB, T3R 2B8

Home /Printing, Imaging & Consumables /ATEN USB 2.0 DVI Single Link over 1 CAT Cable (100m) KVM Extender with Full USB2.0 support (up to 480Mbps) / HDBaseT2.0

Product Details

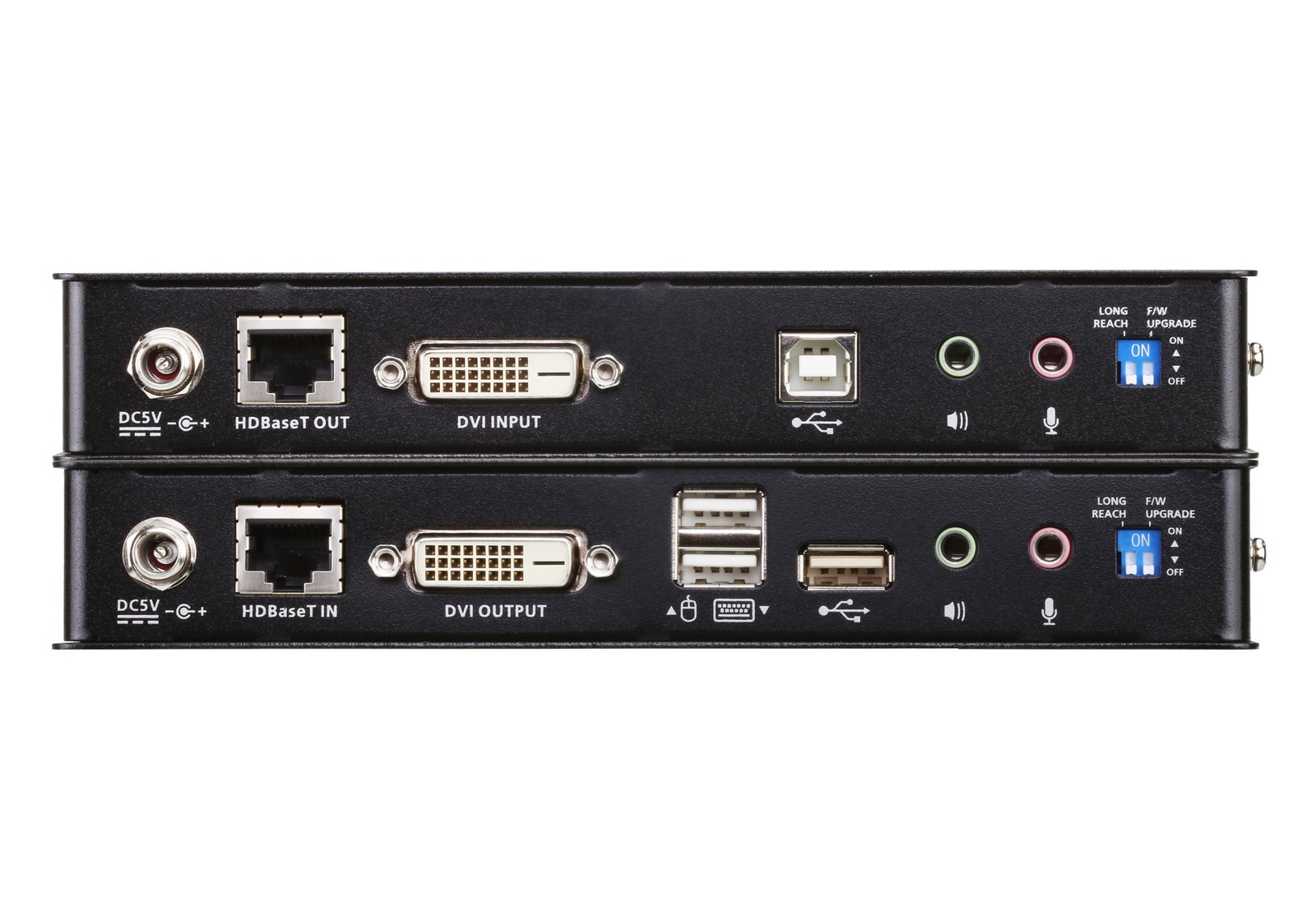

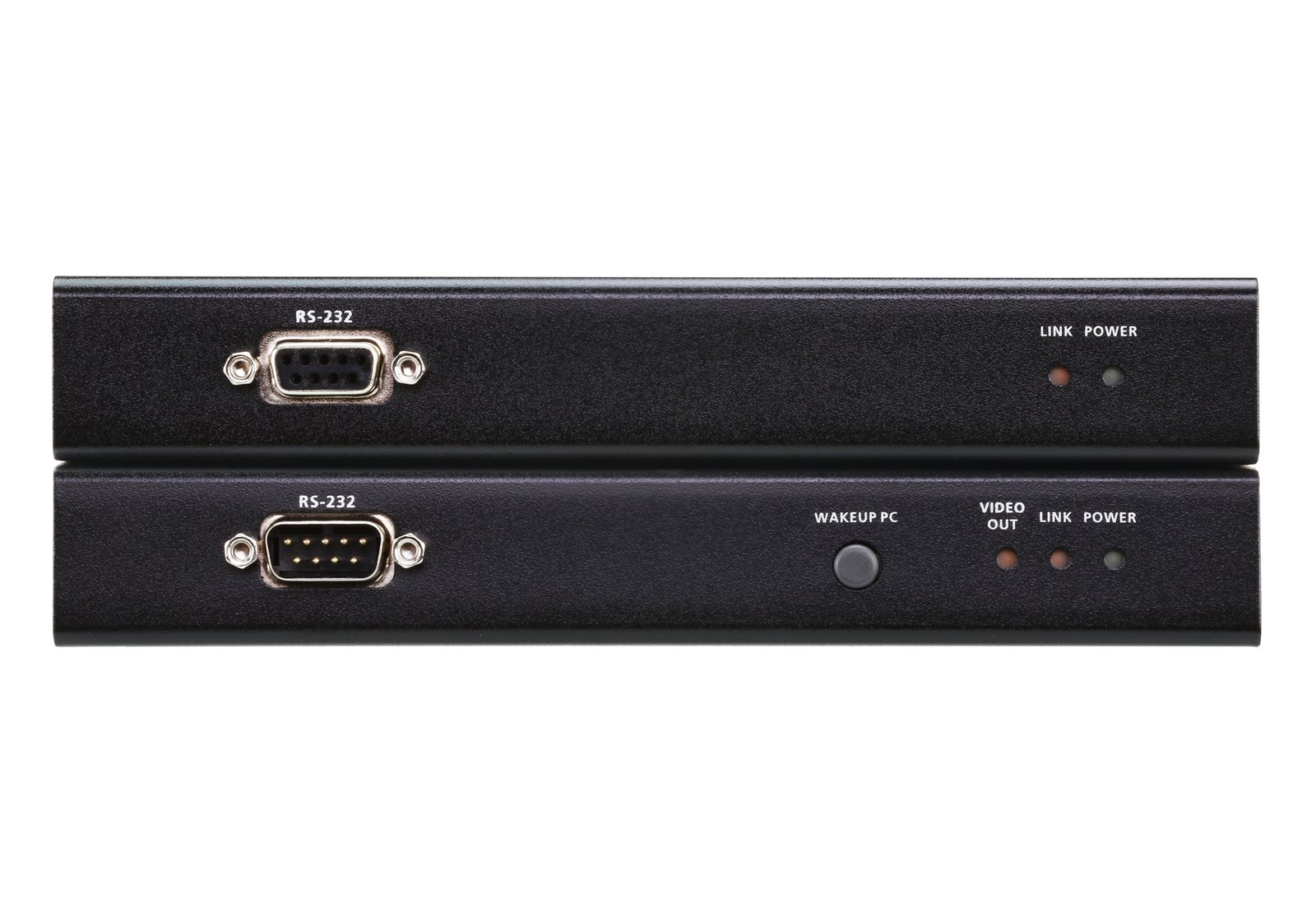

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. Featured with a Long Reach mode, the CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0, and RS-232 signals up to 150 meters using a single Cat6/6a/ATEN 2L-2910 Cat 6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.

Product Specifications

Manufacturer	ATEN
Manufacturer Part Number	CE620
GTIN / Barcode	0672792007170
Brand Name	ATEN
Product Name	ATEN USB 2.0 DVI Single Link over 1 CAT Cable (100m) KVM Extender with Full USB2.0 support (up to 480Mbps) / HDBaseT2.0

Features
Mfr. Part Number	CE620
GTIN / Barcode	0672792007170
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	100 m
Cable types supported	Cat5e, Cat6, Cat6a
Product colour	Black
Material	Metal
Transmitter
Transmitter local video port	Yes
Transmitter local video port type	DVI-D
Receiver
Receiver local video port type	DVI-D
Power
Power consumption (transmitter) (max)	3 W
Power consumption (receiver) (max)	5.6 W
Weight & dimensions
Transmitter width	18.2 cm
Transmitter depth	12.3 cm
Transmitter height	2.87 cm
Transmitter weight	630 g
Receiver width	18.2 cm
Receiver depth	12.3 cm
Receiver height	2.87 cm
Receiver weight	640 g
Packaging content
AC adapter included	Yes
Cables included	DVI
Manual	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Other features
Firmware upgradeable	Yes
Brand	ATEN
Availability	In Stock
Price Currency	CAD
Category	Printing, Imaging & Consumables
