ATEN
ATEN VE600A AV extender transmitter Black
CA$176.99
Save 5%
CA$168.71
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details
The VE600A DVI Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings. The VE600A incorporates ATEN’s technology that allows the A/V signal to be transmitted over one Cat 5e cable. If the real EDID is required, simply use a second Cat 5e cable. With stereo audio support and support for popular widescreen formats, the VE600A provides crystal-clear image and sound quality in all installations where remote DVI video displays are required.
Product Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | VE600A |
| GTIN / Barcode | 0672792003004 |
| Brand Name | ATEN |
| Product Name | ATEN VE600A AV extender AV transmitter Black |
| Mfr. Part Number | VE600A |
|---|---|
| GTIN / Barcode | 0672792003004 |
| Features | |
| Type | AV transmitter |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 60 m |
| Audio system | stereo |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Bandwidth | 6.75 Gbit/s |
| Bandwidth | 225 MHz |
| HDCP | Yes |
| Material | Metal |
| Impedance | 100 Ω |
| Product colour | Black |
| Ports & interfaces | |

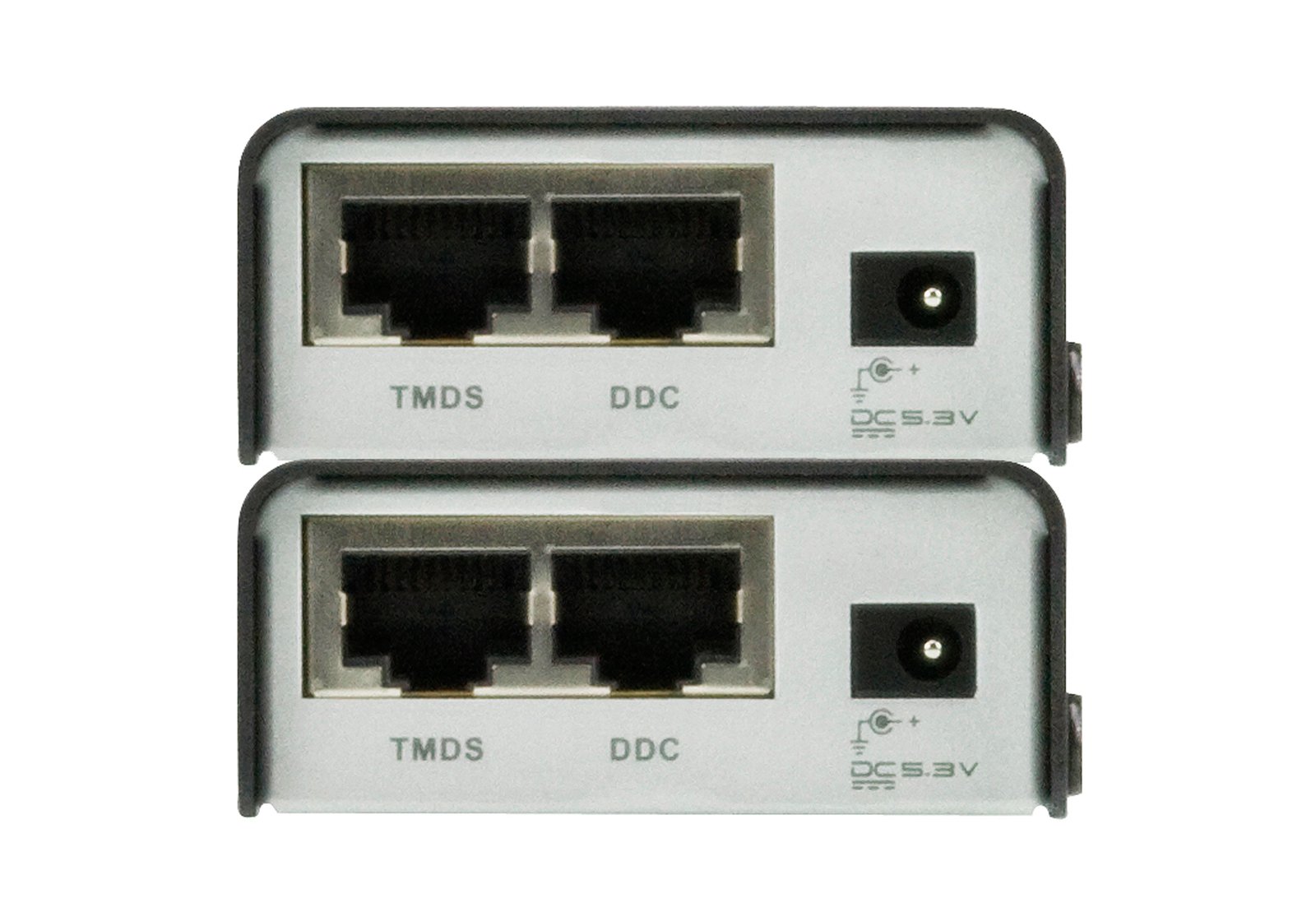

| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| DVI input ports | 2 |
| DVI output ports | 2 |

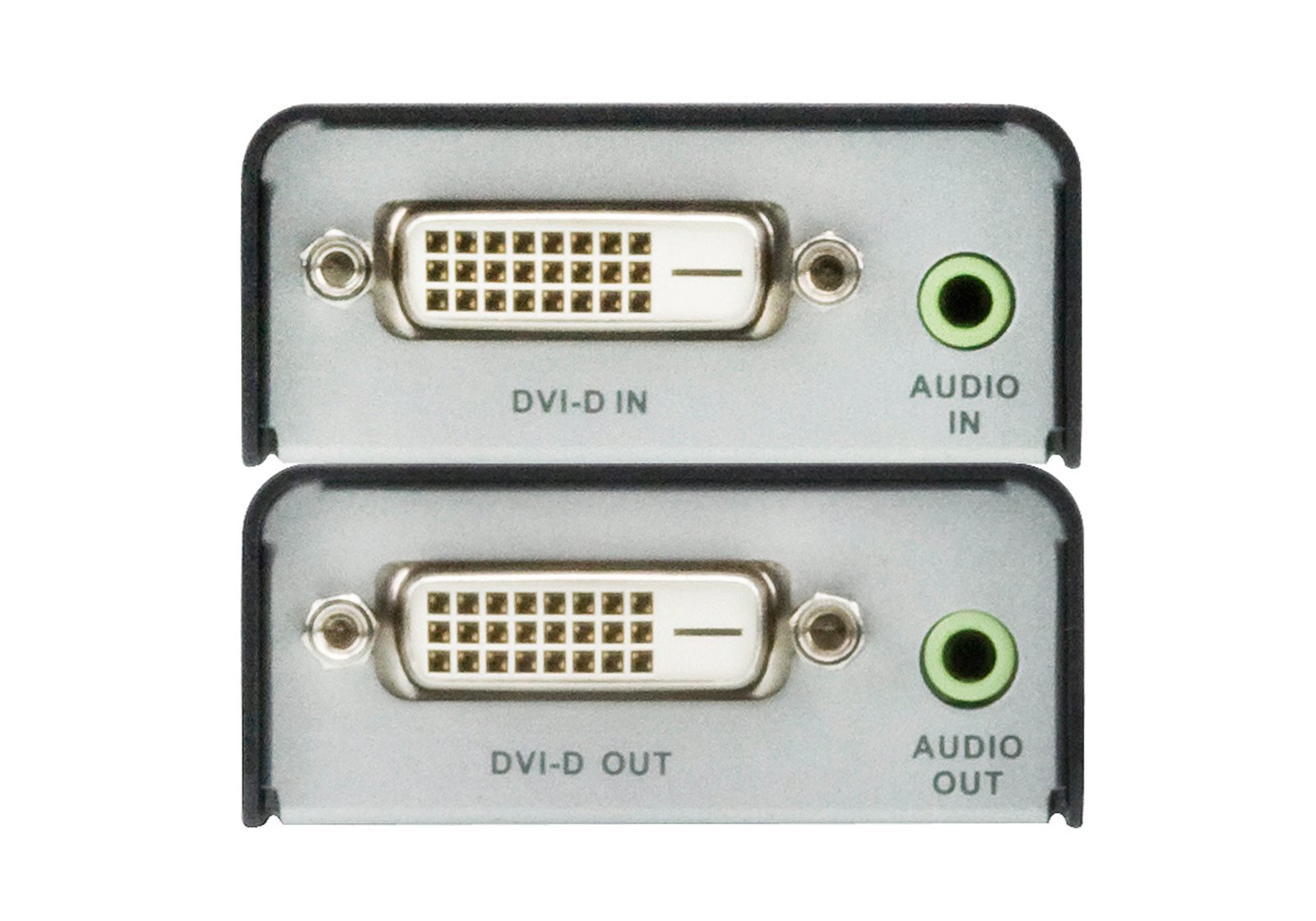

| Video in | 1 x DVI-D Female (White) |
| Video out | 1 x DVI-D Female (White) |
| Audio input | 1 x Mini Stereo Jack Female (Green) |
| Audio output | 1 x Mini Stereo Jack Female (Green) |
| Power | |
| Operating voltage | 5.3 V |
| Power consumption (max) | 2.05 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Dimensions (WxDxH) | 91.3 x 56 x 24 mm |
| Weight | 170 g |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| IR receiver included | Yes |
| Grounding wire | Yes |
| Mounting kit | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Computers & IT Hardware |
