ATEN
ATEN VM0404HA video switch HDMI
CA$812.99
Save 5%
CA$774.27
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details

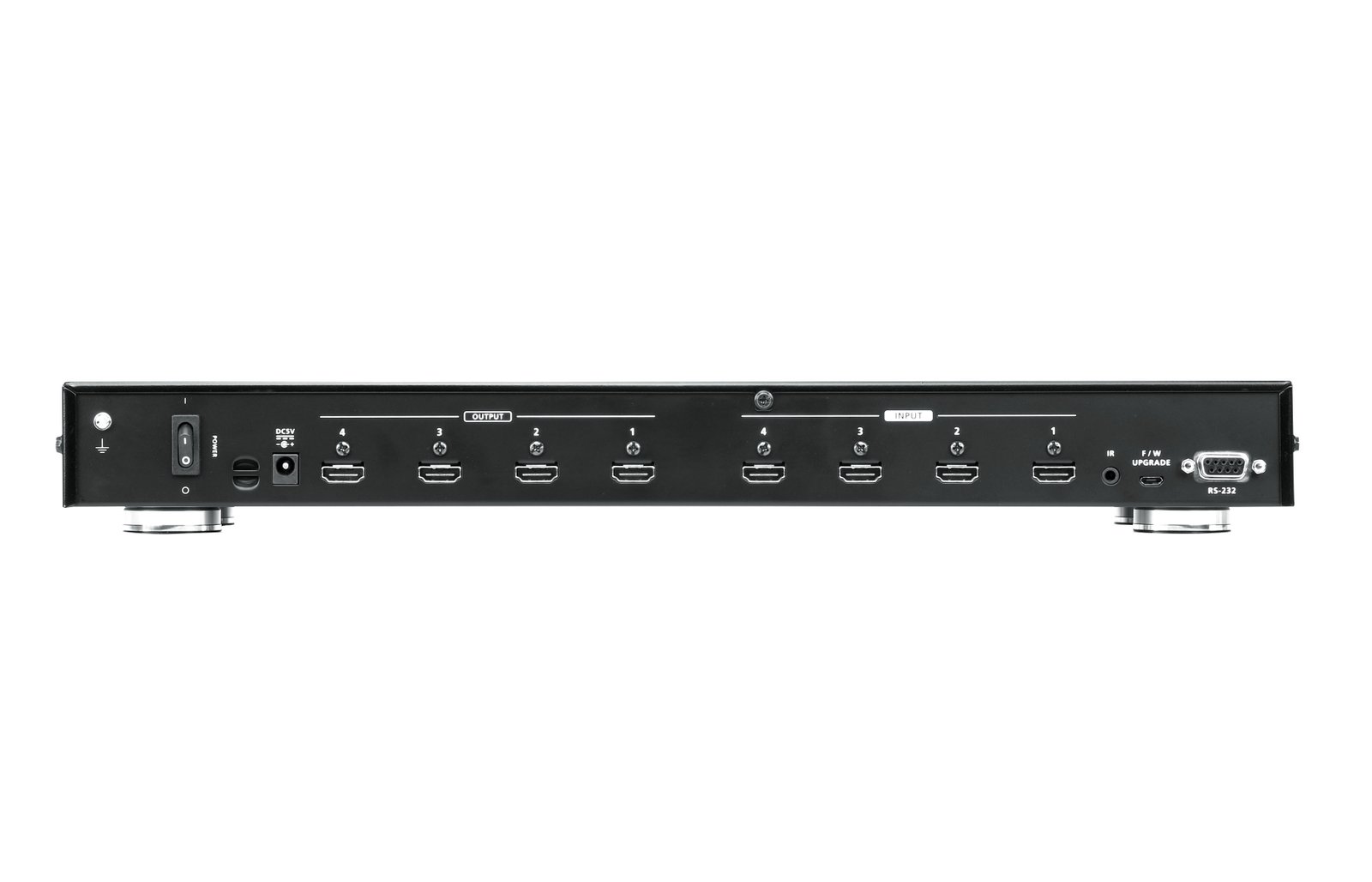

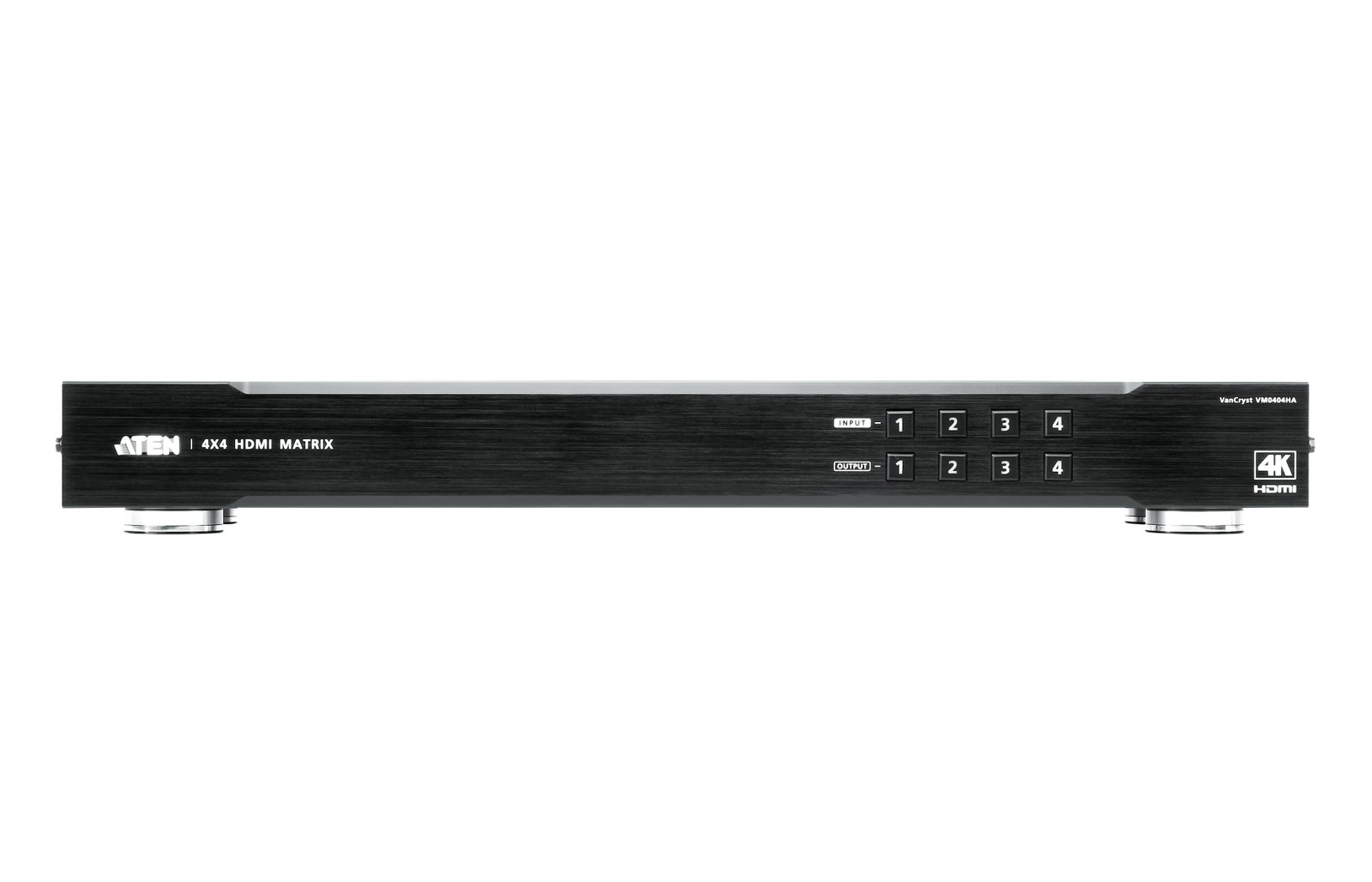

The ATEN VM0404HA 4x4 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of highdefinition video switching, the VM0404HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more.
The VM0404HA matrix switch offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays and can be operated through front-panel pushbuttons, IR remote and RS-232 control, ensuring optimum viewing and control of high-definition video.
The VM0404HA matrix switch offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays and can be operated through front-panel pushbuttons, IR remote and RS-232 control, ensuring optimum viewing and control of high-definition video.
Product Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | VM0404HA |
| GTIN / Barcode | 0672792403644 |
| Brand Name | ATEN |
| Product Name | ATEN VM0404HA video switch HDMI |
| Mfr. Part Number | VM0404HA |
|---|---|
| GTIN / Barcode | 0672792403644 |
| Ports & interfaces | |
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| HDMI in | 4 |
| Number of HDMI outputs | 4 |
| RS-232 ports | 1 |
| Video in | 4 x HDMI Type A Female (Black) |
| Video out | 4 x HDMI Type A Female (Black) |
| DC-in jack | Yes |
| Features | |
| Material | Metal |
| Product colour | Black |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum operating distance | 15 m |
| Rack mounting | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Supported video modes | 2160i, 2160p |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| 3D | Yes |
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| Power | |
| Power consumption (typical) | 10.58 W |
| Weight & dimensions | |
| Width | 437.2 mm |
| Depth | 162.9 mm |
| Height | 44 mm |
| Weight | 2.02 kg |
| Packaging content | |
| Remote control included | Yes |
| AC adapter included | Yes |
| Mounting brackets included | Yes |
| Plug adapter type | EU |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Network Switches |
