Product Details

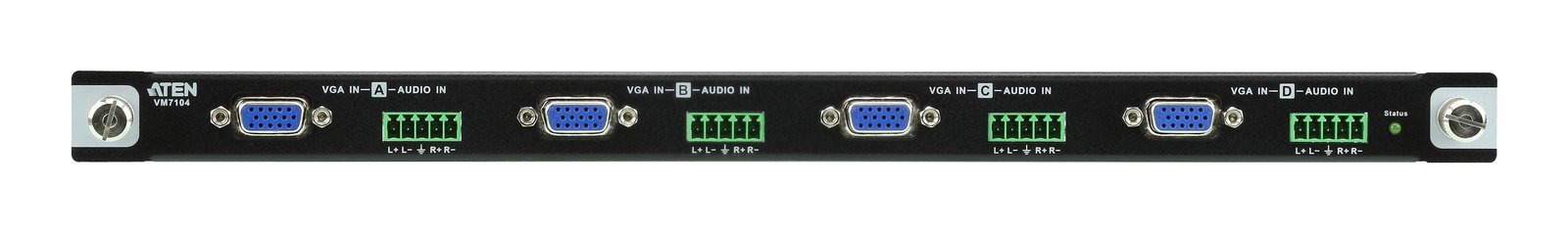

The VM7104 4-Port VGA Input Board offers an easy way to route 4 VGA video and audio sources up to 16 displays, when used in combination with the ATEN Modular Matrix Switch. The VM7104 supports RGBHV / RGBS/ Y CbCr/ YPbPr input signals; stereo audio that can be embedded into HDMI Audio output. The board is built with a hot-swappable design that is compatible with the VM1600, so that the unit doesn’t need to be powered off when the board is changed.
Product Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | VM7104 |
| Brand Name | ATEN |
| Product Name | ATEN VM7104 matrix switch accessory |
| Mfr. Part Number | VM7104 |
|---|---|
| Design | |
| Product type | Input board |
| Product colour | Black, Green |
| Material | Metal |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 4 |
| Power | |
| Power consumption (typical) | 7.1 W |
| Weight & dimensions | |
| Width | 238 mm |
| Depth | 352 mm |
| Height | 23.3 mm |
| Weight | 560 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Network Switches |
