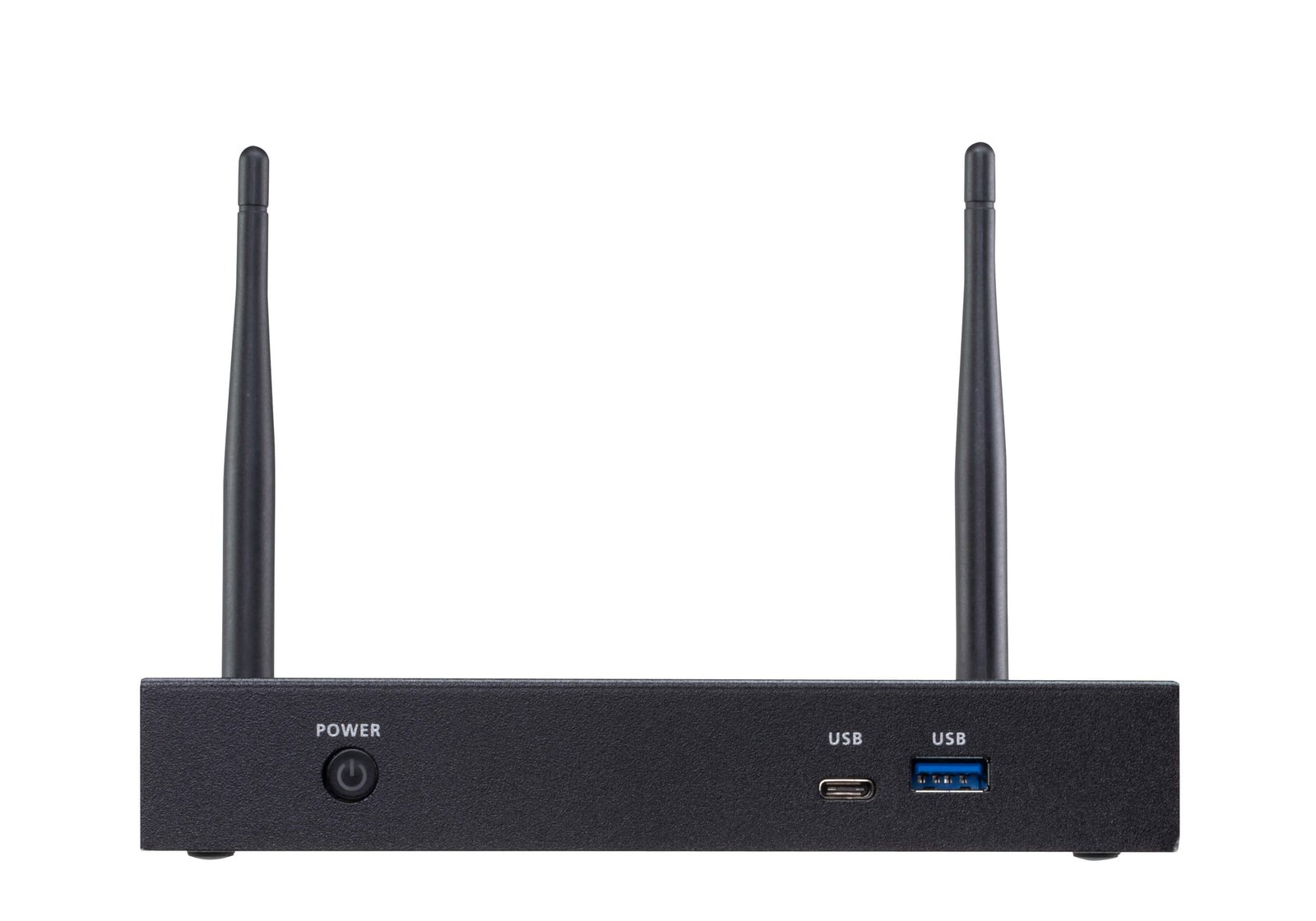

Name: ATEN VP2020 wireless presentation system HDMI + VGA (D-Sub) Desktop
Brand: ATEN
SKU: VP2020
Price: 692.96 CAD
Availability: InStock

888-370-2261 info@itlogixs.ca 157 Edith Way NW, Calgary, AB, T3R 2B8

Home /Computers & IT Hardware /Desktops & Workstations /ATEN VP2020 wireless presentation system HDMI + VGA (D-Sub) Desktop

Product Details

ATEN VP2020. Form factor: Desktop, Product colour: Black, Housing material: Metal. Maximum resolution (VGA): 1920 x 1080 pixels, Maximum resolution (HDMI): 4096 x 2160 pixels, Supported graphics resolutions: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280.... Antenna type: External. Wi-Fi standards: Wi-Fi 5 (802.11ac), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Frequency band: 2.4/5 GHz. Interface: HDMI + VGA (D-Sub)

Product Specifications

Manufacturer	ATEN
Manufacturer Part Number	VP2020
GTIN / Barcode	0672792014185
Brand Name	ATEN
Product Name	ATEN VP2020 wireless presentation system HDMI + VGA (D-Sub) Desktop

Design
Mfr. Part Number	VP2020
GTIN / Barcode	0672792014185
Form factor	Desktop
Product colour	Black
Housing material	Metal
LED indicators	Power
Features
Maximum resolution (VGA)	1920 x 1080 pixels
Maximum resolution (HDMI)	4096 x 2160 pixels
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
AirPlay mirroring	Yes
Google Cast	Yes
Number of simultaneously connected devices (max)	2
Management features
Web-based management	Yes
On/off switch	Yes
Antenna
Antenna type	External
Antennas quantity	2
Network
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Frequency band	2.4/5 GHz
Security algorithms	WEP, WPA, WPA2, WPA2-PSK
Maximum operating distance	30 m

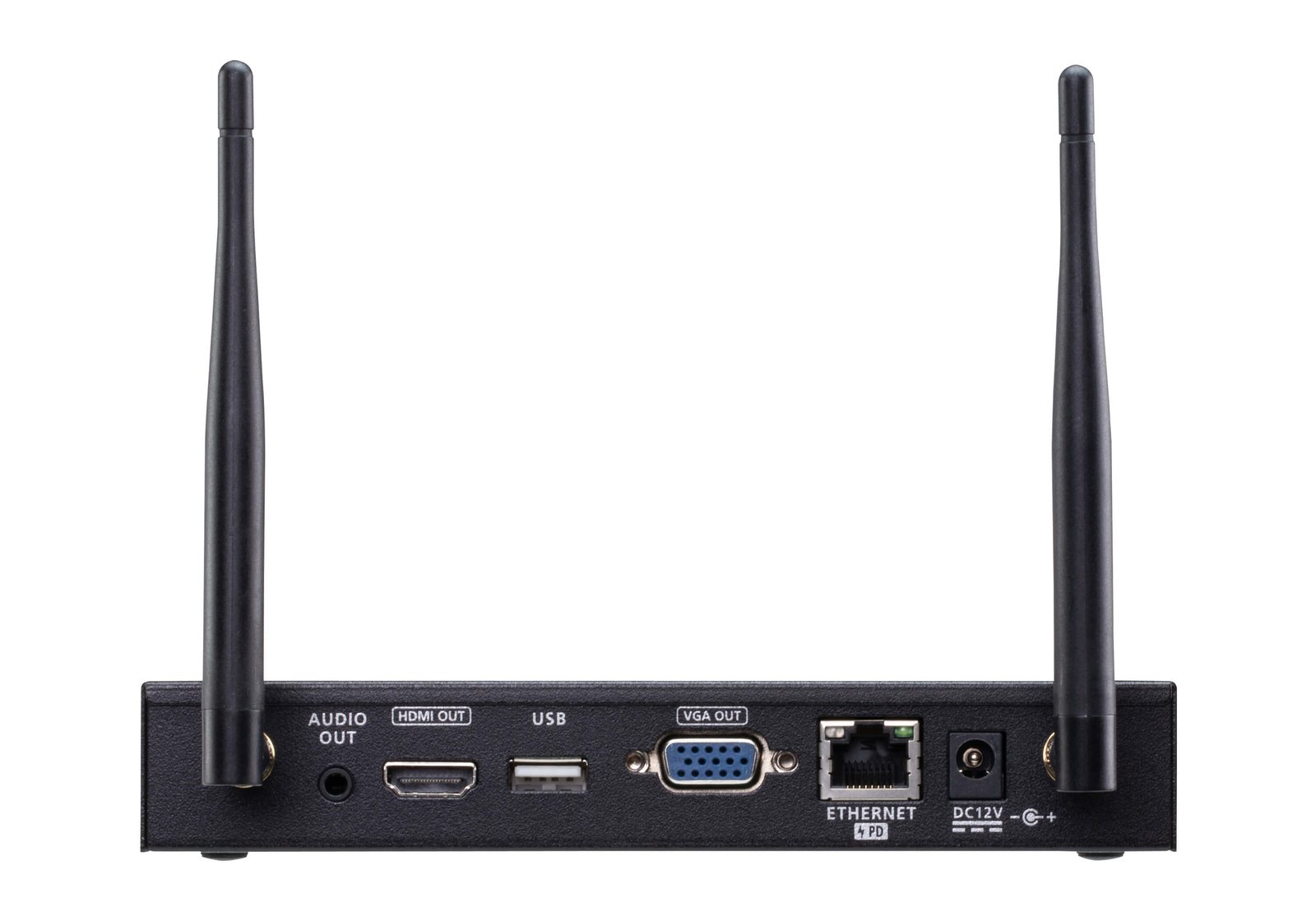

Ports & interfaces
Interface	HDMI + VGA (D-Sub)
Number of HDMI outputs	1
VGA (D-Sub) output ports	1
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Headphone outputs	1
DC-in jack	Yes
Power
Power source type	DC
Input voltage	12 V
Power consumption (typical)	12 W
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	-20 - 60%
Storage temperature (T-T)	0 - 80 °C
Weight & dimensions
Width	104 mm
Depth	170 mm
Height	28.3 mm
Weight	470 g
Package weight	1.15 kg
Packaging content
AC adapter included	Yes
Quick start guide	Yes
Logistics data
Country of origin	Taiwan
Products per master (outer) case	5 pc(s)
Master (outer) case gross weight	6.37 kg
Master (outer) case length	500 mm
Master (outer) case width	232 mm
Master (outer) case height	283 mm
Brand	ATEN
Availability	In Stock
Price Currency	CAD
Category	Desktops & Workstations
