Product Details

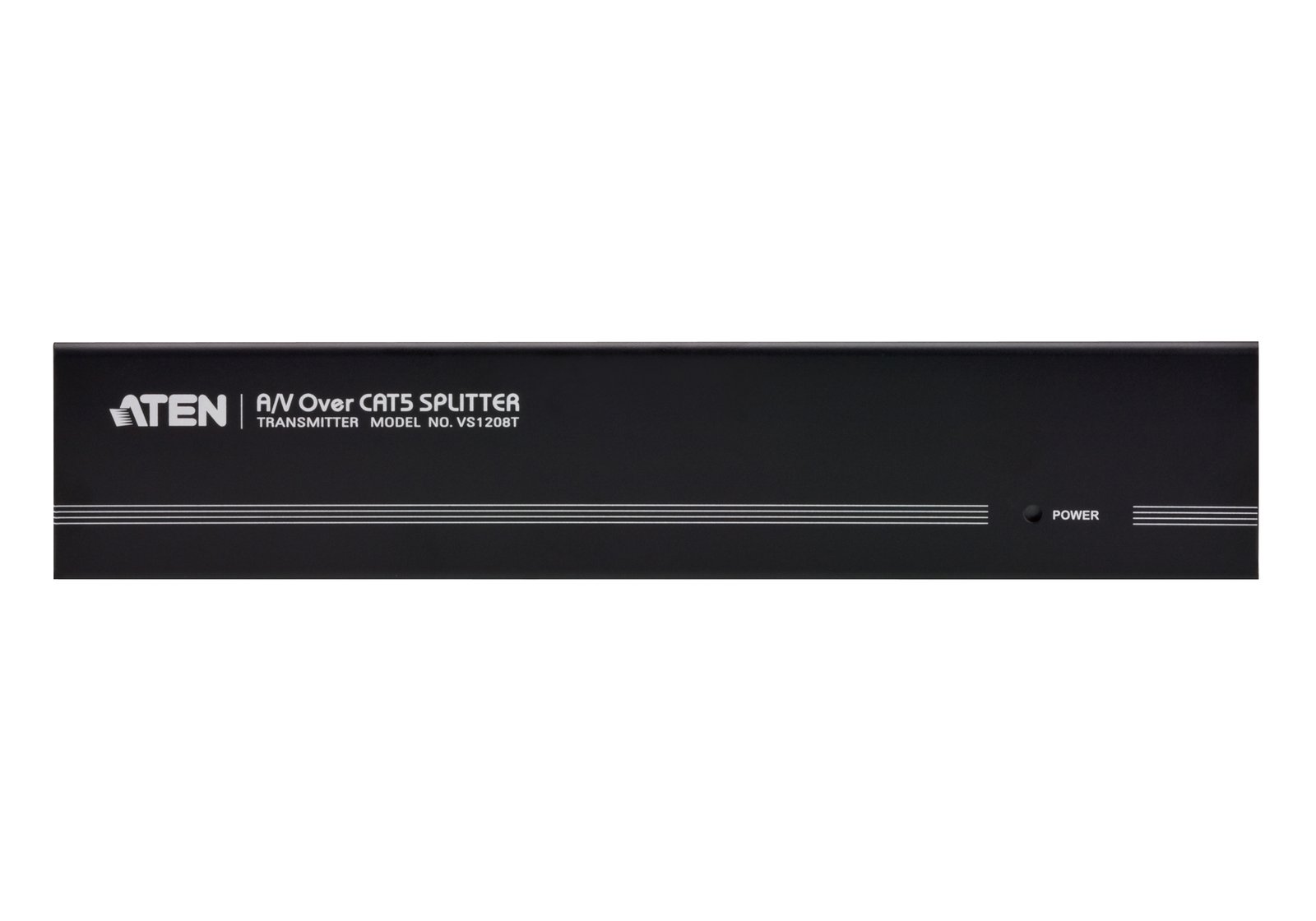

The VS1208T A/V Over Cat 5 Splitter is a splitter designed to connect one source to 8 displays over a long distance. Incorporating suggested compatible receivers*, the VS1208T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.
* Suggested Compatible Receiver Units:
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
VE172R A/V Over Cat 5 Receiver with Cascade
* Suggested Compatible Receiver Units:
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
VE172R A/V Over Cat 5 Receiver with Cascade
Product Specifications
| Manufacturer | ATEN |
|---|---|
| Manufacturer Part Number | VS1208T |
| GTIN / Barcode | 0672792002601 |
| Brand Name | ATEN |
| Product Name | ATEN VS1208T video splitter VGA |
| Mfr. Part Number | VS1208T |
|---|---|
| GTIN / Barcode | 0672792002601 |
| Ports & interfaces | |
| Video port type | VGA |
| Video out | VGA |
| Ethernet LAN (RJ-45) ports | 8 |
| Video ports quantity | 2 |
| Audio ports quantity | 2 |

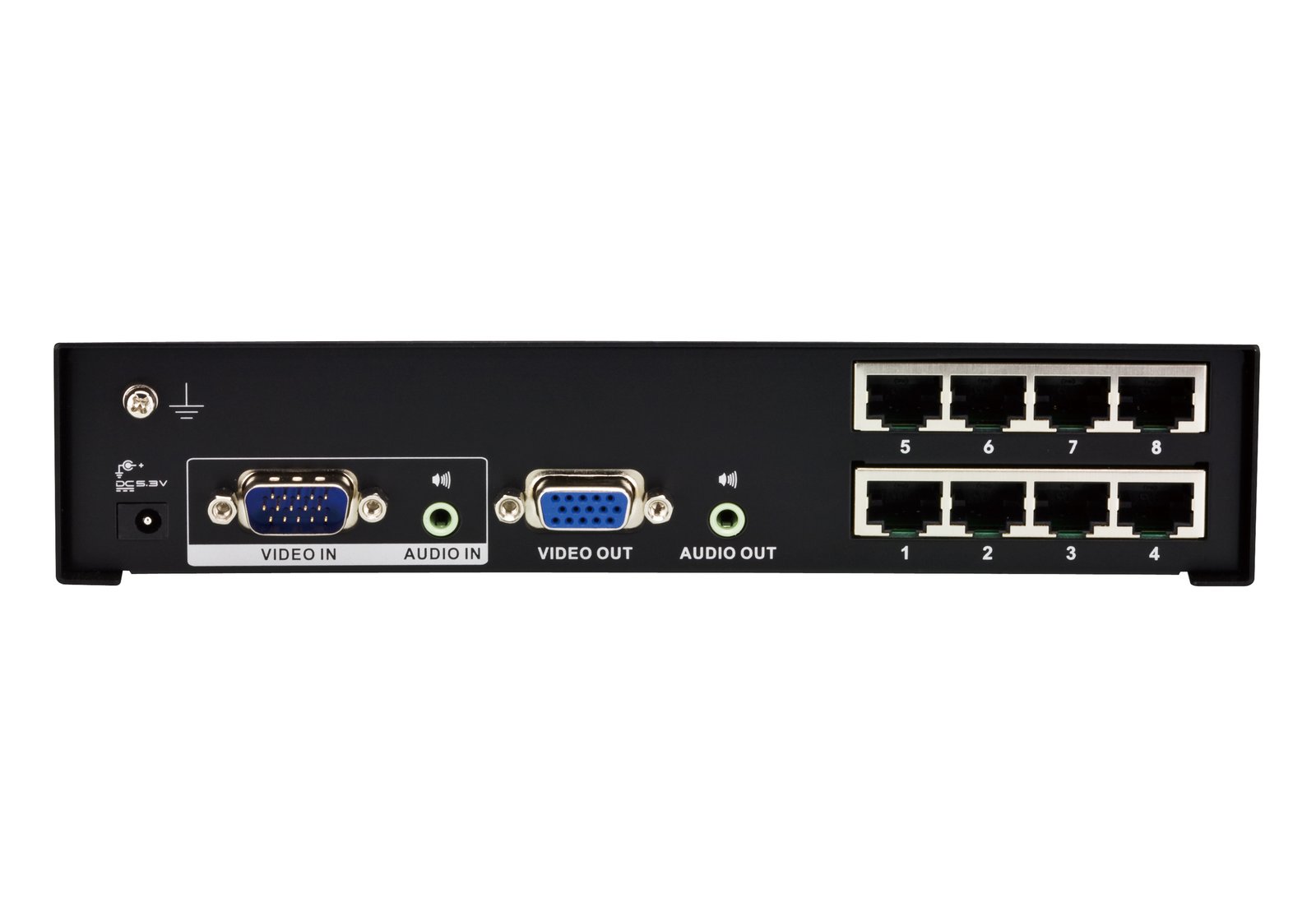

| Connector(s) | HDB-15, Mini Audio, RJ-45, DC-in |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Maximum resolution | 1920 x 1200 pixels |
| Full HD | Yes |
| Maximum operating distance | 300 m |
| Bandwidth | 225 MHz |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Power LED | Yes |
| Plug and Play | Yes |
| Certification | RoHS |
| Network | |
| Cable types supported | Cat5e |
| Power | |
| AC input voltage | 5 V |
| Power consumption (typical) | 1.64 W |
| Weight & dimensions | |
| Dimensions (WxDxH) | 74.5 x 200 x 42 mm |
| Weight | 640 g |
| Packaging content | |
| User guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Brand | ATEN |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Computers & IT Hardware |
