/Brainboxes Compact 1 Port RS422/485 High Retention USB 1MBaud
Brainboxes

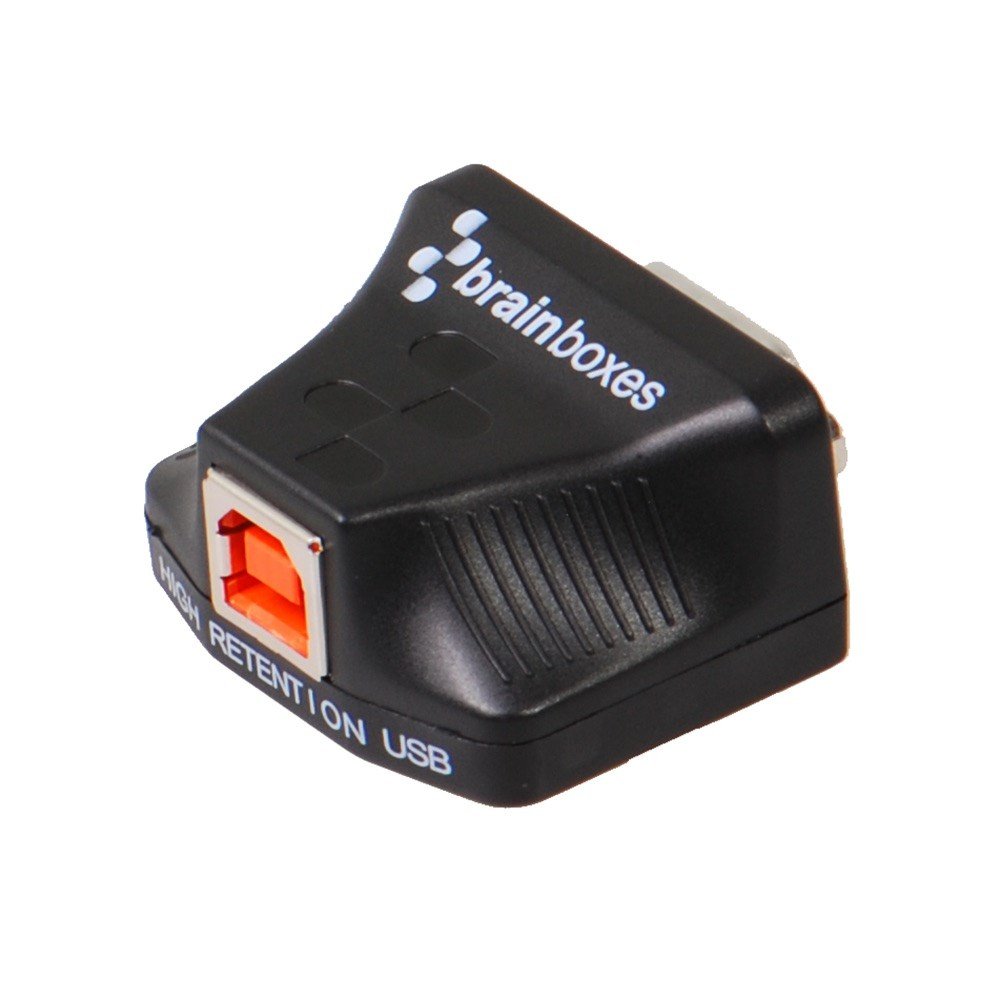

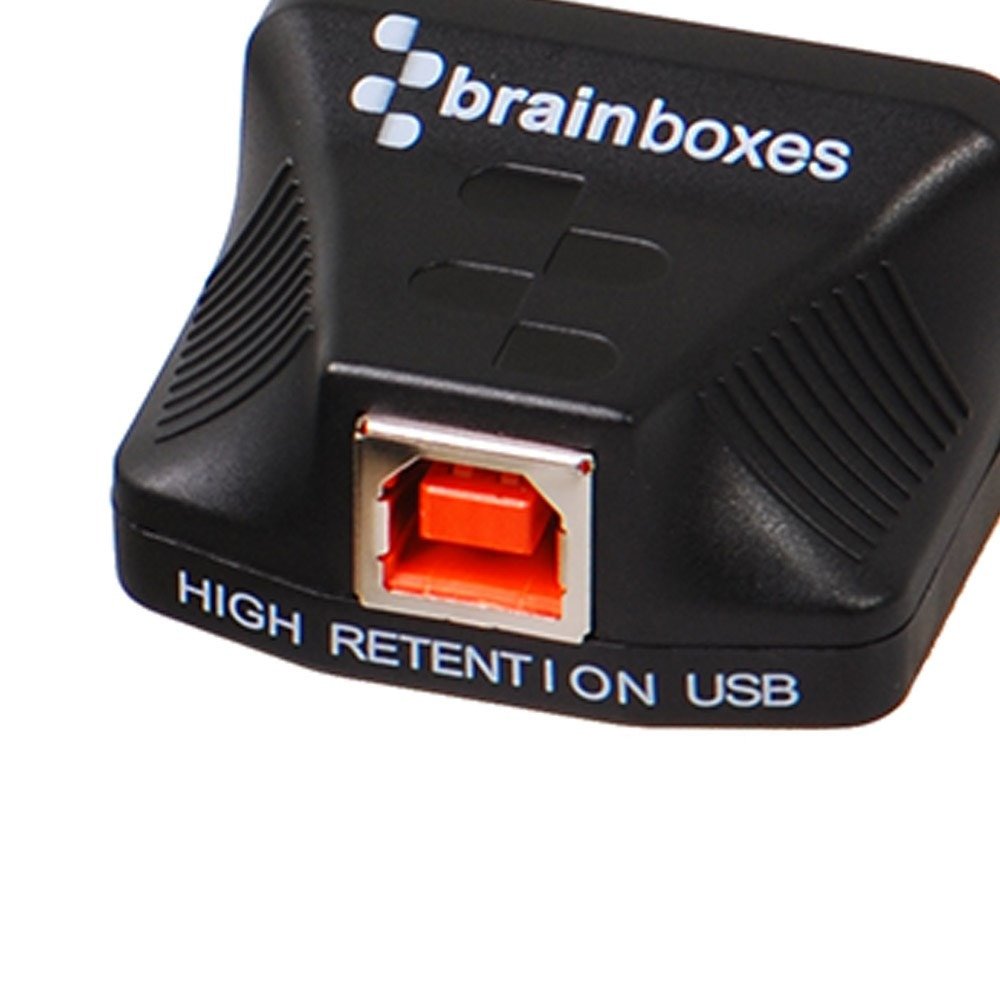

Brainboxes Compact 1 Port RS422/485 High Retention USB 1MBaud US-320
CA$145.99
Save 5%
CA$139.01
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details
Tough ultra small USB to serial adapter suitable for any environment. The closest you can get to an integrated RS422/485 serial COM port. High retention USB connector for an unbreakable connection.
Have confidence, this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte Tx and Rx and high data throughput. Works across the full spectrum of baud rates up to 921,600 including standard and arbitrary values.
We provide our own software drivers - eliminating many common problems with USB to Serial - giving you have a reliable, stable, native com port solution.
Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux.
Have confidence, this product will match whatever baud rate your equipment needs without data loss. Includes large 512 byte Tx and Rx and high data throughput. Works across the full spectrum of baud rates up to 921,600 including standard and arbitrary values.
We provide our own software drivers - eliminating many common problems with USB to Serial - giving you have a reliable, stable, native com port solution.
Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux.
Product Specifications
| Manufacturer | Brainboxes |
|---|---|
| Manufacturer Part Number | US-320 |
| GTIN / Barcode | 0837324003666 |
| Brand Name | Brainboxes |
| Product Name | Brainboxes Compact 1 Port RS422/485 High Retention USB 1MBaud |
| Mfr. Part Number | US-320 |
|---|---|
| GTIN / Barcode | 0837324003666 |
| Ports & interfaces | |
| Connector 1 | RS-422/485 |
| Connector 2 | USB |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| USB version | 2.0 |
| Cable length | 0.5 m |
| Performance | |
| Product colour | Black |
| Data transfer rate | 0.48 Gbit/s |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Baud rate | 921.6 Kbit/s |
| Parity bit | Even, Mark, No, Odd, Space |
| FIFO (First In, First Out) | 512 B |
| Compatible operating systems | Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Raspberry Pi Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux |
| Power | |
| Output voltage | 5 V |
| Output current | 80 mA |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), CE, UKCA |
| Weight & dimensions | |
| Width | 41 mm |
| Depth | 38 mm |
| Height | 22 mm |
| Weight | 24 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Cables included | USB Type-A to USB Type-B |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 45 mm |
| Package weight | 156 g |
| Logistics data | |
| Export Control Classification Number (ECCN) | 4A994 |
| Harmonized System (HS) code | 84718 |
| Brand | Brainboxes |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Cables & Connectivity |
