Name: Brainboxes Industrial Ethernet Media Converter SW-581
Brand: Brainboxes
SKU: SW-581
Price: 199.44 CAD
Availability: InStock

888-370-2261 info@itlogixs.ca 157 Edith Way NW, Calgary, AB, T3R 2B8

Home /Networking & Communications /Brainboxes Industrial Ethernet Media Converter

Product Details

Industrial Gigabit SFP Media Converter

Cost-effective connectivity - economical way to integrate devices into a fibre optic network. Scalability: Combine with other switches in the range to create a comprehensive and future-proof network solution

Galvanically Isolated Ethernet brainboxes-SW-581-front-panel-ethernet-port-status-leds. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

Product Specifications

Manufacturer	Brainboxes
Manufacturer Part Number	SW-581
GTIN / Barcode	0837324005042
Brand Name	Brainboxes
Product Name	Brainboxes Industrial Ethernet Media Converter

Network
Mfr. Part Number	SW-581
GTIN / Barcode	0837324005042
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10,100,1000 Mbit/s
Fiber ethernet cabling technology	1000BASE-X
Jumbo frames support	Yes
Jumbo frames	9000
Auto MDI/MDI-X	Yes
Features
Internal	No
Plug and Play	Yes
Product colour	Yellow
Housing material	Polyamide
International Protection (IP) code	IP20
DIN rail mounting	Yes
Power protection features	Over current
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP
Power
Output voltage	5 - 30 V
Power consumption (max)	3.3 W
Power over Ethernet (PoE)	No

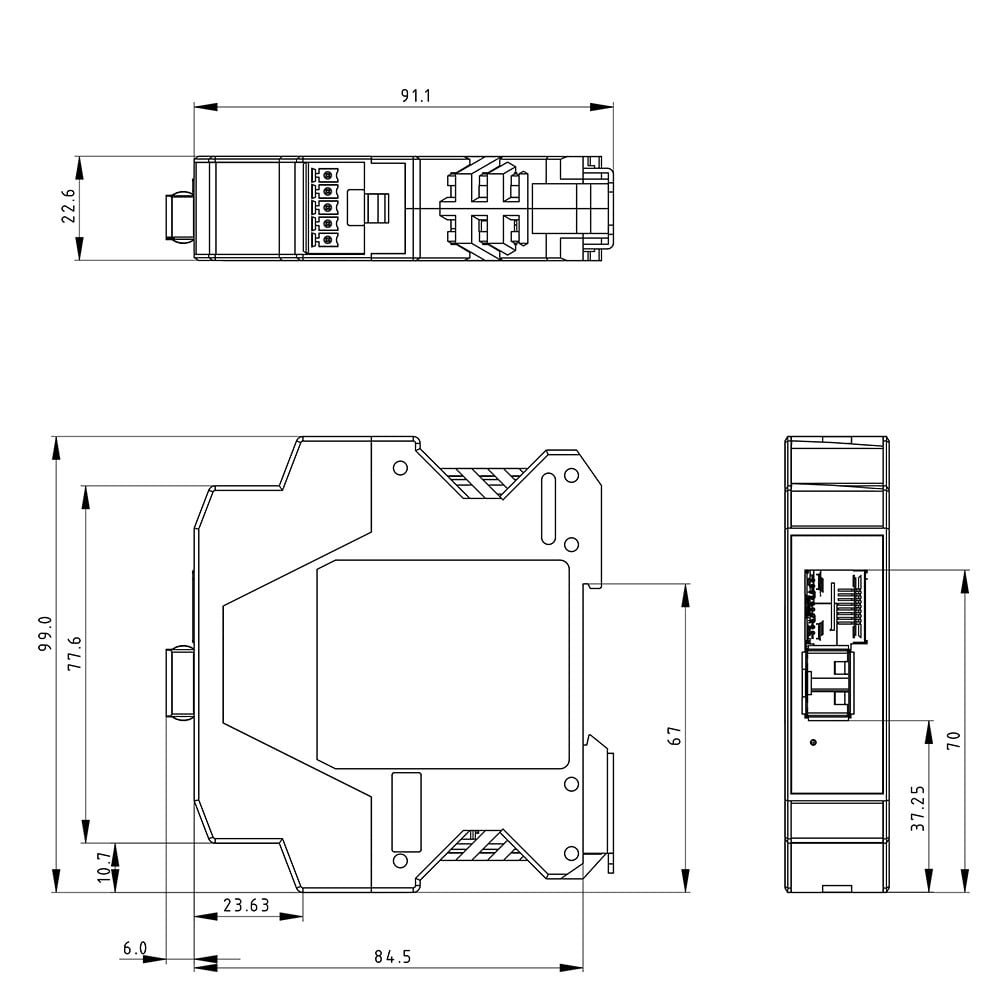

Weight & dimensions
Width	99 mm
Depth	95 mm
Height	22 mm
Weight	90 g
Operational conditions
Operating temperature (T-T)	-40 - 80 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Package width	160 mm
Package depth	135 mm
Package height	49 mm
Package weight	187 g
Certificates
Compliance certificates	CE, UKCA, RoHS, REACH, WEEE
Logistics data
Country of origin	United Kingdom
Export Control Classification Number (ECCN)	5A991.b
Harmonized System (HS) code	851762
Other features
Form factor	DIN rail
MAC address table	1000 entries
Brand	Brainboxes
Availability	In Stock
Price Currency	CAD
Category	Networking & Communications
