Brainboxes

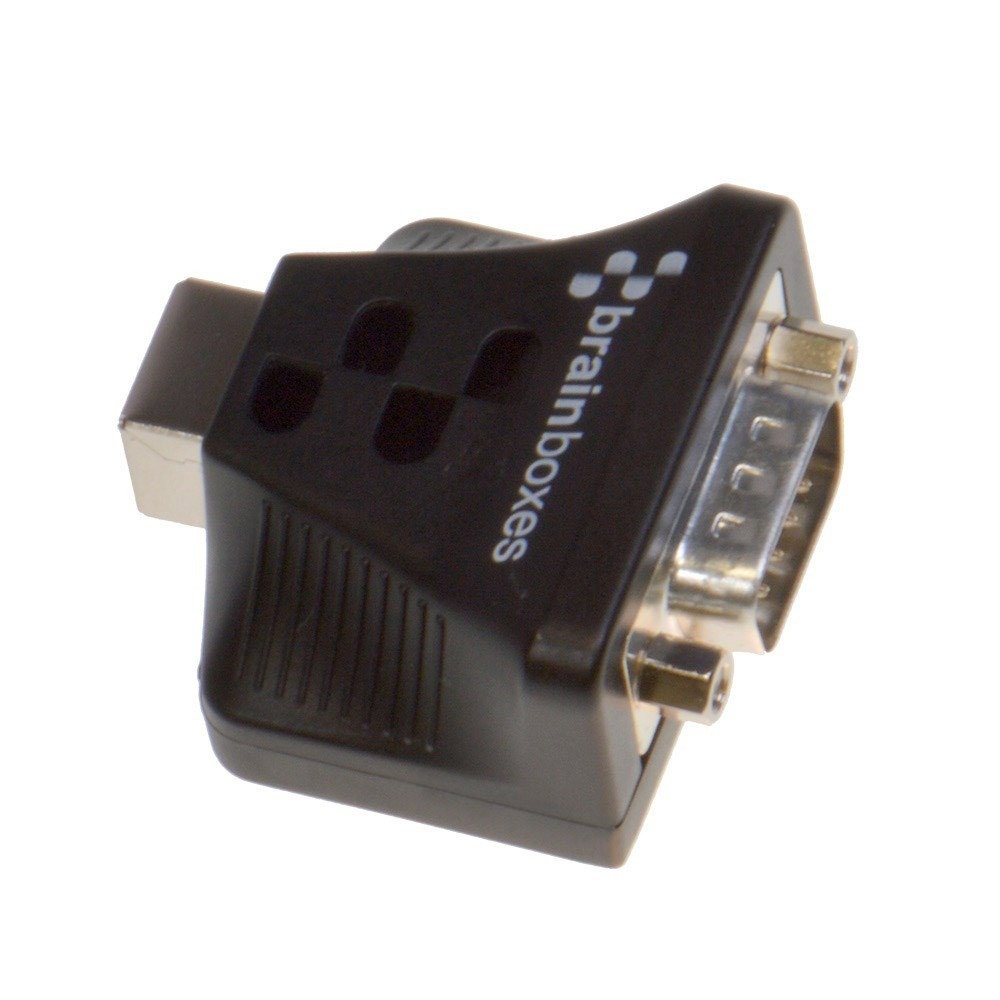

Brainboxes Isolated High Retention USB 1 Port RS232 US-159
CA$194.99
Save 5%
CA$186.16
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details
Tough ultra small isolated USB to serial adapter suitable for any environment. The closest you can get to an integrated serial port. High retention USB connector for an unbreakable connection.Avoid electrical damage to your expensive equipment with isolation. Brainboxes US-159 is fully compliant with IEC 61000-4-2, meaning your equipment is immune to electrostatic discharge up to 8kV of contact discharge or 15kV of air discharge.We provide our own software drivers - eliminating many common problems with USB to Serial - giving you have a reliable, stable, native com port solution.Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7, Windows 8 and Windows 10 with additional drivers for Raspberry Pi, Mac OS X and Linux.
Product Specifications
| Manufacturer | Brainboxes |
|---|---|
| Manufacturer Part Number | US-159 |
| GTIN / Barcode | 0837324003802 |
| Brand Name | Brainboxes |
| Product Name | Brainboxes Isolated High Retention USB 1 Port RS232 |
| Mfr. Part Number | US-159 |
|---|---|
| GTIN / Barcode | 0837324003802 |
| Ports & interfaces | |
| Connector 1 | DB9 |
| Connector 2 | USB A |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.5 m |
| Performance | |
| Product colour | Black |
| Data transfer rate | 0.48 Gbit/s |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Baud rate | 921.6 Kbit/s |
| Parity bit | Even, Mark, No, Odd, Space |
| Compatible operating systems | Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Raspberry Pi Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux |
| Power | |
| Output voltage | 5 V |
| Output current | 100 mA |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), CE, UKCA |
| Weight & dimensions | |
| Width | 41 mm |
| Depth | 42 mm |
| Height | 22 mm |
| Weight | 24 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |

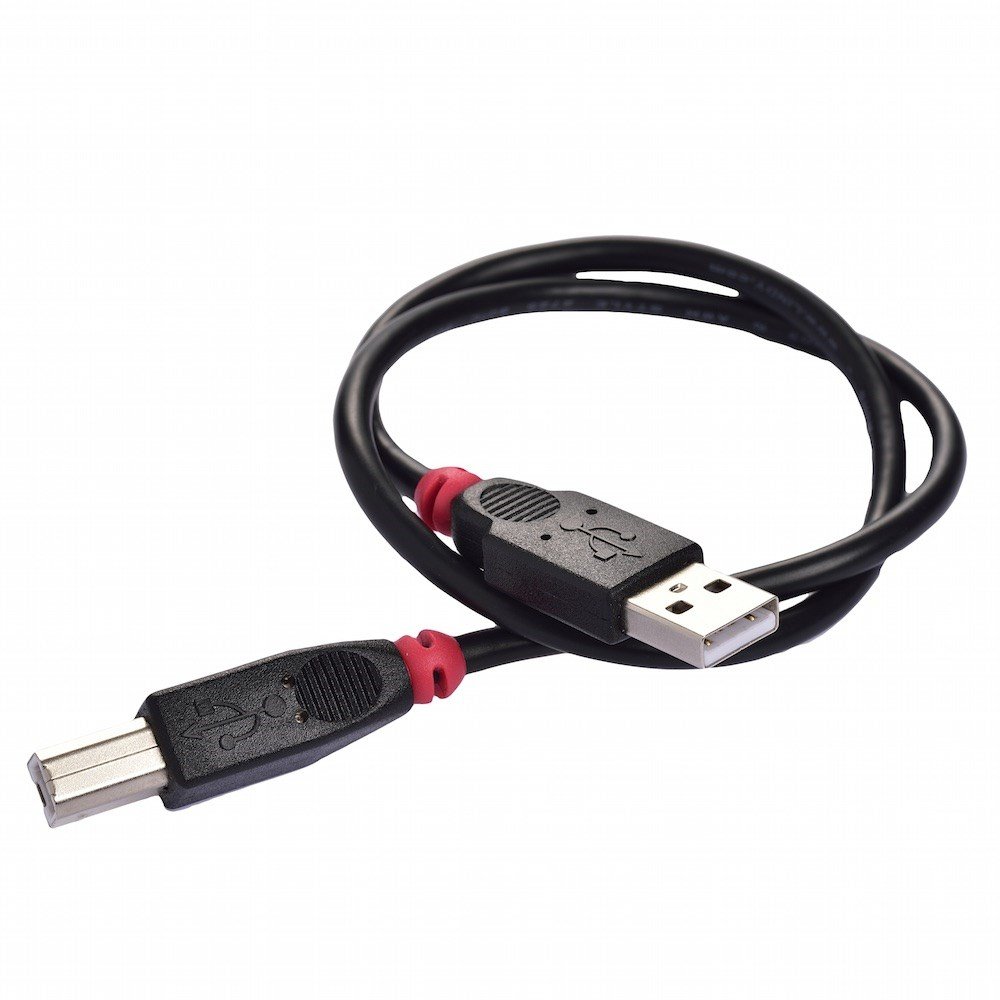

| Cables included | USB Type-A to USB Type-B |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 155 g |
| Technical details | |
| International Protection (IP) code | IP50 |
| Logistics data | |
| Export Control Classification Number (ECCN) | 4A994 |
| Harmonized System (HS) code | 84718 |
| Brand | Brainboxes |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Cables & Connectivity |
