Name: Brainboxes USB-C to 2 Port RS232 Serial Server Hub US-757
Brand: Brainboxes
SKU: US-757
Price: 104.13 CAD
Availability: InStock

888-370-2261 info@itlogixs.ca 157 Edith Way NW, Calgary, AB, T3R 2B8

Home /Computers & IT Hardware /Servers /Brainboxes USB-C to 2 Port RS232 Serial Server Hub

Product Details

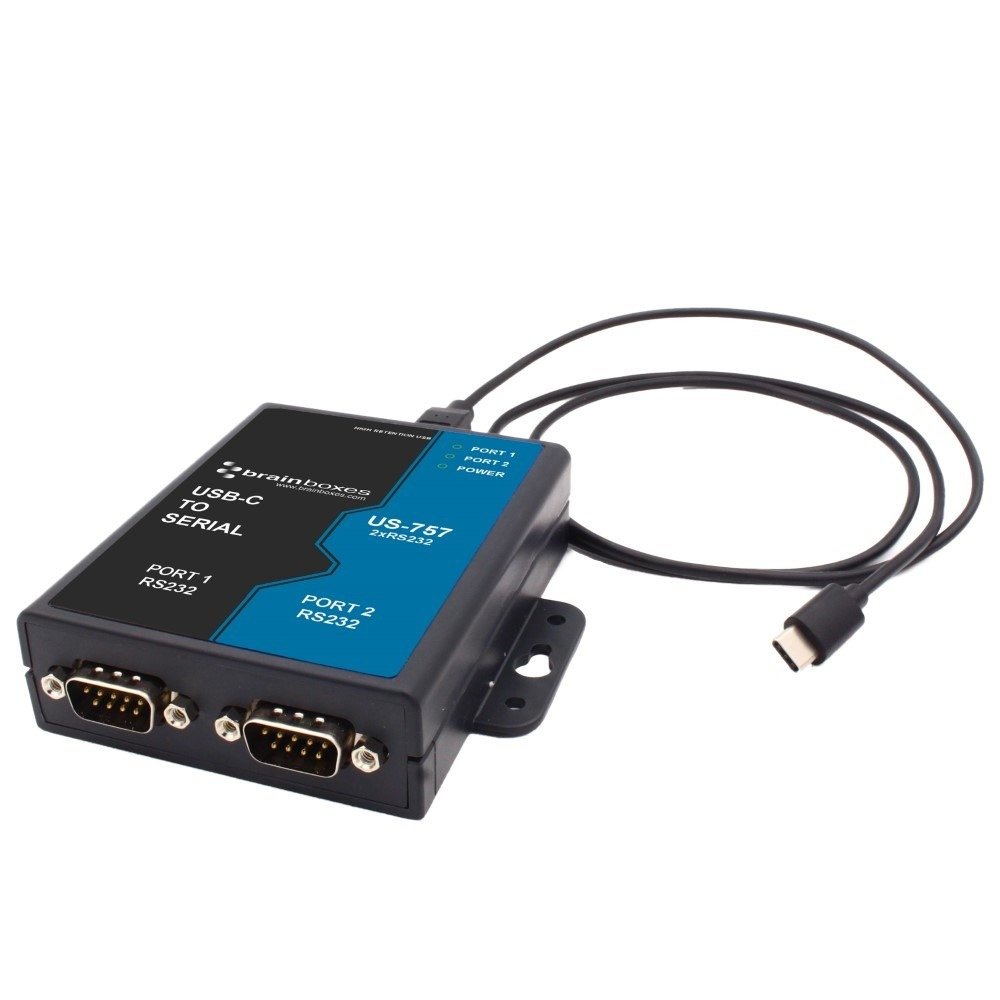

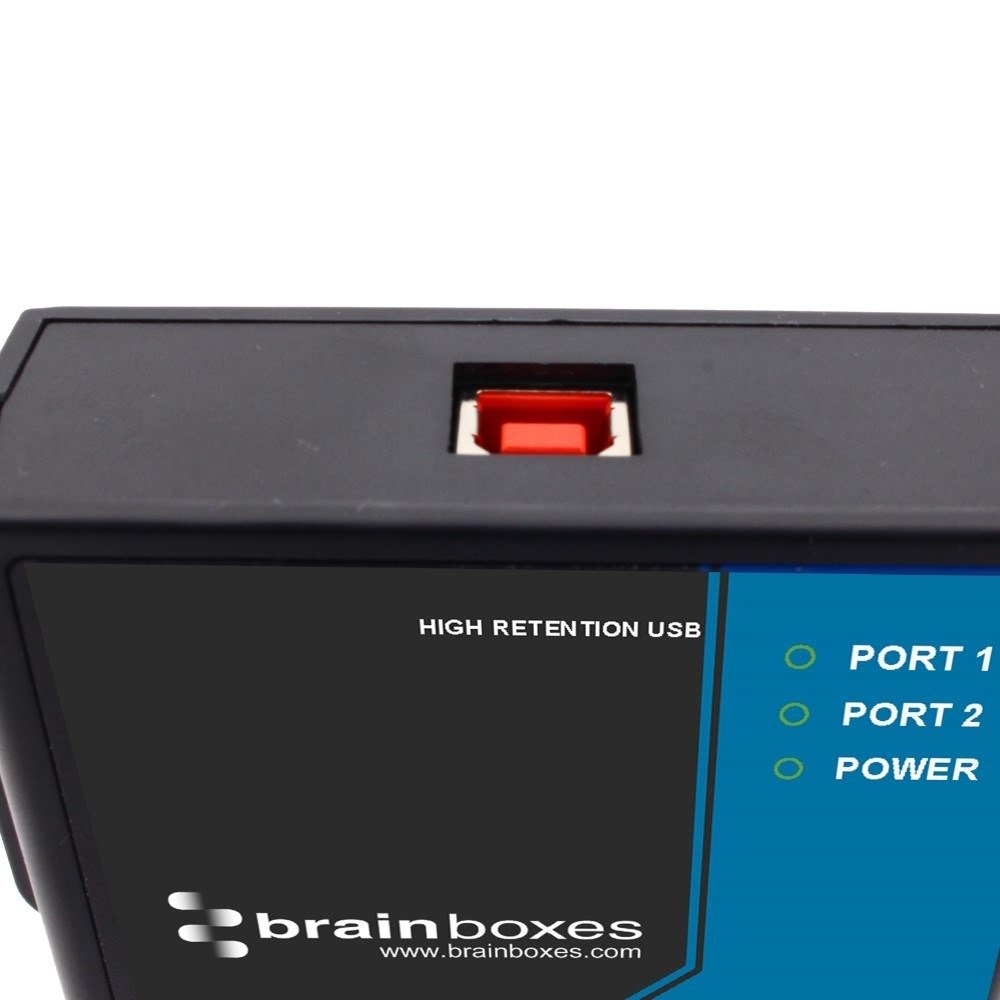

USB-C to Serial adapter providing two RS232 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte transmit and 384 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC. High retention USB port gives a secure connection.Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 8, Windows 8.1, Windows 10, Windows Server 2016, Windows Server 2019.

Product Specifications

Manufacturer	Brainboxes
Manufacturer Part Number	US-757
GTIN / Barcode	0837324004625
Brand Name	Brainboxes
Product Name	Brainboxes USB-C to 2 Port RS232 Serial Server Hub

Ports & interfaces
Mfr. Part Number	US-757
GTIN / Barcode	0837324004625
Host interface	USB Type-C
Host interface gender	Male
Output interface	Serial
Serial ports quantity	2
Serial interface type	RS-232
Design
Internal	No
Product colour	Black
LED indicators	Status
Country of origin	United Kingdom
Features
Baud rate	1000 Kbit/s
FIFO (First In, First Out)	256 B
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Flow control support	Yes
Parity bit	Even, Mark, No, Odd, Space
Flow Control type	DTR/DSR, RTS/CTS, XON/XOFF
Plug and Play	Yes
Export Control Classification Number (ECCN)	4A994
Power
Output voltage	3.3 V
USB powered	Yes
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-40 - 80 °C
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2008, Windows Server 2008 x64
Technical details
Compliance certificates	RoHS, CE, Federal Communications Commission (FCC)
Weight & dimensions
Width	102 mm
Depth	100 mm
Height	27 mm
Weight	109 g
Packaging data
Cables included	USB Type-A to USB Type-B
Package width	160 mm
Package depth	49 mm
Package height	135 mm
Package weight	260 g
Logistics data
Harmonized System (HS) code	84718
Other features
Cable length	1 m
Brand	Brainboxes
Availability	In Stock
Price Currency	CAD
Category	Servers
