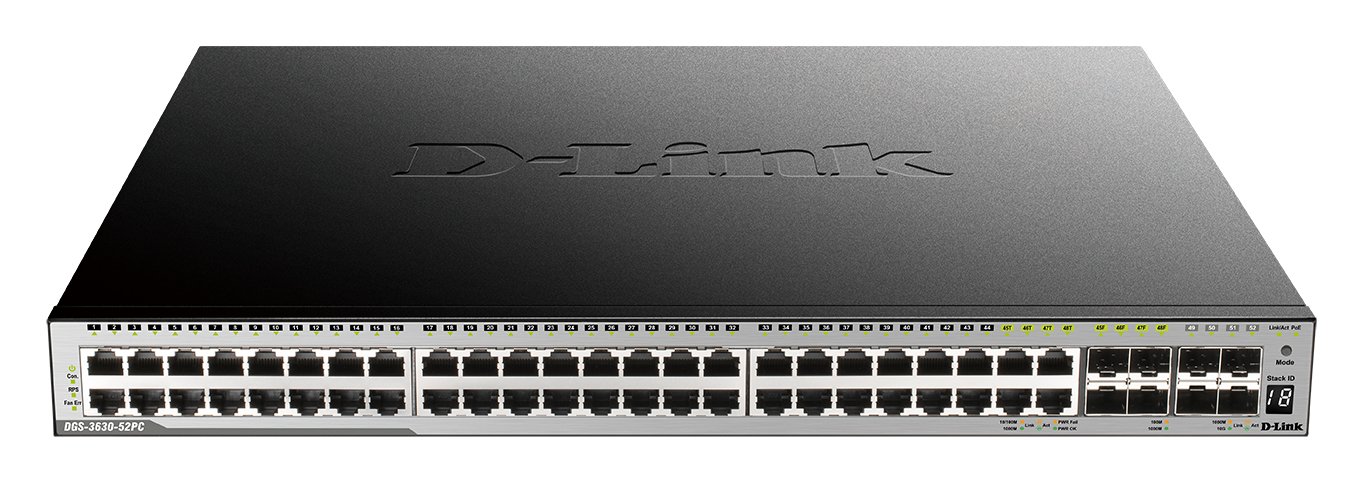

D-Link 48-Port PoE L3 Stackable Managed Gigabit Switch including 4 x 1000BaseT/SFP & 10GE SFP+
Product details
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.
Versatile Management
The DGS-3630 Series provides:
- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.
High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.
Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Specifications
| Manufacturer | D-Link |
|---|---|
| Manufacturer Part Number | DGS-3630-52PC/SI |
| Barcode | 0790069435027 |
| Brand Name | D-Link |
| Product Name | D-Link 48-Port PoE L3 Stackable Managed Gigabit Switch including 4 x 1000BaseT/SFP & 4 x 10GE SFP+ |
| Mfr. Part Number | DGS-3630-52PC/SI |
|---|---|
| Barcode | 0790069435027 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | SFP+ |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Routing entries | 16000 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Head-of-line (HOL) blocking | Yes |
| Auto-negotiation | Yes |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.95 Mpps |
| MAC address table | 68000 entries |
| Store-and-forward | Yes |
| Static route | Yes |
| Number of static routes | 512 |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Security | |
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SNMPv3, SSH, SSL/TLS |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black, Grey |
| Number of fans | 4 fan(s) |
| Safety | cUL, CB, CE, CCC, BSMI |
| Electromagnetic compatibility | CE, FCC A, C-Tick, VCCI, BSMI, CCC |
| Performance | |
| Physical stacking (units) | 9 |
| Virtual stacking (units) | 32 |
| Built-in processor | Yes |
| Power | |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 380 mm |
| Height | 44 mm |
| Weight | 6.3 kg |
| Packaging data | |
| Package width | 538 mm |
| Package depth | 560 mm |
| Package height | 170 mm |
| Package weight | 8.6 kg |
| Technical details | |
| Shipping (inner) case height | 57.2 cm |
| Shipping (inner) case width | 36.2 cm |
| Shipping (inner) case length | 57.9 cm |
| Shipping (inner) case net weight | 13.7 kg |
| Products per shipping (inner) case | 2 pc(s) |
| Pallet gross weight (air) | 355.5 kg |
| Master (outer) cases per pallet (air) | 18 pc(s) |
| Products per pallet (air) | 36 pc(s) |
| Pallet gross length | 110 cm |
| Brand | D-Link |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Transceivers & Modules |
