MSI Systems

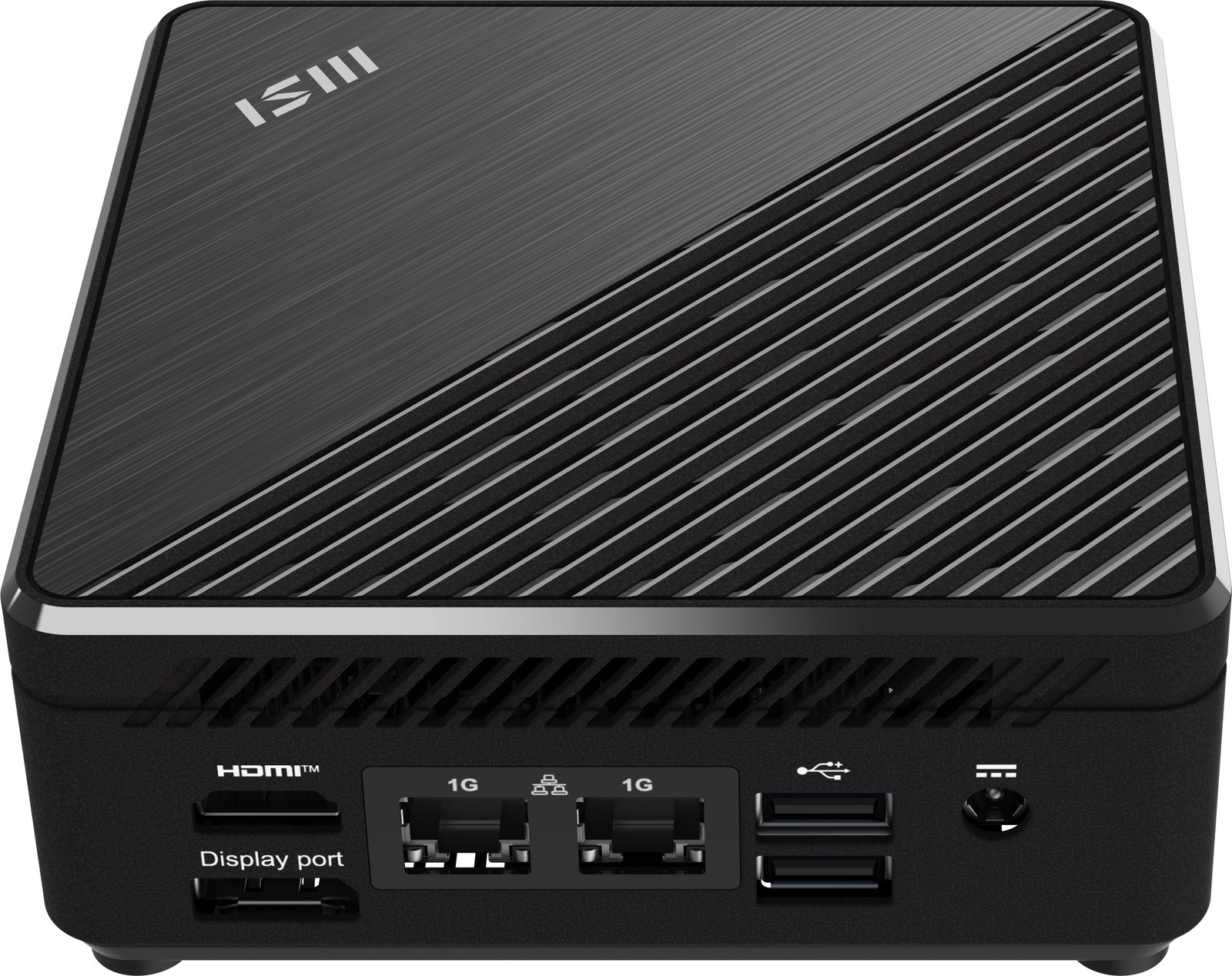

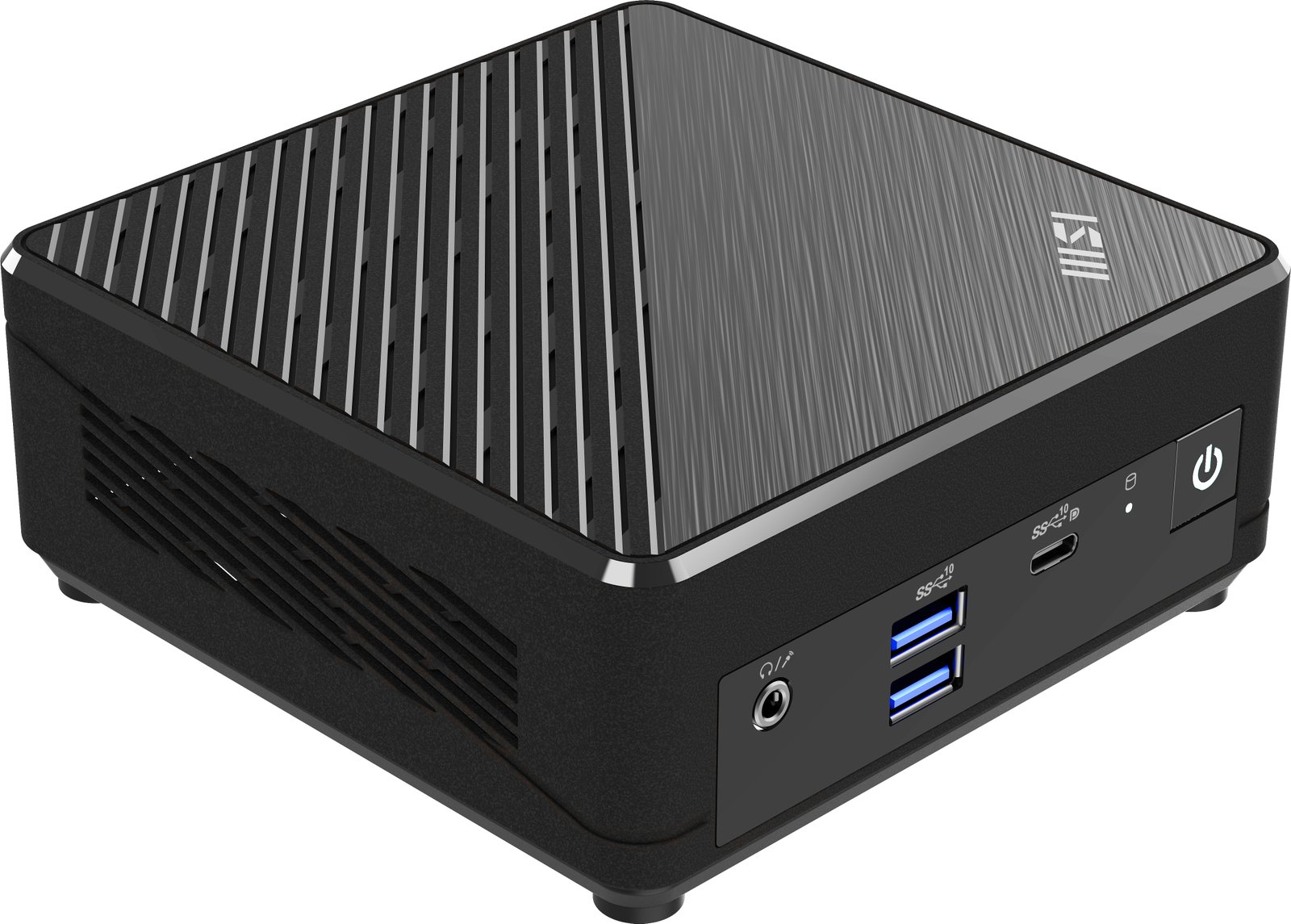

MSI CUBI N ADL S-055BUS PC/workstation barebone 0.69L sized PC Black N100
Mfr. Part# CUBINADLS055B
CA$387.99
CA$369.53
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
| Manufacturer | MSI Systems |
|---|---|
| Manufacturer Part Number | CUBNADL065 |
| GTIN / Barcode | 0824142341186 |
| Brand Name | MSI Systems |
| Product Name | MSI Cubi N ADL-065US PC/workstation Intel® N N200 4 GB DDR4-SDRAM 128 GB SSD Windows 11 Pro Mini PC Black |
| Mfr. Part Number | CUBNADL065 |
|---|---|
| GTIN / Barcode | 0824142341186 |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® N |
| Processor model | N200 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.7 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Memory | |
| Internal memory | 4 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory clock speed | 3200 MHz |
| Storage | |
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
| Performance | |
| Motherboard chipset | Intel SoC |
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
| Network | |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 1x1 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| Power | |
| Power supply | 65 W |
| Design | |
| Chassis type | Mini PC |
| Volume | 0.66 L |
| Placement supported | Horizontal/Vertical |
| VESA mounting | Yes |
| Product colour | Black |
| Software | |
| Operating system installed | Windows 11 Pro |
| Display | |
| Display included | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 124 mm |
| Depth | 124 mm |
| Height | 53.7 mm |
| Weight | 550 g |
| Packaging data | |
| Package weight | 1.4 kg |
| Certificates | |
| Certification | FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick) |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Other features | |
| Warranty period | 2 year(s) |
| Brand | MSI Systems |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Desktops & Workstations |
