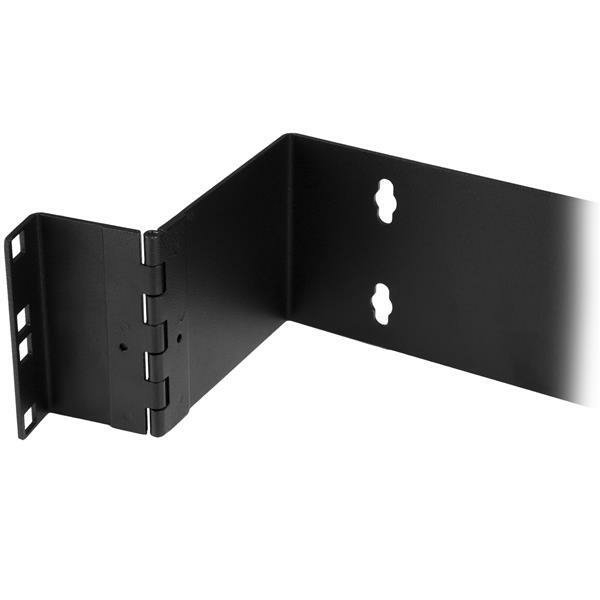

Name: StarTech.com 2U Hinged Wall Mount Patch Panel Bracket - 6 inch Deep - 19" Swing Rack for Shallow
Brand: StarTech.com
SKU: WALLMOUNTH2
Price: 46.83 CAD
Availability: InStock

888-370-2261 info@itlogixs.ca 157 Edith Way NW, Calgary, AB, T3R 2B8

Home /Networking & Communications /Network Cabling /StarTech.com 2U Hinged Wall Mount Patch Panel Bracket - 6 inch Deep - 19" Patch Panel Swing Rack for Shallow Network Equipment- 22lbs

Product Details

Wall mount a patch panel or network switch while providing hinged access to the back of the device(s)

The WALLMOUNTH2 2U 19in Hinged Wall Mounting Bracket for Patch Panels is 6in deep and sturdily designed to provide a dependable solution for mounting a patch panel, or other slim 19in networking equipment to a wall.

The patch panel wall mount features a hinged design for easy access to configuration buttons, ports and cables. The wall mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing.

Backed by a StarTech.com 2-year warranty.

Product Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	WALLMOUNTH2
GTIN / Barcode	0065030783514
Brand Name	StarTech.com
Product Name	StarTech.com 2U Hinged Wall Mount Patch Panel Bracket - 6 inch Deep - 19" Patch Panel Swing Rack for Shallow Network Equipment- 22lbs

Features
Mfr. Part Number	WALLMOUNTH2
GTIN / Barcode	0065030783514
Rack capacity	2U
Type	Wall mounted rack
Maximum weight capacity	10 kg
Product colour	Black
Material	Aluminium, Steel
Frame type	Open
Product design	2-post
Adjustable mounting rails	No
Number of fans	0 fan(s)
Cable management	No
Mounting hole shape	Square
Castor wheels	No
Certification	REACH, CE
Weight & dimensions
Width	501 mm
Depth	151 mm
Height	88 mm
Weight	1.2 kg
Mounting depth (max)	14.8 cm
Packaging data
Nuts included	Yes
Number of nuts	4
Screws included	Yes
Number of screws	8
Number of washers included	4
Manual	Yes
Package width	528 mm
Package depth	193 mm
Package height	133 mm
Package weight	1 kg
Technical details
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	85381000
Master (outer) case width	531 mm
Master (outer) case length	191 mm
Master (outer) case height	137 mm
Products per master (outer) case	1 pc(s)
Other features
Compliance industry standards	EIA/ECA-310-E
Brand	StarTech.com
Availability	In Stock
Price Currency	CAD
Category	Network Cabling
