Transform a USB-C laptop into a dual-monitor workstation with HDMI video and USB-A and USB-C ports
Connect up to two 4K 60 Hz HDMI displays through a single USB-C port, while also providing USB-C, USB-A, and Gigabit Ethernet connectivity.
Uncompressed Video Over USB-C
Connect up to two 4K 60Hz HDMI monitors through a single USB Type-C port with uncompressed video powered by your laptop's native GPU; Drive demanding workflows with high-performance visuals and no software compression
Driverless Deployment
Features plug-and-play functionality on Windows with no drivers or software required*. It is engineered for scalable, zero-touch rollouts across shared workspaces, corporate environments, and BYOD deployments.
Flexible, High-Speed I/O

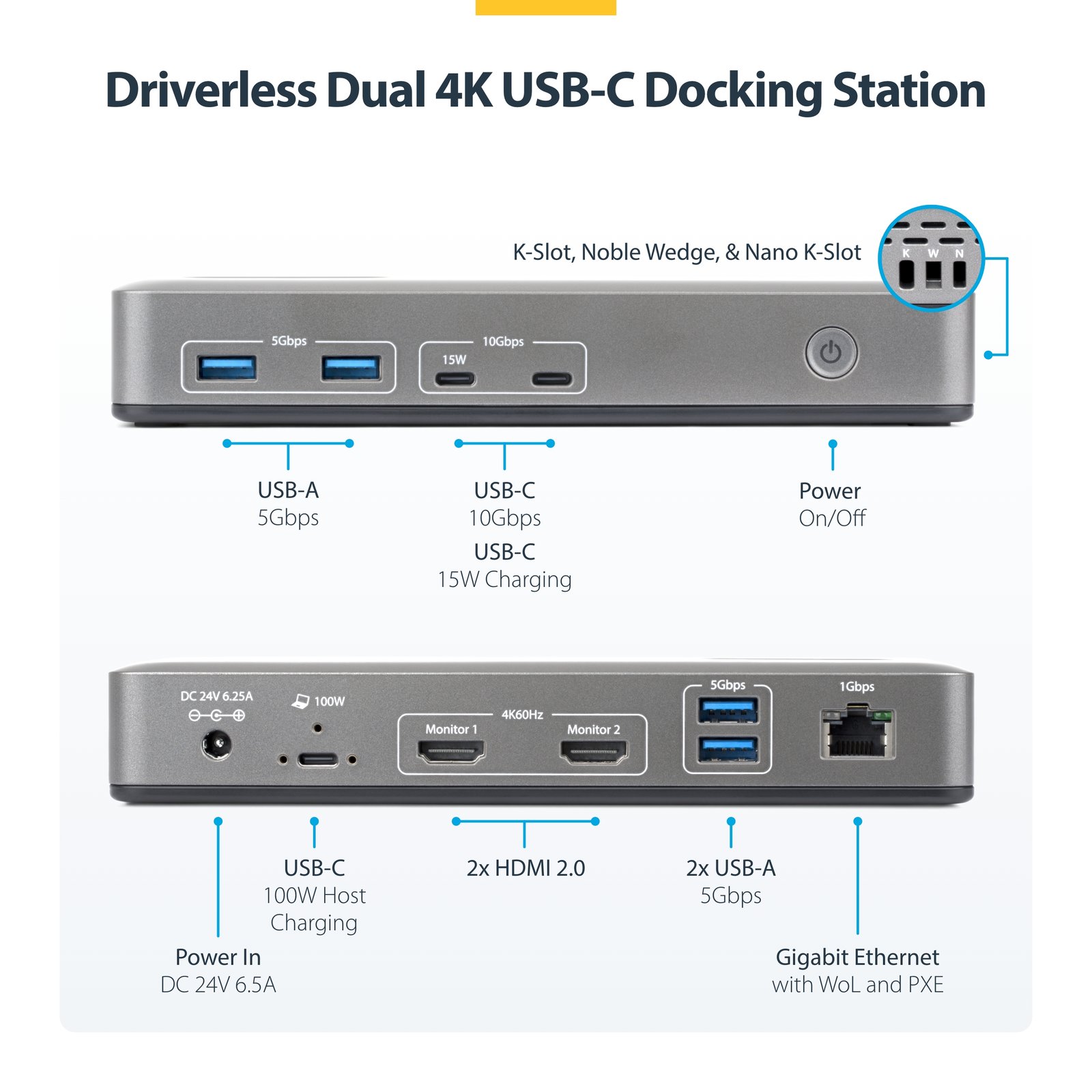

This dock is equipped with 4× USB-A 5 Gbps ports and 2× USB-C 10 Gbps ports (including one with 15 W PD), providing support for both legacy peripherals and modern high-throughput devices without compromising performance. A Gigabit Ethernet port ensures a reliable wired network connection.
Mounting and Security
This multi-monitor dock includes built-in lock slots for enhanced physical security and supports Surface or VESA mounting to keep the dock secure and out of the way. Mounting accessories are sold separately (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA).
*Note: Not compatible with macOS or ChromeOS
Product Specifications
Manufacturer
StarTech.com
Manufacturer Part Number
196N-USBC-DOCK
GTIN / Barcode
0065030921749
Brand Name
StarTech.com
Product Name
StarTech.com Dual-Monitor USB-C Docking Station, HDMI, 4K 60Hz, 100W Laptop Charging, 1GbE, Driverless, Multi-Monitor Dock For Windows
Mfr. Part Number
196N-USBC-DOCK
GTIN / Barcode
0065030921749
Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.0
USB Power Delivery up to
100 W
HDMI ports quantity
2
Microphone in
No
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Full duplex
Yes
Performance
Card reader integrated
No
Data transfer rate
1 Gbit/s
Number of displays supported
2
Cable lock slot
Yes
Cable lock slot type
Kensington, Nano, Noble, Wedge
Product colour
Grey
On/off switch
Yes
LED indicators
Power
Plug and Play
Yes
Housing material
Plastic
Power
Power source type
DC
AC input voltage
100 - 240 V
Input current
2.5 A
Output voltage
24 V
Output current
6.25 A
Power consumption (max)
150 W
Power plug type
Type N
Compatible power plug types
US
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
