Brainboxes

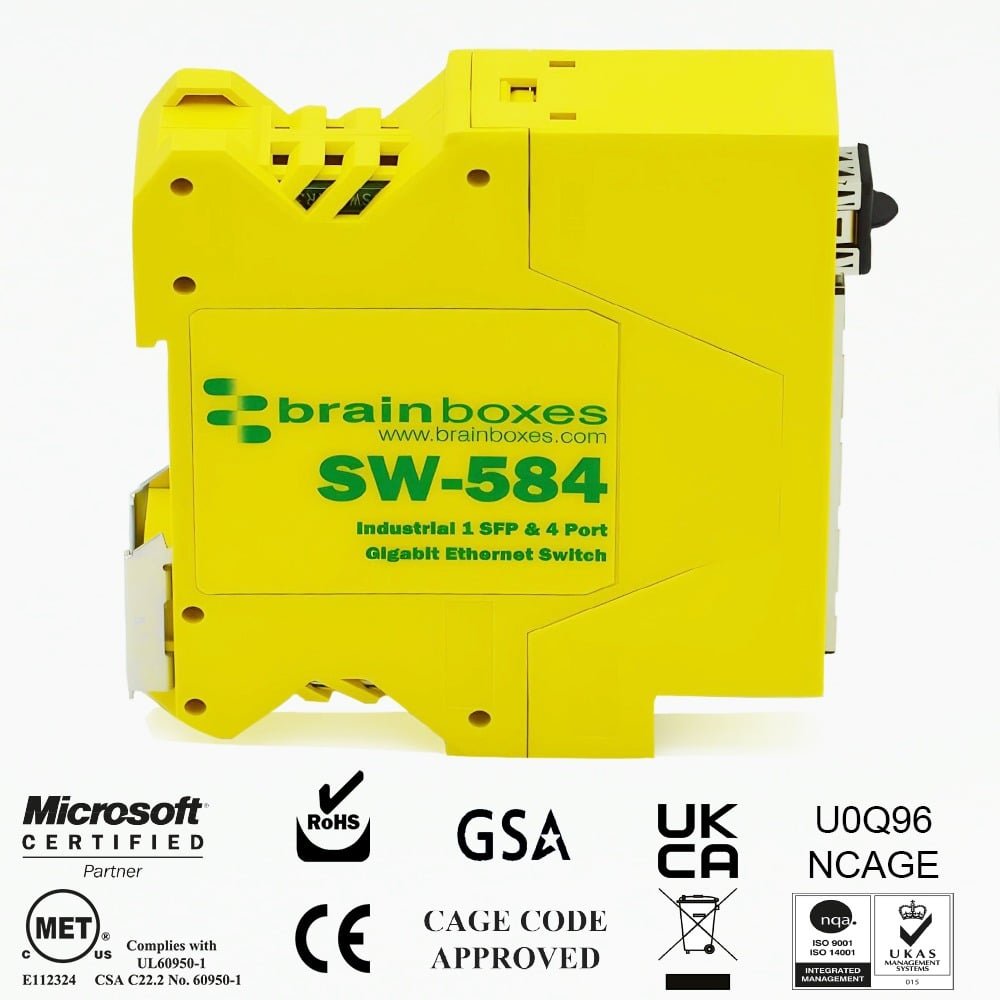

Brainboxes Industrial 1 SFP & 4 Port Gigabit Ethernet Switch SW-584
CA$169.99
Save 5%
CA$161.66
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details
Industrial Gigabit Ethernet switch.
Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.
Galvanically Isolated Ethernet brainboxes-SW-584-front-panel-ethernet-port-status-leds. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.
Galvanically Isolated Ethernet brainboxes-SW-584-front-panel-ethernet-port-status-leds. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Product Specifications
| Manufacturer | Brainboxes |
|---|---|
| Manufacturer Part Number | SW-584 |
| GTIN / Barcode | 0837324005004 |
| Brand Name | Brainboxes |
| Product Name | Brainboxes Industrial 1 SFP & 4 Port Gigabit Ethernet Switch |
| Mfr. Part Number | SW-584 |
|---|---|
| GTIN / Barcode | 0837324005004 |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Combo SFP ports quantity | 1 |
| Network | |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transmission | |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Design | |

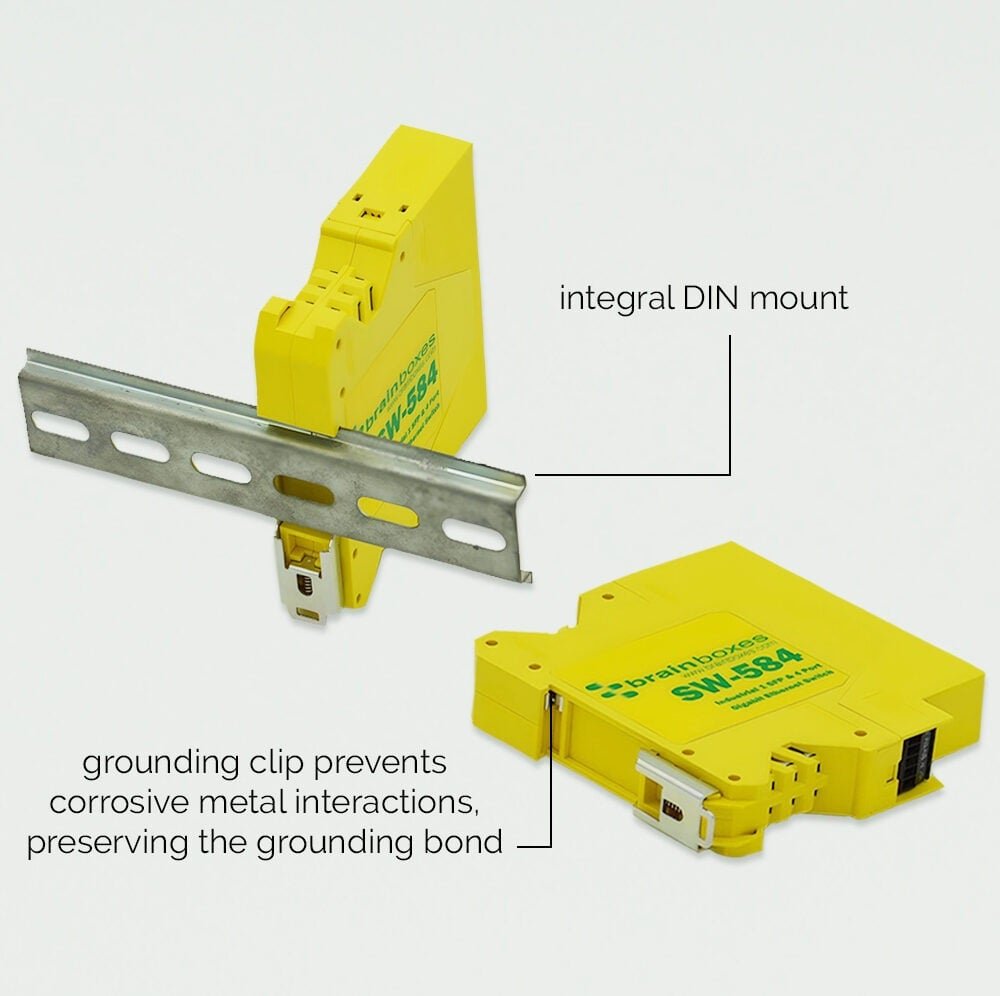

| Form factor | DIN rail |
| Product colour | Yellow |
| Housing material | Polyamide |
| International Protection (IP) code | IP20 |
| DIN rail mounting | Yes |
| Performance | |
| Export Control Classification Number (ECCN) | 5A991.b |
| Power | |
| Power source | DC |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 3.6 W |
| Power protection features | Over current |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 99 mm |
| Depth | 95 mm |
| Height | 22 mm |
| Weight | 109 g |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 135 mm |
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 204 g |
| Certificates | |
| Compliance certificates | RoHS, CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus |
| Logistics data | |
| Harmonized System (HS) code | 851762 |
| Brand | Brainboxes |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Transceivers & Modules |
Related
Related products
Brainboxes

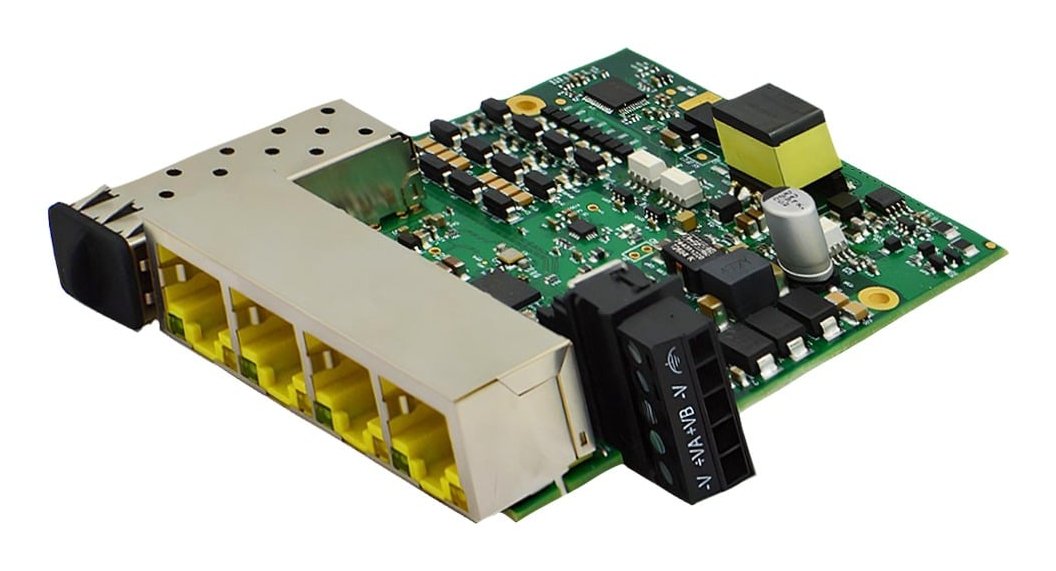

Brainboxes Embedded Industrial SFP 4xPort PoE+ Gigabit Ethernet Switch
Mfr. Part# SW-195
CA$316.99
CA$301.46
Brainboxes

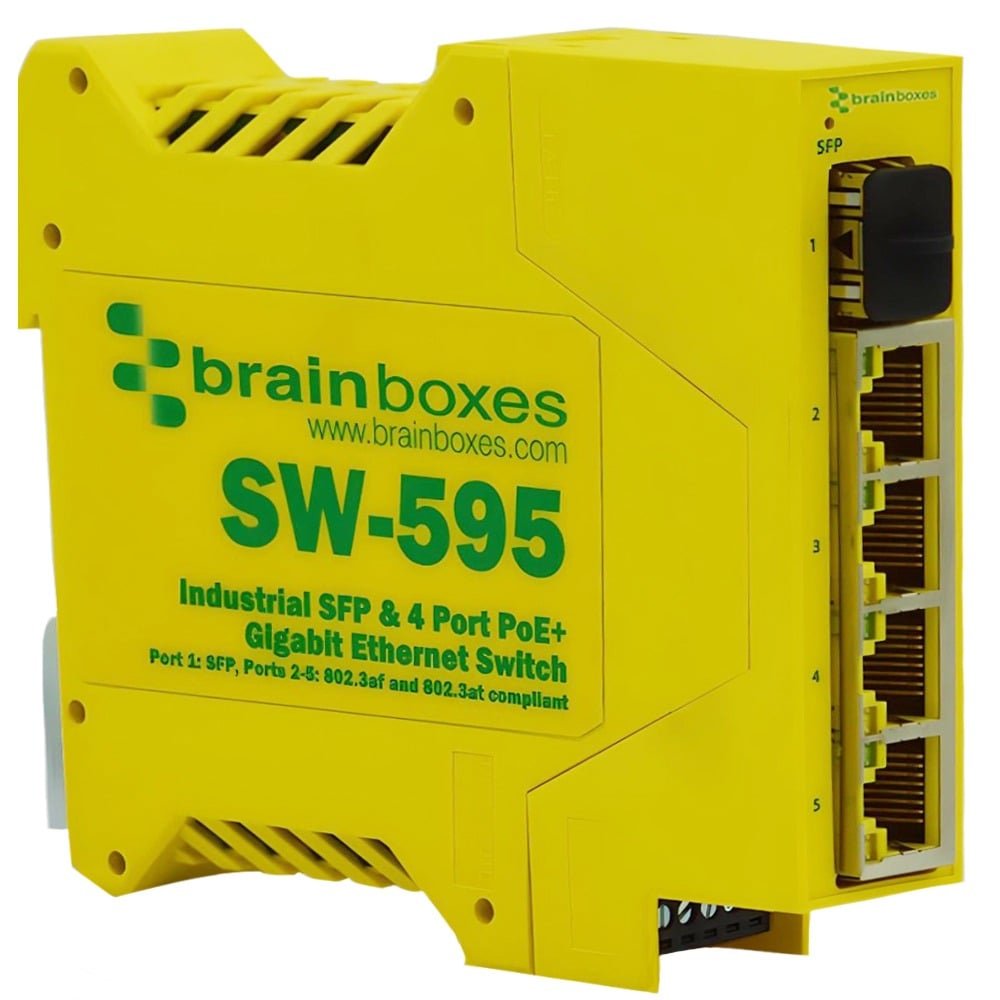

Brainboxes Industrial SFP + 4 Port PoE+ Gigabit Ethernet Switch
Mfr. Part# SW-595
CA$364.99
CA$347.70
ATEN

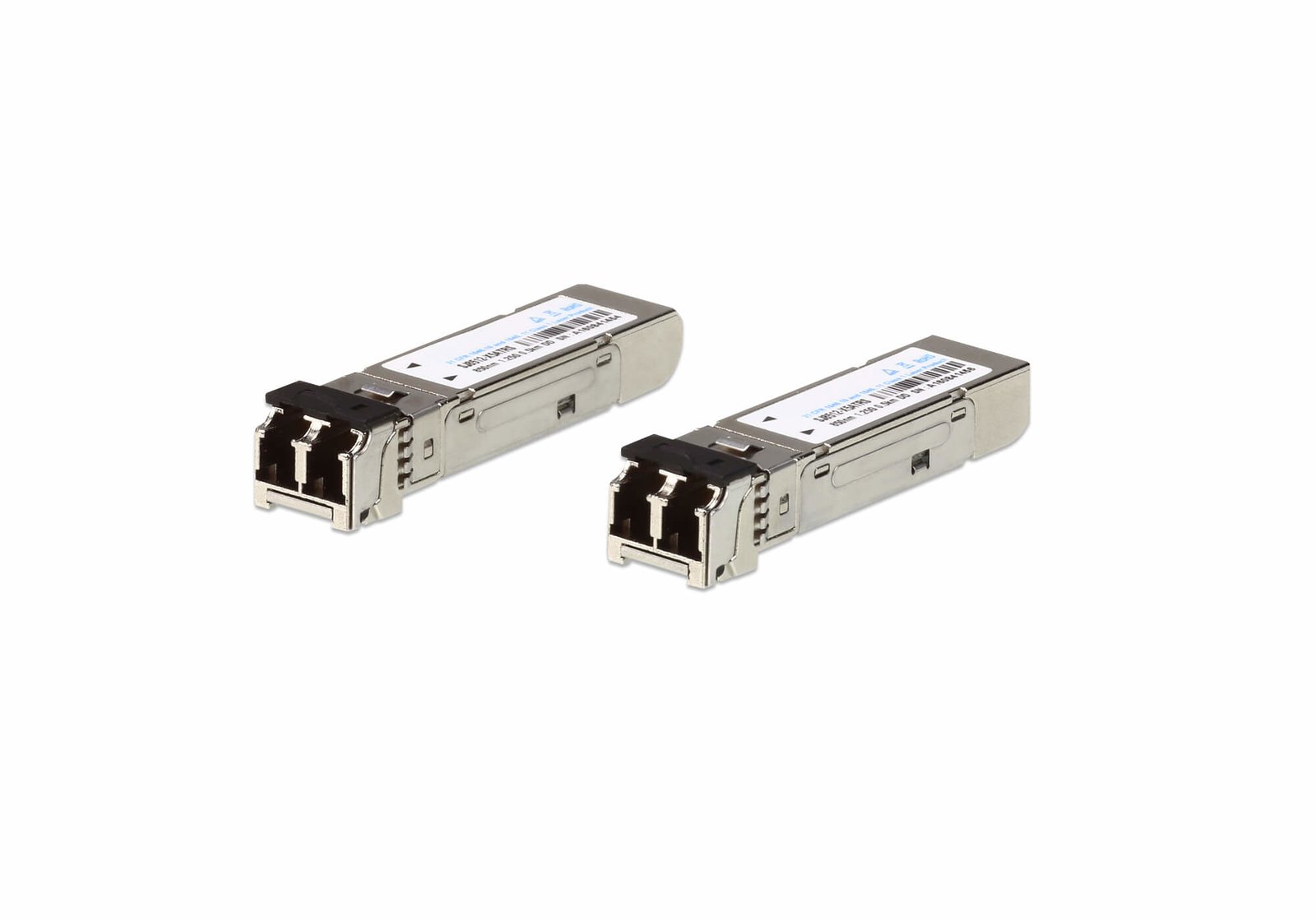

ATEN 2A-136G network transceiver module Fiber optic 1250 Mbit/s SFP 1300 nm
Mfr. Part# 2A-136G
CA$182.99
CA$174.30
ATEN

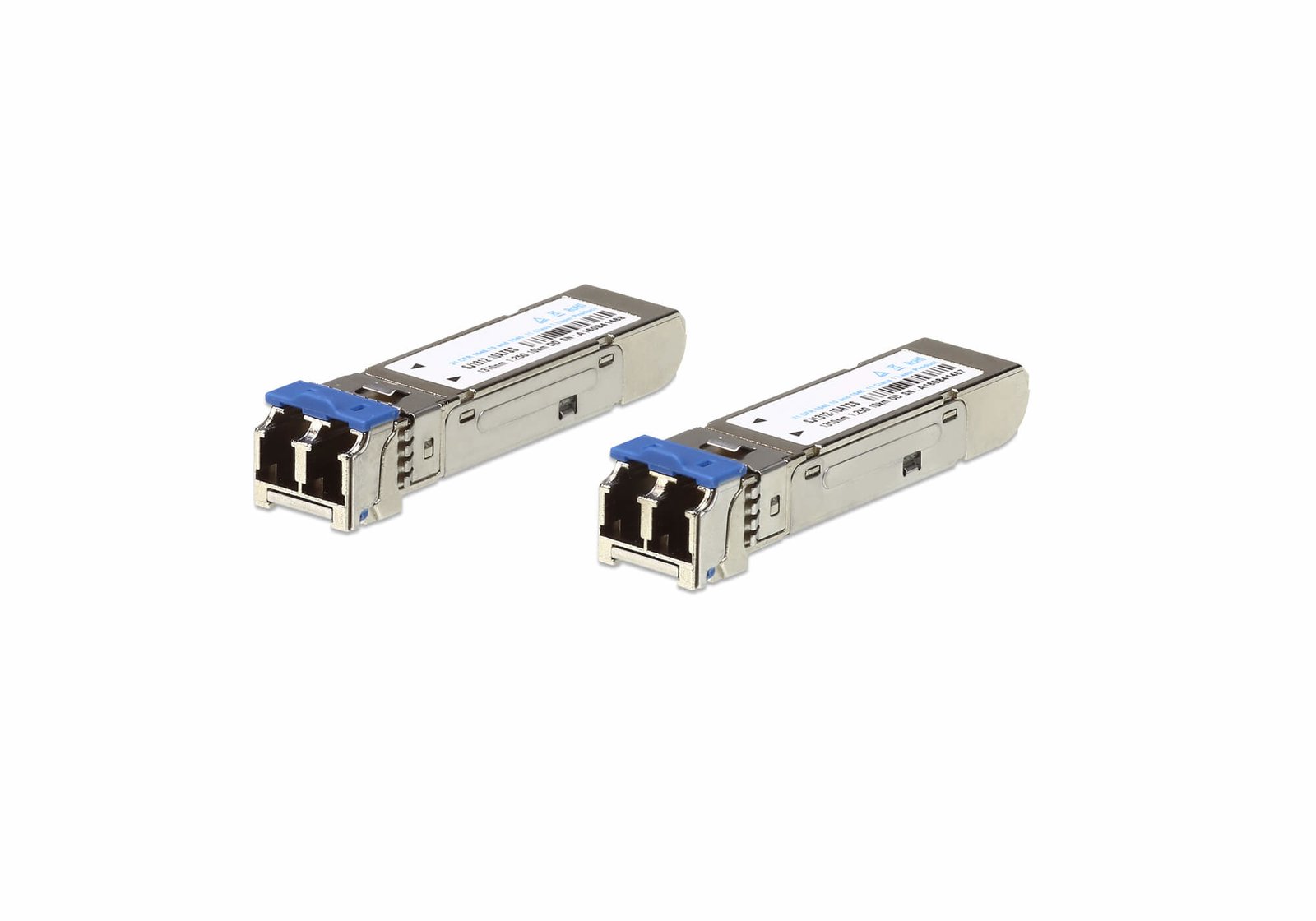

ATEN 2A-137G network transceiver module Fiber optic 1250 Mbit/s SFP 1310 nm
Mfr. Part# 2A-137G
CA$317.99
CA$303.32
Dell
DELL 407-BBOU network transceiver module 10000 Mbit/s SFP+ 850 nm
Mfr. Part# 407-BBOU
CA$65.99
CA$62.80
Dell

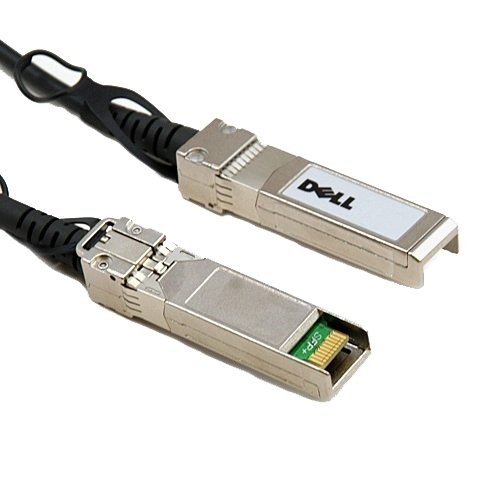

DELL 470-AAVK InfiniBand/fibre optic cable 0.5 m SFP+ Black
