/Brainboxes Industrial SFP + 4 Port PoE+ Gigabit Ethernet Switch
Brainboxes

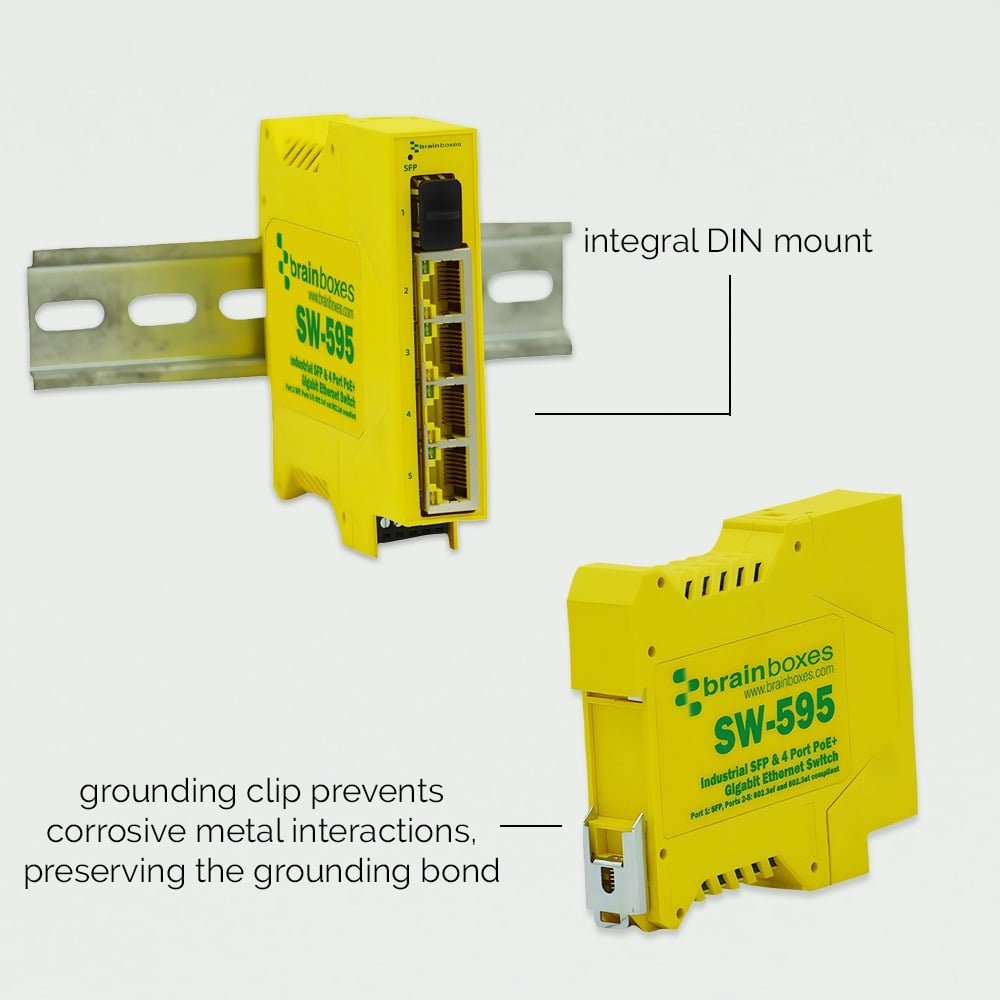

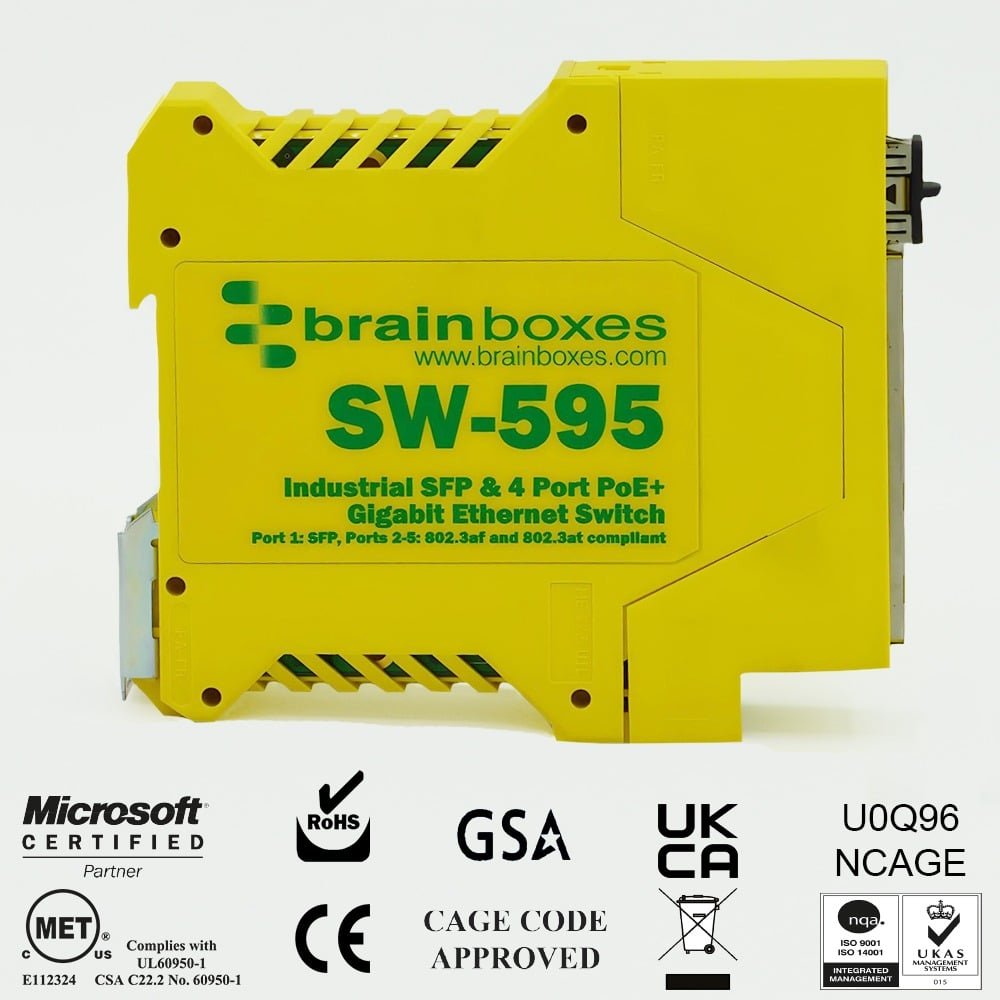

Brainboxes Industrial SFP + 4 Port PoE+ Gigabit Ethernet Switch SW-595
CA$364.99
Save 5%
CA$347.70
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details
PoE+ Industrial Gigabit SFP Ethernet switch.
Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.
Galvanically Isolated Ethernet brainboxes-SW-595-front-panel-ethernet-port-status-leds. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Compatible DIN rail power supply available: PW-301
Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.
Galvanically Isolated Ethernet brainboxes-SW-595-front-panel-ethernet-port-status-leds. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Compatible DIN rail power supply available: PW-301
Product Specifications
| Manufacturer | Brainboxes |
|---|---|
| Manufacturer Part Number | SW-595 |
| GTIN / Barcode | 0837324005080 |
| Brand Name | Brainboxes |
| Product Name | Brainboxes Industrial SFP + 4 Port PoE+ Gigabit Ethernet Switch |
| Mfr. Part Number | SW-595 |
|---|---|
| GTIN / Barcode | 0837324005080 |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 4 |
| SFP module slots quantity | 1 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transmission | |
| MAC address table | 1000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.448 MB |
| Design | |
| Form factor | DIN rail |
| Product colour | Yellow |
| DIN rail mounting | Yes |
| Performance | |
| Export Control Classification Number (ECCN) | 5A991.b |
| Power | |
| Power source | DC |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 44 - 57 V |
| Power consumption (max) | 5.3 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 90 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 115 mm |
| Depth | 100 mm |
| Height | 23 mm |
| Weight | 136 g |
| Packaging data | |
| Package width | 135 mm |
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 231 g |
| Certificates | |
| Compliance certificates | CE, UKCA, RoHS, REACH, WEEE |
| Logistics data | |
| Country of origin | United Kingdom |
| Harmonized System (HS) code | 851762 |
| Brand | Brainboxes |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Transceivers & Modules |
