/Brainboxes Industrial 4 Port 10/100 Ethernet Switch
Brainboxes
Brainboxes Industrial 4 Port 10/100 Ethernet Switch SW-504
CA$130.99
Save 5%
CA$124.97
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details

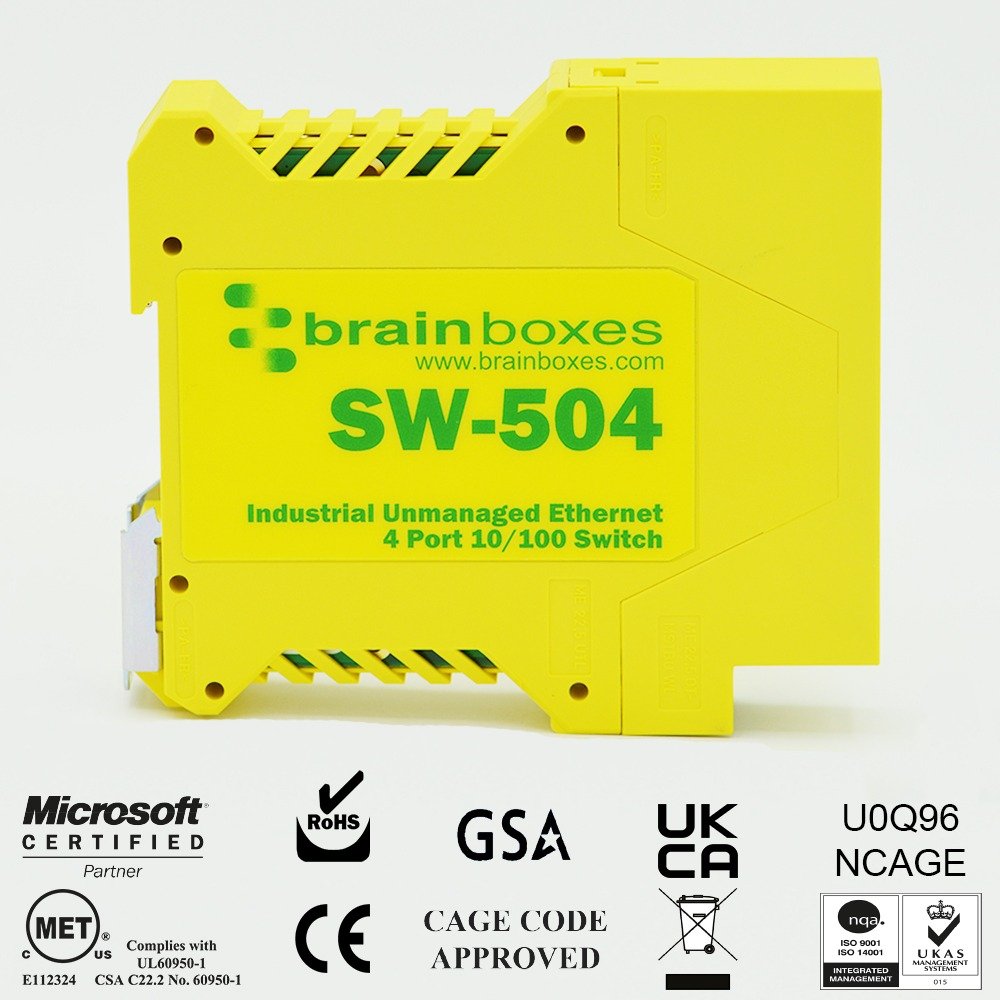

Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet brainboxes-SW-504-front-panel-ethernet-port-status-leds capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Product Specifications
| Manufacturer | Brainboxes |
|---|---|
| Manufacturer Part Number | SW-504 |
| GTIN / Barcode | 0837324009873 |
| Brand Name | Brainboxes |
| Product Name | Brainboxes Industrial 4 Port 10/100 Ethernet Switch |
| Mfr. Part Number | SW-504 |
|---|---|
| GTIN / Barcode | 0837324009873 |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| 10G support | No |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Data transmission | |
| MAC address table | 1000 entries |
| Jumbo frames support | No |
| Design | |
| Rack mounting | No |
| Form factor | DIN rail |
| Product colour | Yellow |
| International Protection (IP) code | IP20 |
| Performance | |
| Export Control Classification Number (ECCN) | 5A991.b |
| Power | |
| Power source | DC |
| DC input voltage | 5 - 30 V |
| Power consumption (typical) | 1.1 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |

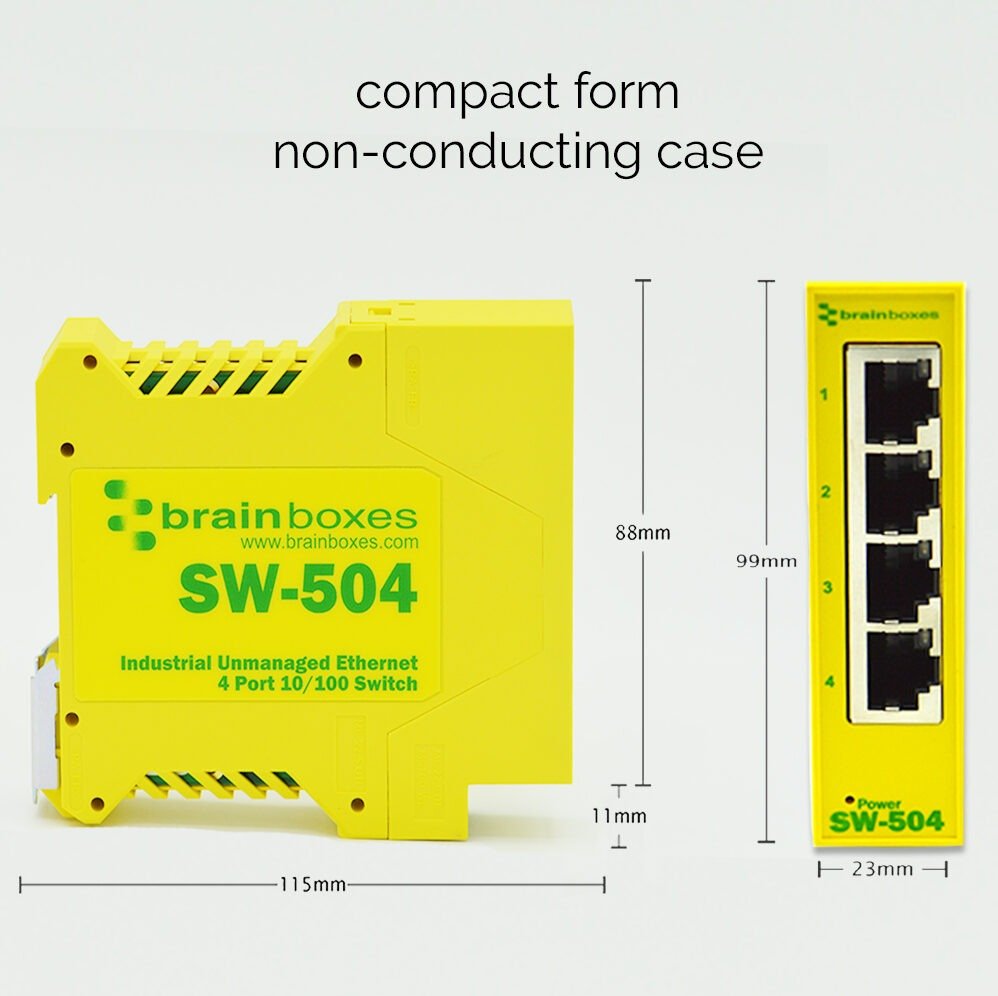

| Weight & dimensions | |
| Width | 118 mm |
| Depth | 100 mm |
| Height | 23 mm |
| Weight | 125 g |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 199 g |
| Logistics data | |
| Harmonized System (HS) code | 851762 |
| Brand | Brainboxes |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Network Switches |
