/Brainboxes Light Industrial 5 Port 10/100 Ethernet Switch
Brainboxes
Brainboxes Light Industrial 5 Port 10/100 Ethernet Switch SW-005
CA$93.99
Save 5%
CA$89.15
CAD
Prices shown in CAD. Taxes, duties and freight are quoted separately. Call 888-370-2261 for volume pricing.
- B2B Volume Pricing in CAD
- Purchase Orders Accepted for Approved Accounts
- Canada-Wide Business & Institutional Purchasing
- Secure Checkout & Reliable Canada-Wide Delivery
Product Details

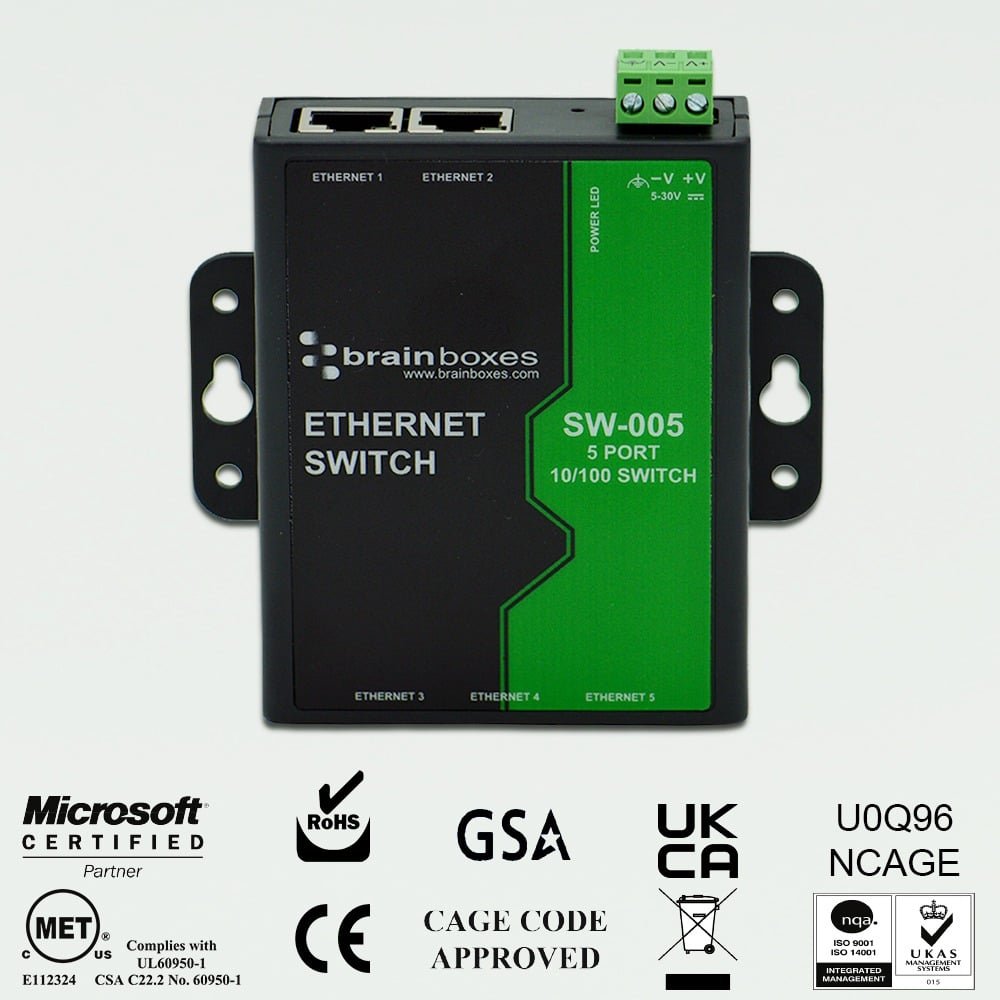

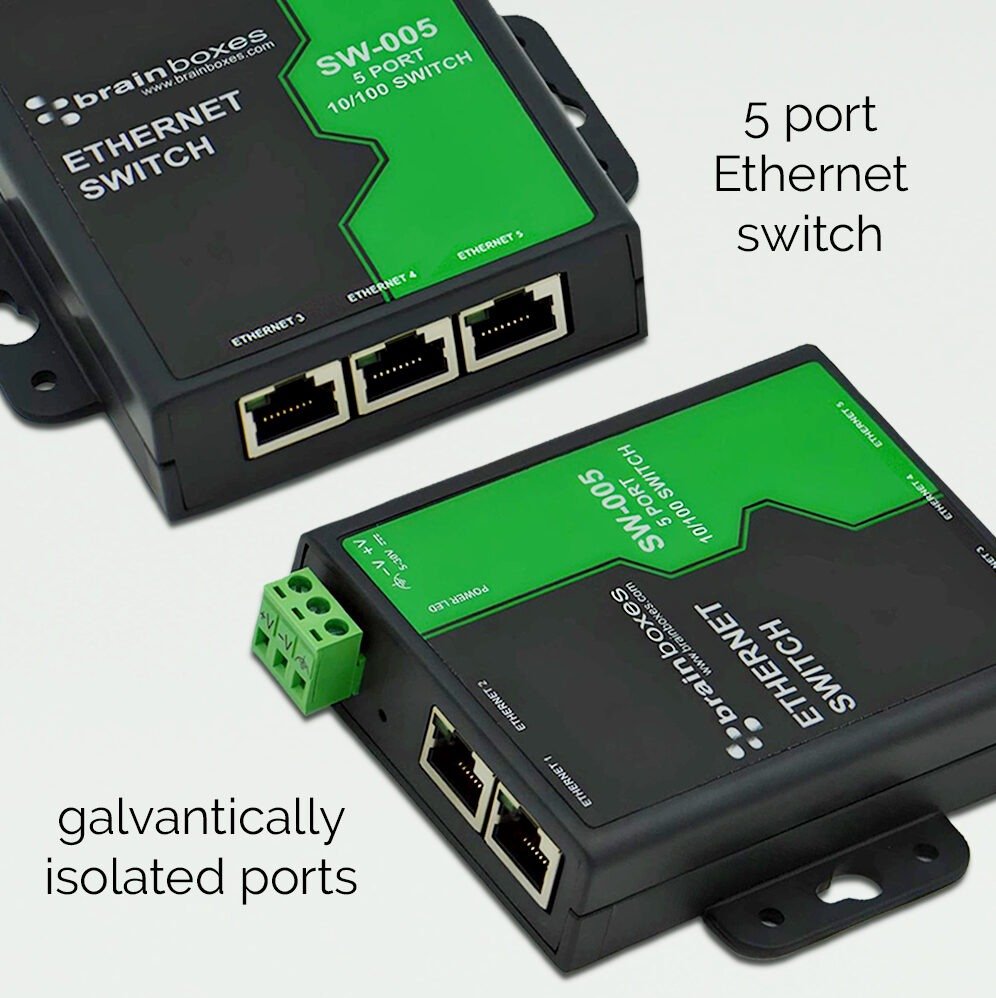

Light Industrial/Commercial Ethernet 5 Port unmanaged switch. Galvanically Isolated brainboxes-SW-005-front-panel-ethernet-port-status-leds. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, also includes DIN Rail mount accessory (MK-048)
Product Specifications
| Manufacturer | Brainboxes |
|---|---|
| Manufacturer Part Number | SW-005 |
| GTIN / Barcode | 0837324009866 |
| Brand Name | Brainboxes |
| Product Name | Brainboxes Light Industrial 5 Port 10/100 Ethernet Switch |
| Mfr. Part Number | SW-005 |
|---|---|
| GTIN / Barcode | 0837324009866 |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | Terminal block (3-pin) |
| Network | |
| 10G support | No |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Jumbo frames support | No |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Form factor | DIN rail |
| Product colour | Black, Green |
| Housing material | Polyamide |
| LED indicators | Activity, Link, Speed |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Performance | |
| Export Control Classification Number (ECCN) | 5A991.b |
| Power | |
| Power source | DC |
| DC input voltage | 5 - 30 V |
| Power consumption (max) | 1.1 W |
| Power consumption note | 1.1W Max: 220mA @+5VDC / 36mA @+30VDC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 100.8 mm |
| Depth | 106.6 mm |
| Height | 25.8 mm |
| Weight | 132 g |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 221 g |
| Certificates | |
| Certification | CE, WEEE, RoHS, AEO |
| Logistics data | |
| Harmonized System (HS) code | 851762 |
| Brand | Brainboxes |
| Availability | In Stock |
| Price Currency | CAD |
| Category | Network Switches |
