CRESTRON CONNECTED® V2 CERTIFIED Enhance your remote management experience with greater speed, security and flexibility with your Crestron Connected V2 certified display. This device is compatible with XiO Cloud® and other popular platforms for streamlined monitoring and management. Enjoy seamless backwards compatibility with systems that use Crestron Connected V1.0.
ALL-IN-ONE SOLUTION Perfect for conference rooms, huddle spaces and other collaborative environments, this bundle delivers the most useful items businesses need to get up and running with their wireless presentation display. You can quickly install the display with the included wall mount, while the included USB Wi-Fi plug-in module provides a robust and reliable wireless presentation experience.
Multiple Ways to Connect and Share Connect wirelessly through your network or directly to the display. Use the ViewBoard Cast™ screen sharing software along with the web-based myViewBoard® Display app to allow up to four participants (on-site and remote) to connect and share their content regardless of what OS platform they are using (Windows, MacOS, Chrome OS, Android, iOS). In addition, AirPlay, Miracast and the optional ViewBoard Cast button all offer wireless and software-less casting options.
AV Control System Interoperability These displays are Crestron Connected® as well as Extron and AMX certified for seamless integration. Network admins are always in control with the ability to send control signals such as on/off, switch inputs, push firmware and security updates, and get status from the display.
Centralized Device Control Manager For IT admins, it’s tough managing the hundreds of devices and displays that live on the network. Now with myViewBoard Manager, an easy-to-use web-based application, IT can securely set up, manage and maintain all of the displays from a centralized dashboard.
Superb and Stunning Picture Quality With 4K resolution, high brightness and 25% high haze anti-glare glass treatment, these displays deliver bright, clear and sharp images in any indoor environment.
Powerful Secured Embedded Platform This display can execute several tasks at once while providing smooth content playback without the need for a PC or media player. The embedded SoC provides PC-like performance and power to run apps, while hardened custom Android OS firmware protects the display from viruses and security breaches by preventing unknown sources to be installed on the system.
Flexible Installation With landscape or portrait mode options, a uniform bezel width, HDMI in and HDMI out for up to 9-screen tiling (ex 1x2, 2x2, 3x2, 4x2, 3x3, 1x9, etc.) without an external HDMI matrix, this display delivers versatile video wall configuration out-of-the-box.
Advanced Multi-Source Capability Picture in Picture (PiP) and Picture by Picture (PBP) options allow up to four independent sources to run at the same time.
Integrated Content Management System Enjoy a cloud-based 30-day trial service subscription from ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are. Works with optional ViewSonic Signage Manager CMS (SW-216) for local content push with perpetual license.
3-Year Limited Warranty Have peace of mind in the quality and reliability of your ViewSonic display—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty with onsite service.
Product Specifications
Manufacturer
ViewSonic
Manufacturer Part Number
CDE6530-E1
Brand Name
ViewSonic
Product Name

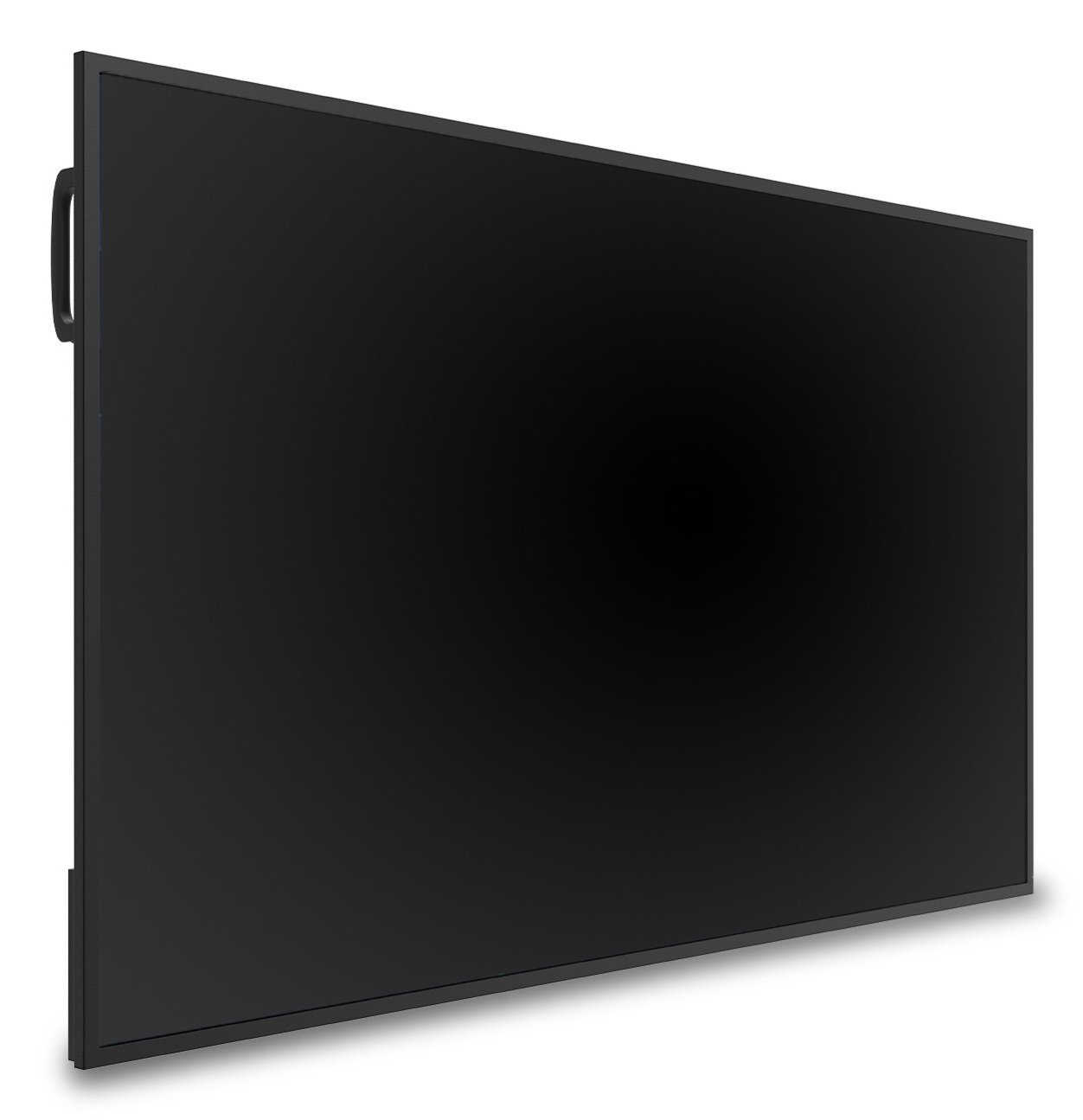

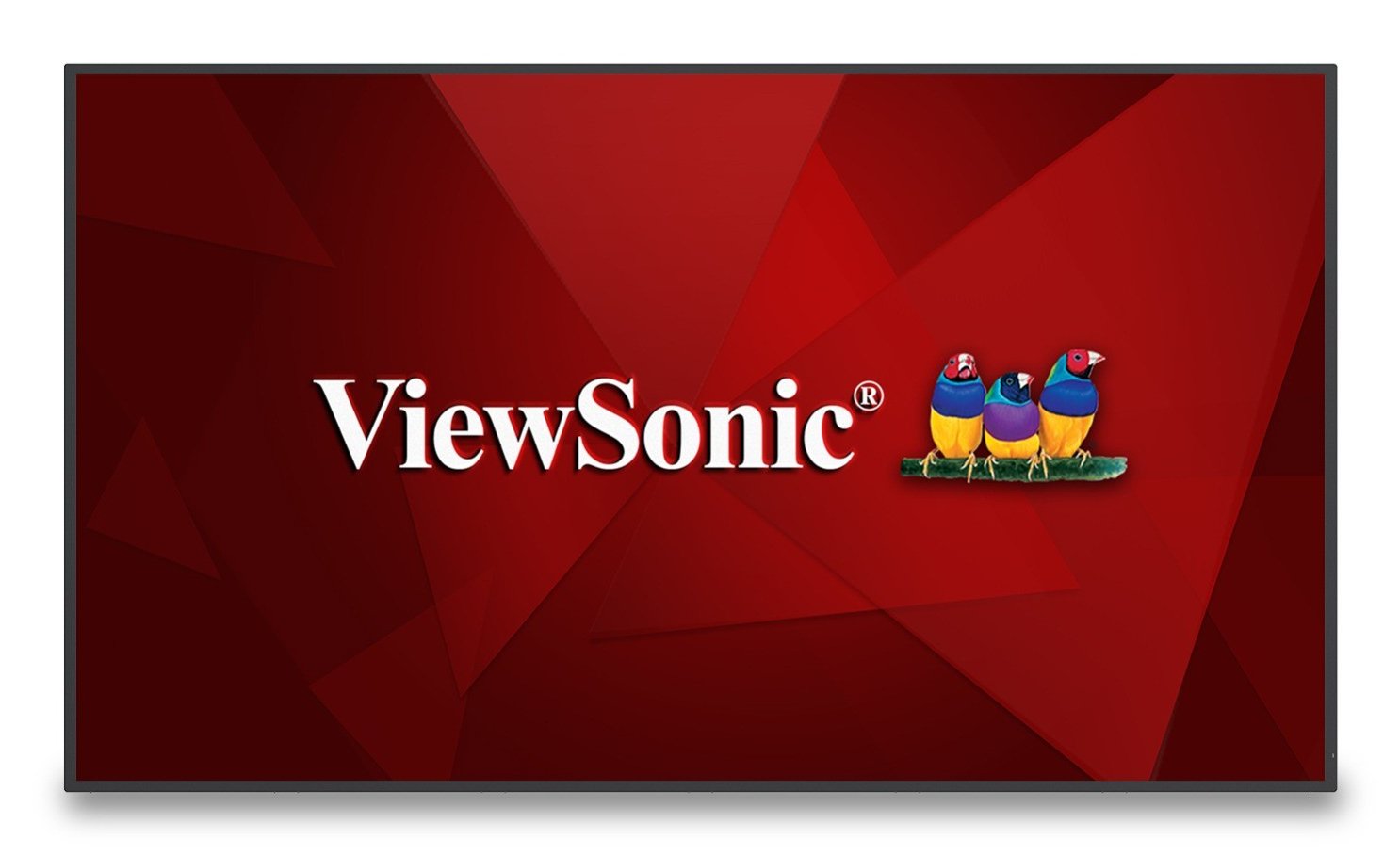

Viewsonic CDE6530-E1 Signage Display Digital signage flat panel 165.1 cm (65") LCD Wi-Fi 450 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7
Mfr. Part Number
CDE6530-E1
Display
Panel type
ADS
LED backlighting type
Direct-LED
Display diagonal
165.1 cm (65")
Display technology
LCD
Display resolution
3840 x 2160 pixels
Display brightness
450 cd/m²
HD type
4K Ultra HD
Touchscreen
No
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Contrast ratio (dynamic)
5000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Panel life
40000 h
Native refresh rate
60 Hz
Haze rate
25%
Surface hardness
3H
Ports & interfaces
HDMI ports quantity
3
HDMI version
2.1
HDMI input ports quantity
2
HDMI output ports quantity
1
DVI port
No
USB port
Yes
USB ports quantity
3
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type
Mini-USB A, USB Type-C
Ethernet LAN (RJ-45) ports
1
RS-232 interface
Yes
OPS module slot
Yes
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design
Digital signage flat panel
Placement supported
Indoor
Orientation
Horizontal/Vertical
Product colour
Black
Screen shape
Flat
VESA mounting
Yes
Panel mounting interface
600 x 400 mm
Bezel width (bottom)
1.5 cm
Bezel width (side)
1.5 cm
Bezel width (top)
1.5 cm
Anti-glare screen
Yes
Mounting type
Wall
Performance
Purpose
Universal
Operating hours (hours/days)
24/7
HDCP
Yes
HDCP version
2.2
Power
Power consumption (typical)
165 W
Power consumption (standby)
0.5 W
Power consumption (max)
335 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Computer system
Computer system
Yes
Computer system type
System on Chip (SoC)
Built-in processor
Yes
Processor frequency
1.5 GHz
Processor cores
4
Internal memory
4 GB
On-board graphics card model
ARM Mali-G52
Internal storage capacity
32 GB
Operating system installed
Android 11
Weight & dimensions
Display width
1463.3 mm
Display depth
81.6 mm
Display height
838.3 mm
Display weight
25.4 kg
Weight
25.4 kg
Packaging data
Package width
1628 mm
Package depth
208 mm
Package height
942 mm
Package weight
33.2 kg
Packaging content
Remote control included
Yes
Batteries included
Yes
Cables included
AC, HDMI, RS-232, USB Type-C
Mounting kit
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Certificates
Certification
cTUus, FCC, Energy Star 8.0, RoHS, Mexico NOM, Mexico Energy
