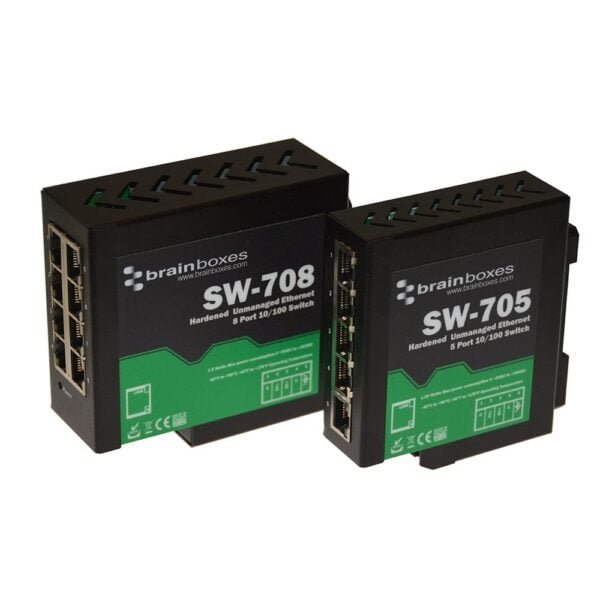

Name: Brainboxes Hardened Industrial 5 Port 10/100 Ethernet Switch SW-705
Brand: Brainboxes
SKU: SW-705
Price: 174.35 CAD
Availability: InStock

888-370-2261 info@itlogixs.ca 157 Edith Way NW, Calgary, AB, T3R 2B8

Home /Networking & Communications /Network Switches /Brainboxes Hardened Industrial 5 Port 10/100 Ethernet Switch

Product Details

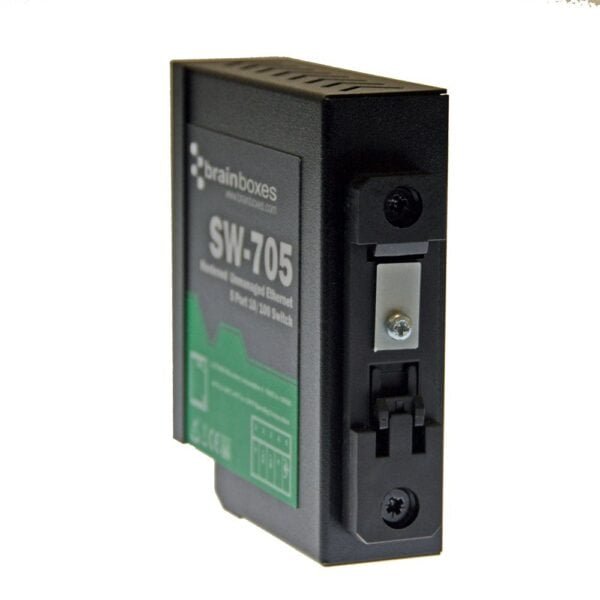

Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet brainboxes-SW-705-front-panel-ethernet-port-status-leds capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

Product Specifications

Manufacturer	Brainboxes
Manufacturer Part Number	SW-705
GTIN / Barcode	0837324004182
Brand Name	Brainboxes
Product Name	Brainboxes Hardened Industrial 5 Port 10/100 Ethernet Switch

Management features
Mfr. Part Number	SW-705
GTIN / Barcode	0837324004182
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	5
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support	No
Auto MDI/MDI-X	Yes
Auto-sensing	Yes
Data transmission
MAC address table	1000 entries
Jumbo frames support	No
Packet buffer memory	0.448 MB
Design
Form factor	DIN rail
Product colour	Black, Green
Housing material	Metal
LED indicators	Activity, Link
International Protection (IP) code	IP20
Wall mountable	Yes
DIN rail mounting	Yes
Performance
Export Control Classification Number (ECCN)	5A991.b
Power
Power source	DC
Redundant power supply (RPS) support	Yes
DC input voltage	5 - 30 V
Power consumption (max)	1.35 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-40 - 80 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	99 mm
Depth	95 mm
Height	29 mm
Weight	270 g
Packaging content
Quick start guide	Yes
Packaging data
Package width	160 mm
Package depth	135 mm
Package height	49 mm
Package weight	338 g
Certificates
Compliance certificates	CE, UKCA, RoHS, REACH, WEEE
Logistics data
Harmonized System (HS) code	851762
Brand	Brainboxes
Availability	In Stock
Price Currency	CAD
Category	Network Switches
